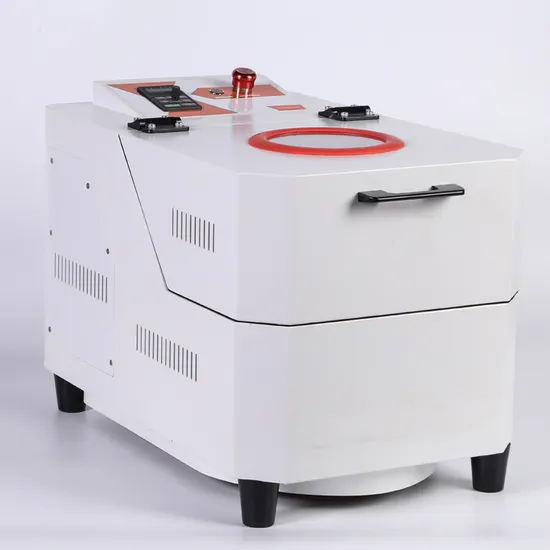

Planetary Ball Mill for Nano Powder Grinding with Stainless Steel Jars
Basic Info.
Model NO.
SQM-0.4L Planetary ball mill
Grinding Jar
Stainless Steel, Zirconia, Agate, Nylon, Ptef etc
Grinding Ball
Stainless Steel Balls, Zirconia Ball, Agate Ball
Type
Impact Crusher
Object
Coal
Drive
Electric
Crushing Degree
Intermediate Crusher
Crushing Style
Grinding and Impact
Principle
Roller Culling
Cutter Material
High-Speed Steel
Finished Surface
Gear Process
Compressive Strength (For Crushing)
250-300MPA
Tongs′ Features
Adjustable Tongs
After-sales Service
Online Technical Support and Service
Warranty
1 Year
Transport Package
Wooden Package
Specification
480x280x330mm
Trademark
Samy
Origin
Hunan
HS Code
8479820090
Production Capacity
2000PC Per Month
Packaging & Delivery
Package Size
48.00cm * 28.00cm * 33.00cm
Package Gross Weight
60.000kg
Product Description
Changsha Samy High Efficiency SQM-0.4L Planetary Ball Mill for Nano Powder Grinding and Grinding Iron Ore Mini type planetary ball millIntroduction: 1. SQM-0.4L planetary ball mill is an essential device for mixing, fine grinding, sample preparation, nano-material dispersion, new product development and small batch production of high-tech materials. This product is small in size, full in function, high in efficiency and low in noise. It is an ideal equipment for scientific research institutions, universities and enterprise laboratories to obtain micro-particle research samples (four samples can be obtained at the same time in each experiment). With the vacuum ball milling tank, the samples can be ground under vacuum. 2. The SQM-0.44L planetary ball mill is equipped with four ball milling tanks on the same turntable. When the turntable rotates, the ball milling tanks revolve around the turntable axis and rotate around their own axis, making planetary motion. Grinding balls in the tank collide with each other in high-speed motion, grinding and mixing samples. This product can grind and mix products with different particle sizes and materials by dry and wet methods. The minimum particle size of ground products can reach 0.1 micron (i.e. 1.0 × 10 mm-4). 3. Working mode: two or four ball milling tanks work at the same time Maximum sample loading: two-thirds of the volume of ball milling tanks. Feed tension: soil material ≤10 mm. Other materials ≤3 mm. Discharge particle size: the minimum can reach 0.1 um (i.e. 1.0 x 10 mm-4).
Products Parameters:
| Name | High Efficiency 0.4L Planetary Ball Mill for Nano Powder Grinding and grinding iron ore |
| Model | SQM-0.4L |
| Capacity | 100ml * 4=0.4L |
| Style | Planetary |
| Grinding ways | Dry grinding /wet grinding/High energy alloyed grinding/vacuum grinding/low temperature grinding for optional |
| Loading and unloading method | Intermittent type |
| Transmission mode | Gear drive |
| Speed control mode | Frequency conversion speed regulation |
| Control system | Frequency conversion control system |
| Speed rate(r/min) | 2:1 |
| The revolution speed(r/min) | 5-400 |
| Rotation speed(r/min) | 10-800 |
| Rated voltage(V) | 220 |
| Rated power(W) | 750 |
| Frequency(Hz) | 50 |
| Long run time(h) | 100 |
| Run time(h) | 0-9999 |
| Multi section speed setting | 7 section |
| Feed particle size(mm) | <15mm,Hard material <3mm |
| Grain size(μm) | 0.1μm,or 100nm |
| Ball material ratio | (2~10):1 |
| Net Weight | 90KG |
| Dimension | 66*44*52cm |
Related Other Models
| Model | Specification | Jars can take | Remarks | |
| Capacity | Qty(Piece) | |||
| SQM-1L | 1L | 50-250ml | 2/4 | with 50-100ml vacuum jar |
| SQM-2L | 2L | 50-500ml | 2/4 | with 50-250ml vacuum jar |
| SQM-4L | 4L | 50-1L | 2/4 | with 100-500ml vacuum jar |
| SQM-8L | 8L | 500-2L | 2/4 | with 250ml-1L vacuum jar |
| SQM-12L | 12L | 1L-3L | 2/4 | with 500ml-2L vacuum jar |
| SQM-16L | 16L | 1L-4L | 2/4 | with 500ml-3L vacuum jar |
| SQM-20L | 20L | 1L-5L | 2/4 | with 1L-4L vacuum jar |
| SQM-40L | 40L | 4L-10L | 2/4 | with 3L-5L vacuum jar |
| SQM-60L | 60L | 5L-15L | 2/4 | with 4L-10L vacuum jar |
| SQM-100L | 100L | 10L-25L | 2/4 | with 5L-20L vacuum jar |
Planetary ball mill specification:
| Model | Power | Motor power (KW) | Frequency power(KW) | Continuous running time(h) | Positive and reverse turn operation cycle selection(min) | Speed r/min | Noise≤db(A) | |
| The revolution (adjustable) | Rotation (adjustable) | |||||||
| SQM-0.4L | 220V 50HZ | 0.55 | 0.55 | 1-9999 | 1-9999 | 30-450 | 60-900 | <60db |
| SQM-1L | 220V 50HZ | 0.75 | 0.55 | 1-9999 | 1-9999 | 30-400 | 60-800 | <60db |
| SQM-2L | 220V 50HZ | 1.1 | 0.75 | 1-9999 | 1-9999 | 30-400 | 60-800 | <60db |
| SQM-4L | 220V 50HZ | 1.1 | 0.75 | 1-9999 | 1-9999 | 30-400 | 60-800 | <60db |
| SQM-8L | 220V 50HZ | 1.5 | 1.5 | 1-9999 | 1-9999 | 30-280 | 60-560 | <60db |
| SQM-12L | 380V 50HZ | 1.5 | 2.2 | 1-9999 | 1-9999 | 30-260 | 60-520 | <60db |
| SQM-16L | 380V 50HZ | 2.2 | 2.2 | 1-9999 | 1-9999 | 30-260 | 60-520 | <60db |
| SQM-20L | 380V 50HZ | 3.0 | 4 | 1-9999 | 1-9999 | 30-230 | 60-460 | <60db |
| SQM-40L | 380V 50HZ | 3.0 | 4 | 1-9999 | 1-9999 | 30-180 | 60-360 | <70db |
| SQM-60L | 380V 50HZ | 4.0 | 5.5 | 1-9999 | 1-9999 | 30-170 | 60-340 | <70db |
| SQM-100L | 380V 50HZ | 7.0 | 7.5 | 1-9999 | 1-9999 | 30-160 | 60-320 | <70db |
Products Image details:
Product Application:
Planetary ball mill jars and balls for selection:
Others Relative ball mill machines for your referrence:
Any further inquire or question,welcome to contact us Freely.
