Fruit and Farm Individual Chain Tensioning Fruit Bin Carrier Trailer
| US$4,500.00-6,000.00 | 1 Piece (MOQ) |
Basic Info.
Power Source
Hydraulic Turbine
Harvest method
Picking
Drive Type
Gear Drive
Transmission
Hard Shaft
Color
Yellow
Condition
New
Application Field
Agriculture, Forestry, Orchard
Overwidth
1.83m
Total Length 4 Bins
6.3m
Total Length 5bin
7.5m
Total Length 6bin
8.7m
Tyres
4 X 25X10.5X12" 8 Ply on 10"X12" Hot DIP Galv Rim
Stub Axles
2.5 Tonne Per Pair
Rocker Axlel Pivot
Diametre 75mm with 4 X HDPE Bushes
Bin Capacity
4, 5 or 6 X 700kg
Hydraulic Requirements
2 Pairs of Remotes; 2,200 Psi 4 Gpm (Min)
Transport Package
Packed by Iron Frame
Specification
2600mm*2100mm*1100mm
Origin
China
Production Capacity
4 PCS/ Month
Product Description
Rima tractor trailer fruit bin trailer hauler fruit and vegetable trailerProduct Description :

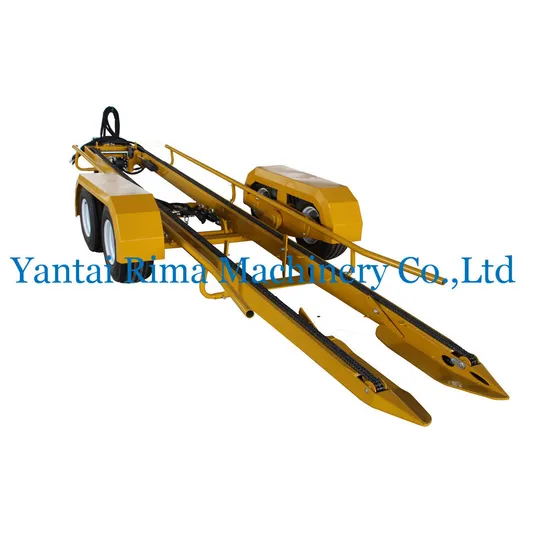

The Bin Runner is a very versatile trailer, capable of picking up, transporting smoothly and unloading bins fast and efficiently. 4, 5 or 6 bin models available.
To pick up bins in the orchard the Bin Runner is lowered and aligned so that the frame slides under the bin. Chains move the bin forwards while the Bin Runner is reversing.
Unloading is even easier. Bin Runner is lowered and then driven forward while the chains are moving backwards, gently unloading.
The new strong floor chains have a rounded top and do not damage or chafe the wood or plastic bins, HDPE nylon wear strips are under the chain.
