Construction Equipment Mini Used Hydraulic Mounted Cement Mixer Mobile Pump Price Small Portable Self Loading Second Hand 8 Cubic Meters Concrete Mixer Truck

Product Description

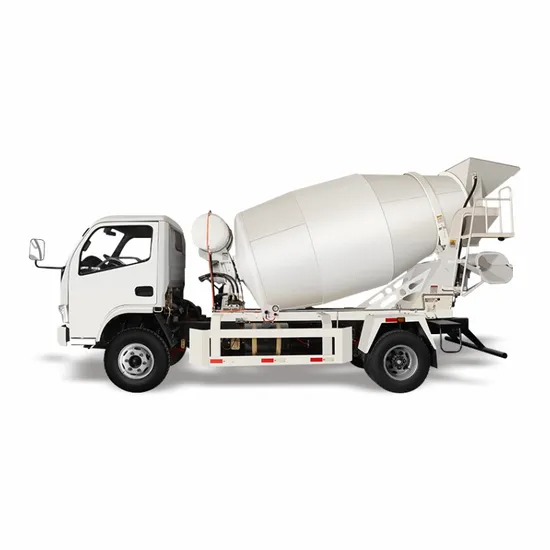

Hydraulic pump 8 cubic meters concrete mixer truck
The concrete mixer truck can be widely used in the construction of mines, tunnels, township, village, town highways, water conservancy projects in the tail end of large projects, short-term, small projects, micro, and small mixing plants, subways, national defense, and other projects.Product Parameters

Model	CMT-L400
Power	130HP-YUCHAI
Transmission	5-speed shifting
Wheelbase	3850mm
Tire	9.00-20
Speed Reducer	RJ230
Chassis emission standards	GB17691-2005, GB3847-2005
Outer Wheel Width	2360mm
Front and rear axles	153 rear axles
Dimension	7600*2360*3650mm
Tank thickness	5mm
Overall mass	7405KGS
Total mass	15595KGS

Adopting welding jigs for overall welding, making the tank more standard and stable operation. Internal and external sandblasting treatment, making the tank more wear-resistant and corrosion-resistant. Adopt thicker steel plate, longer service life.
Detailed PhotosMixing capacity: 2-10m3/batch
Mixing mechanism: the free mechanism, stirring according to the rotating movement of the mixing drum
Low mobility: The machine is usually fixed in place or pulled at a close distance.
Specialized in mixing slurry, mortar, and flexible concrete. Combined with trucks to transport concrete over long
Feeding: using an excavator
Discarding: the concrete mixture is discharged by reversing the mixing tank
Hydraulic motor: imported tank rotation motor, high torque, not easy to seep oil.
Speed reducer: brand reducer, effectively reduces the speed.
Rotary support: closed screw, avoiding the entry of sand, dust, and other debris.
Heat dissipation system: prevent the hydraulic oil tank temperature from being too high.
Pressure water tank: equipped with a pressure water tank that can fix pressure, stabilize pressure, replenish water, overflow, and clean the tank and body.
Tail discharge chute: The tail discharge chute is designed as a splicing and folding type with a large diameter slot, which is convenient and fast to unload.
Tail discharge chute: The tail discharge chute is designed as a splicing and folding type with a large diameter slot, which is convenient and fast to unload.
Tailwater pipe: The tailwater pipe is connected to the water tank and then connected to the tank body for washing the body.
Safety escalator: The tread pattern is an anti-slip design, which is convenient to go up and down for various safety operations.
Brand tires: brand tires are wear-resistant, anti-skid, and improve climbing power.
Pneumatic control assembly: built-in air pressure gauge and regulating valve to adjust the air pressure of the tank.
90-degree opening and closing doors: the maximum opening degree of the doors is 90 degrees, and it is loose and flexible to enter and exit the cab.
Cab: The cab has a sufficient sense of space, an overall gray tone, and a full sense of technology.
Center console: The instrument panel has a speedometer, tachometer, fuel gauge, pressure gauge, radio, and air conditioning buttons, making it easy for the driver to grasp the driving conditions of the vehicle.
Parking image: the whole car is equipped with a camera, and real-time monitoring to grasp the driving conditions.
Brand power: the use of brand engines, strong power, and attentive after-sales service.
Thickened tank: thickened material tank, strong and durable, not easy to rust.
Inlet: dry and wet mixing, large diameter funnel-like design, fast feeding, and efficiency.Packaging & ShippingPackage:
1 unit was packed into an iron frame and then packed with 5 layers of corrugated cartons. 4 strips reinforced the carton. the fix package guaranteed the machines were not damaged during transportation
Delivery detail:
Swift delivery, within 15-30 days after receiving the deposit Company Profile
FAQQ1. What can we do if there are problems with the products?
A: Our engineers will analyze the problem for you and find the best
solution. If problems happened within the guaranteed time, we can replace the components for you free of charge. We have dealers in some countries, for some technical problems which you can not solve by yourself.
Q2. What is the delivery time for your products?
A: Once we promise the delivery time, we will try our best to fulfill it. Special procedures such as emergency inventory will be used to maintain your uninterrupted supply of the products.
Q3. Is there any guarantee for your products
A: Most of our products have one year guarantee(for the main parts).
Q4. How can you control your product quality?
A: Quality is always considered the most important part of our manufacturing process. All of our products come under a strict quality control system from raw material inspection, component inspecting,semi-finished product inspecting, and performance test of finished products, to random inspection before delivery.
