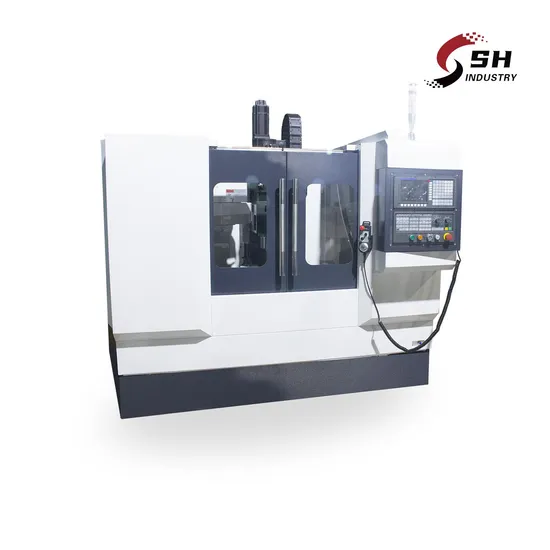

Vmc 1580 5 Axis CNC Milling Machine Vmc Machine Vertical Milling Machining Center

Vmc 1580 5 Axis CNC Milling Machine Vmc Machine Vertical Milling Machining Center

US$45,500.00-65,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
vmc1850
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table Size
1700X800mm
X Axis Travel
1500mm
Y Axis Travel
800mm
Z Axis Travel
700mm
Max. Worktable Load
1500kg
Max Spindle Speed
6000/8000rpm
Spindle Taper
Bt40/50
Main Motor Power
11/15kw
Cutting Feed Speed
1-10000mm/Min
Guide Rail Type
Linear Rail
Positioning Accuracy
±0.005
Repeat Positioning Accuracy
±0.003
Max Tool Diameter
φ78/300mm
Max.Tool Weight
8kg
Machine Weight
15000kg
Transport Package
Plywood Case
Specification
2400x2000x2550mm
Trademark
shenghuan
Origin
China
HS Code
8457101000
Production Capacity
2000

Packaging & Delivery

Package Size
240.00cm * 200.00cm * 255.00cm
Package Gross Weight
15000.000kg

Product Description

Product Description
Vmc 1580 5 Axis CNC Milling Machine Vmc Machine Vertical Milling Machining Center
Product Parameters
Main technical specifications Working table Table size 1700x800
T-slot 5-22-135
Max loading capacity of table 1500kg
Spindle Spindle taper BT40/50
Spindle speed 6000/8000rpm
Spindle power 11/15KW
Travel X,Y,Z axis travel 1500X800X700
Distance from spindle nose to table BT50-155: 155-855
BT40-150: 190-890
Distance from spindle center to vertical guide way surface 855mm
Feed Rapid movement speed X,Y,Z 30/30/30
Feed rate of cutting X,Y,Z 1~10000mm/min
Three axis X Y Z axis motor torque 10/10/15NM
X Y Z axis linear guide rail width 55mm
X Y Z lead screw size 50
X Y Z sliding block no 2004/4/4
Tools capacity Tools capacity 24T/16
Max tool weight 8kg
Max length φ78/300mm
Tool magazine type Arm type
Precision Positioning accuracy X/Y/Z ±0.005mm
Repeated positioning accuracyX/Y/Z ±0.003mm
Machine tool Machine size 2400x2000x2550mm
Casting material model HT300
Machine hardness 45-50rkc
Machine weight 15000kg

Vertical machining center use:
This VMC is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining. It can also finish many working procedures like milling, drilling, tapping, boring etc.
It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.
1.The machine body adopts alloy cast iron with secondary tempering to ensure the stability and reliability of the body and effectively prevent the deformation of the body
2. Linear Guide Rail X/Y/Z axis linear guide rail all uses the original Taiwan HIWIN heavy-duty roller straight-line guide rail,may satisfy the customer the speed, the precision high request.
3 .Taiwan-made spindle Unit,8000-12000rpm available
4. Taiwan OKADA 24 ATC
5.Reliable Control System:Fanuc,Siemens,Mitsubishi ,GSKVmc850 vertical machining center is suitable for producing metal product and parts in all shapes.
Features: High quality resin sand
Taiwan spindle
Automatic lubrication system
Chip conveyor at optional Standard configuration System:KND-1000M
16 Armless Tool Magazine
3 axis linear rail Optional configuration System: SYNTEC,SIEMENS,FANUC
24 Arm Tool Magazine
The 4th axis
Spindle oil cooling
Chip conveyor
Oil-water separator
12000rpm spindle unit
Realistic photos
Detailed Photos
Our Advantages
why not consult us once instead of searching ten times
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
