China Manufacturer of Window and Door Machine 5 Axis End Milling Machine for Aluminum Profile

Product Description

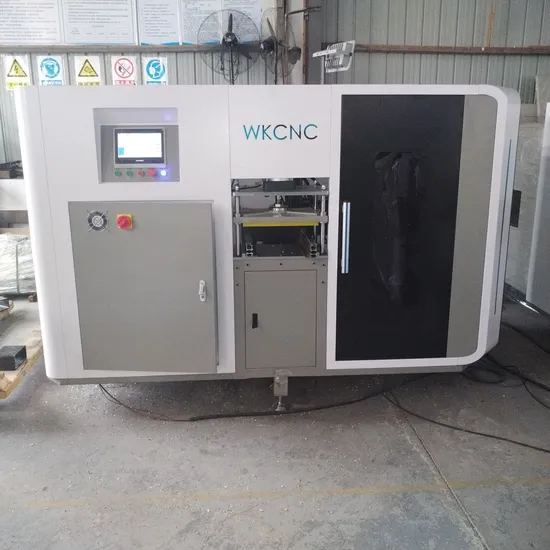

CNC End milling machine WDX5-CNC-350
Product Description
1. It is suitable for forming the end milling and step surface of various profiles (strengthen the middle stile, the system door and window frame fan is flush with the middle stile, the arc middle stile, the upper and lower rails of the sliding door and the frame are seamlessly connected) to adapt to the cooperation of different sections of profiles , the profile is fixed.
2. The system adopts CNC numerical control system, the CNC servo motor adjusts the tool to move up and down, left and right, the milling stroke is controllable, the feed speed is adjustable, and the tool retracts quickly. The processing range is large, the operation is convenient, and the production efficiency is high.

5 axis CNC Ending Milling Machine Parameter
Motor power	4 kw *2
Power supply	380V/50Hz (Can make according your voltage)
Air pressure	0.5~0.8MPa
Motor rotary speed	2800r/min
Saw blade specification	Φ350 and Φ300
Maximum tenon	100mm
Processing width*height	380mm*180mm
Overall dimension	2750*1350*1850mm
Weight about	1300kg

Detailed Photos
Cutting samples
Packaging & Shipping
Take the professional packaging of double-head saw cutting machine as an example:
1. Full film packaging of double-head saw cutting machine;
2. Anti-collision packaging edge;
3. Fumigation-free plywood boxes and pallets with iron strapping.
Company Profile
Shandong Weike CNC Machinery Co., Ltd. is a well-known manufacturer specializing in the research, development, production, and sales of aluminum doors, windows, and curtain wall equipment in China. It's the most large-scale and industrialized production enterprise in the industry.
We have three large production workshops, strong mechanical processing supporting capabilities, a high-quality scientific research team, and a high-tech production team. We have strong research and development strength, a perfect product system, and insist on independent innovation to continuously improve products in scientific and practical ways. The company has several offices in China, forming a one-stop comprehensive service system integrating product development, production, sales, and service.

Certifications
After Sales Service
1. 2-year warranty. Provide a full range of technical support for life

2. From Monday to Sunday, 9 a.m. to 18 p.m.Experienced technician to guarantee lifetime online support (by WhatsApp, WeChat,Email,Facebook,Instagram) in English,Chinese,Hindi,Bengali ,Urdu. So there is no need to worry about technical support due to the time difference.

3. Support local after-sales service. Up to 2024, we have provided on-site services to more than 50 countries and regions: Canada,Mexico, The United States, Ukraine, Russia, Italy, Poland, Spain, Brazil, Indonesia, India, Turkey, Thailand, Vietnam, Australia etc.
Exhibition
FAQ
Q: How do I install and run the machine?
A:Our technician installed the machine before shipping. For some small part installation, we will send a detailed training video and user's manual along with the machine. 95% of customers can learn by themselves.

Q: What can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try to fix the machine by yourself or someone else. We will respond within 24 hours, as quickly as we can, to solve it for you.
Q: What customized services have you provided?
A:WEIKE CNC, we are the true manufacturer; we have our own factory, therefore we could supply full OEM and ODM services.
Q: Are WEIKE CNC machines user-friendly?
A:Yes, our machines are designed with user-friendliness in mind. They come with intuitive software interfaces that are easy to learn and operate. We also provide comprehensive training and technical support to ensure our customers can make the most out of their machines

Q:What after-sales support does WEIKE CNC provide?
A:We understand the importance of reliable after-sales support. We provide comprehensive technical support, including remote assistance, video tutorials, and access to our knowledgeable support team.
