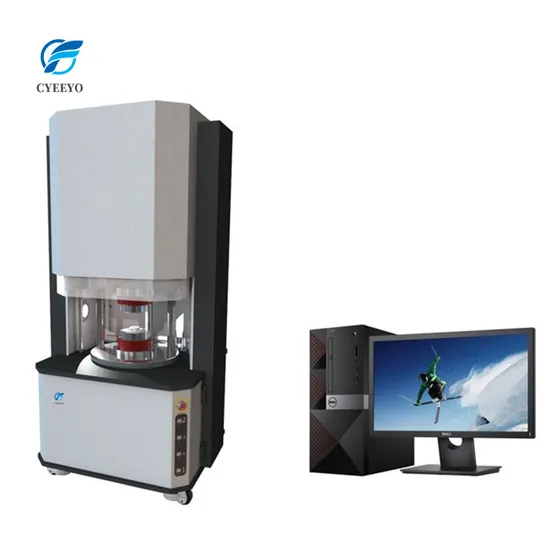

Rubber Testing Instrument Electronic No Rotor Rheometer

Product Description

Plastic Rubber Rheometer Testing Machine
Usage: It is suitable for testing the variation of shear modulus when raw rubber is vulcanized. The shear modulus is proportional to the crosslink density. So the results reflect the changes in the degree of crosslink during vulcanization. So that we can measure the parameters like curing speed, curing time and sulfur regeneration. Applicable standard: GB/T16584- Use Rotorless Curemeter to Test Vulcanization Characteristics ISO6502 Vulcanizing Machine Standard Data ASTMD5289 Rubber Properties Test Methods Features: 1. High precision sensor: 0 ~ 20N.m, Resolution: 0.001NM. 2. Control system: adopting computer control + Integrated circuit for data collection, storage, processing and printing test results and curve processing, the default time to extend or shorten the testing process, curve, history curve matching, and other functions. 3. The rotation system: Panasonic servo motor system + amplitude regulator 4. The temperature control system: adopting intelligent digital temperature control instrument, Automatism adjust PID control parameters in real time. 5. Data transmission: USB transmit. 6. Display mode: TY curemeter test software,computer monitor display. 7. Mold core: Cr6wv material, high strength and abrasion resistance. 8. Lighting system: LED light source, mold opening automatically turns on the light, mold closing automatically turns off the light. 9. Protection system: 5mm acrylic protective cover, which opens or closes with command automatically. Cover will close when power off to keep hands safe. Die closing must use the physical keys on the device side, in case of wrong operation. 10. Intelligent software: provide a powerful data query function, user-friendly design, convenient and fast operation. 11. Language: simplified Chinese, traditional Chinese, English, Russian. Technical parameter
