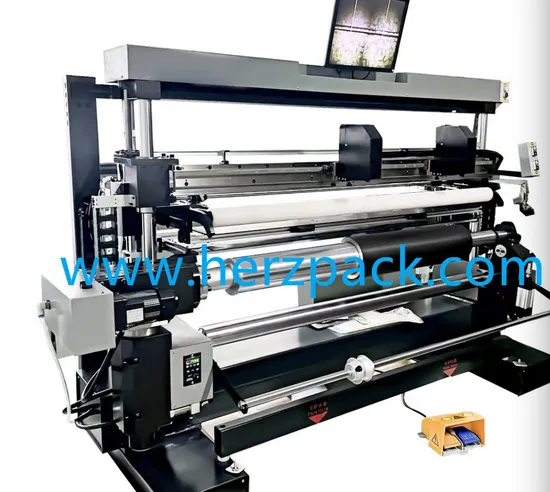

Flexo Printing Plate Sleeve Type Mounting Machine

Product Description

Plate moumting machine
Product Description
Plate mounting machine is the most important equipment of printing accessories. Its precision determines the printing precision. Our company (HERZPACK) focuses on the development of printing machine accessories, has a variety of high quality printing machine machines.In comparison, our company has the following advantages: The rack construction with the wallboard structure after high-strength holistic processing has great working stability and is durable in use; The 650-line color high-definition camera can reach 70-times amplification ratio, present clear images, possess high resolution ratio, and substantially improve the precision of the plate; The lifting of plate roller structure adopts the gear motor drive control, which largely facilitates the operations of the plate; The complete machine adopts the centralized control of circuits, which is convenient for operations and has relatively high degree of automation; The high-resolution liquid crystal display provides clear and bright images and effectively alleviates the visual fatigue of operating workers. Product specifications

Model	Max length (mm)	Max circumference (mm)	The equipment size(mm)			Weight (KG)
			L	W	H
HMP-320	320	800	920	600	1650	160
HMP-650	650	800	1050	600	1650	200
HMP-1000	1000	1200	1500	600	1650	280
HMP-1200	1200	1200	1700	600	1650	320
HMP-1300	1300	1200	1800	700	1650	340
HMP-1500	1500	1200	2100	700	1650	400
HMP-1800	1800	1200	2400	700	1650	460

Special orders with special size accepted.
label plate mounting machine
This type of machine is mainly used for rollers on label flexo printing machine (the weight of the rollers is not heavy and can be picked up by humans).The main features are simple structure and convenient operation.

Model	Max length	Max circumference	The machine size			Weight
			L	W	H
HSP-320	580mm	600mm	1100mm	880mm	1500mm	230KG

Special orders with special size accepted.
Servo control plate mounting machine
This model is mainly suitable for the plate roll version of the carton printing machine.
Characteristics :
1.Applying precision linear guide of Taiwan TBI and motor of Japan Yaskawa Servo to move the cameras right and left.
2.Using motor of Japan Yaskawa Servo to drive and position the printing roller/ cylinder.
3.Adopting Taiwan cameras and gear motor, PLC of Siemens.
4.After mounting the plate, you can check the
accuracy of it.

Model	Max length	Max circumference	The machine size			Weight
			L	W	H
HSP-2000	2000mm	2000mm	3150mm	1050mm	1850mm	650KG
