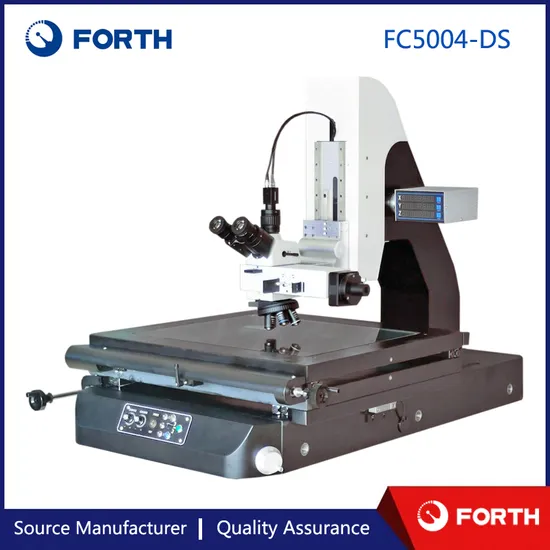

Electric Fine Tuning Microscope for Professional Laboratory Applications

Product Description

Intro
Motorized control for Zaxis(Minimum graduation up to 0.0005mm)
Standard for BF observation/Optional for BF&DF and DIC
Zaxis support FA and high measurement
Motorized or manual nosepiece
Support long range lens
Easy to operate on Micro scale object with high accuracy and precision
Infinity-corrected apochromat optical system Product Description Technical parameters

Model	FC-3002-DS	FC3003-DS	FC4003-DS	FC5004-DS
Model definition	DS:Z-axis motorized contro /S:Z-axis manual control
Measurement Size	300×200×150(mm)	300×300×150(mm)	400×300×150(mm)	500×400×150(mm)
Glass Size	360×260(mm)	330×330(mm)	460×360(mm)	560×460(mm)
Work Stage Size	456×366(mm)	456×466(mm)	556×466(mm)	706×606(mm)
Dimensions	780×580×1000	780×680×1000(mm)	950×680×1100(mm)	1080×880×1100(mm)
Weight	150 KG	180KG	250KG	300KG
Tube	Trinocular tube with TV Camera
Observation Mode	Standard for BF observation/Optional for BF&DF and DIC,Polorized/Support FA
Eyepieces	10X
Objectives	Plan semiapochromat Metallurgical Objectives for BF 5x,10x,20x,50x 100x(Optional)
Nosepiece	Manual Quintuple
Reflected Light	Adjustable aperture diaphragm and field diaphragm;Slot for filter and polarizer
Transmitted Light	LED White light/Optional for other color
Focus	Motorized
Linear Scale	XYZ0.0005mm or 0.0001mm
Accuracy	X-Y≤(2.5+0.02L)um Z≤(4+0.02L)um L:mm
Power	220v±10%/110v±10%(AC) 50Hz

Detailed Photos
Company Profile Welcome to Guangdong FORTH Science Technology Co., Ltd. Specializing in the sales and maintenance of a variety of instruments, including length measuring, optical, shape, material testing, and chemical analyzers for food and medicine.
Established in 2005, our headquarters is located in Guangzhou, a city known for economic development and excellent transportation infrastructure.
We work with globally renowned instrument brands like FISCHER, ZEISS, BRUKER, MITUTOYO, SHIMADZU, KEYENCE, FOSS, and STRUERS, ensuring high-precision instruments and exceptional user experience.
Our product range includes projectors, altimeters, surface roughness measurement instruments, color difference meters, hardness testers, spectrometers, and chromatographs.
Committed to customer satisfaction, we prioritize quality, cutting-edge products, and innovative solutions for superior quality, advanced technology, and exceptional service.
Join us at Guangdong FORTH Science Technology Co., Ltd. for a premium experience!
