High Torque Electric Servo Motor 24V 12V 48V Outboard Boat BLDC Brushless DC Motor with Brake/Reducer/Encoder/Handwheel/ Hall Sensor for Uav Model Airplane Fan

Product Description

42BLH DC Brushless MotorWe are a company specializing in the R&D, production and sales of brushless motors, stepper motors, DC motors. Through technical innovation and customization, we help you create outstanding application systems and provide flexible solutions for various industrial automation situations.Product Description
42BLH DC Brushless Motor:

Projects	Specifications
Winding Type	Star
Hall Effect Angle	120° electrical angle
Shaft Axial Play	0.025mm
Ambient Temperature	-20~ + 50°C
Ambient Humidity	<80%
Max. Radial Force	28N@20mm from the flange
Max. Axial Force	10N
Insulation Class	Class B
Dielectric Strength	one minute@500VAC
Insulation Resistance	100MΩMin.@500VDC

42BLH DC Brushless Motor Parameters:

Model	Rated Voltage	Rated Torque	Rated Speed	Rated Current	Rated Power	Peak Torque	Torque Constant	Body Length	Weight
	VDC	N.M	RPM	A	W	N.M	N.M/A	MM	KG
42BLH50-230	24	0.1	3000	1.8	31	0.3	0.056	50	0.35
42BLH50-215	24	0.1	1500	0.9	15	0.3	0.11	50	0.35
42BLH70-230	24	0.2	3000	3.4	62	0.6	0.056	70	0.55
42BLH70-215	24	0.2	1500	1.8	31	0.6	0.11	70	0.55
42BLH90-230	24	0.3	3000	5.2	94	0.9	0.056	90	0.65
42BLH90-215	24	0.3	1500	2.6	47	0.9	0.11	90	0.65

Note:Brake, reducer, encoder, handwheel and other devices can be installed.
Please feel free to contact us for more details.Detailed Photos

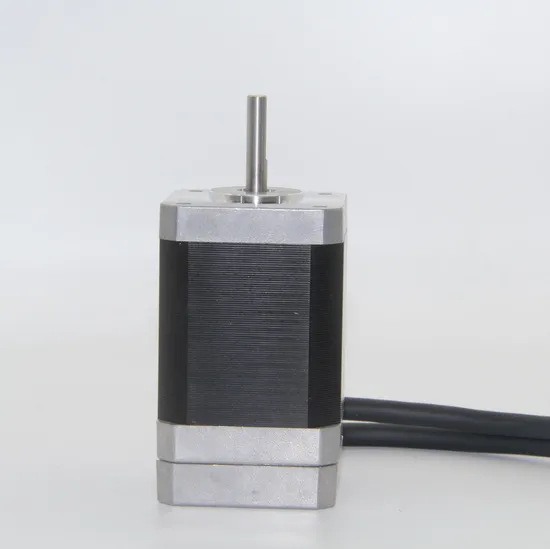

42BLH DC Brushless Motor Photos:Our Service:
1). General Service:

Quick Reply	All enquiry or email be replied in 12 hours, no delay for your business.
Professional Team	Questions about products will be replied professionally, exactly, best advice to you.
Short Lead time	Sample or small order sent in 7-15 days, bulk or customized order about 30 days.
Payment Choice	T/T, Western Union,, L/C, etc, easy for your business.
Before shipment	Take photos, send to customers for confirmation. Only confirmed, can be shipped out.
Language Choice	Besides English, you can use your own language by email, then we can translate it.

2). Customization Service:
Motor specification(no-load speed , voltage, torque , diameter, noise, life, testing) and shaft length can be tailor-made according to customer's requirements.
Other Product Parameters
42BL DC Brushless Motor Parameters:

Model	Rated Voltage	Rated Torque	Rated Speed	Rated Current	Rated Power	Peak Torque	Torque Constant	Body Length	Weight
	VDC	N.M	RPM	A	W	N.M	N.M/A	MM	KG
42BL50-240	24	0.08	4000	1.9	33	0.24	0.042	50	0.3
42BL50-260	24	0.08	6000	2.8	50	0.24	0.028	50	0.3
42BL60-240	24	0.12	4000	2.8	50	0.36	0.042	60	0.4
42BL60-260	24	0.12	6000	4.2	75	0.36	0.028	60	0.4
42BL70-240	24	0.11	4000	2.6	46	0.33	0.042	70	0.5
42BL70-260	24	0.11	6000	4	70	0.33	0.028	70	0.5
42BL90-240	24	0.14	4000	3.3	59	0.42	0.042	90	0.7
42BL90-260	24	0.14	6000	5	90	0.42	0.028	90	0.7

57BL Series brushless DC motor Parameters:

Model	Rated Voltage	Rated Torque	Rated Speed	Rated Current	Rated Power	Peak Torque	Torque Constant	Body Length	Weight
	VDC	N.M	RPM	A	W	N.M	N.M/A	MM	KG
57BL60-230	24	0.2	3000	3.5	62	0.6	0.057	60	0.6
57BL60-215	24	0.2	1500	1.7	31	0.6	0.118	60	0.6
57BL80-230	24	0.4	3000	7	126	1.2	0.057	81	1
57BL80-215	24	0.4	1500	3.5	62	1.2	0.114	81	1
57BL100-230	24	0.6	3000	10.4	188	1.8	0.057	102	1.4
57BL100-215	24	0.6	1500	5.2	94	1.8	0.115	102	1.4

57BLY Series brushless DC motor Parameters:

Model	Rated Voltage	Rated Torque	Rated Speed	Rated Current	Rated Power	Peak Torque	Torque Constant	Body Length	Weight
	VDC	N.M	RPM	A	W	N.M	N.M/A	MM	KG
57BLY 55-230	24	0.16	3000	2.8	50	0.48	0.057	55	0.46
57BLY 55-460	48	0.16	6000	2.8	100	0.48	0.057	55	0.46
57BLY 75-230	24	0.32	3000	5.6	100	0.96	0.057	75	0.75
57BLY 75-460	48	0.32	6000	5.6	200	0.96	0.057	75	0.75
57BLY 95-230	24	0.48	3000	8.4	150	1.44	0.057	95	1
57BLY 95-460	48	0.48	6000	8.4	300	1.44	0.057	95	1
57BLY 115-230	24	0.64	3000	11.2	200	1.92	0.057	115	1.2
57BLY 115-460	48	0.64	6000	11.2	400	1.92	0.057	115	1.2

60BL Series brushless DC motor Parameters:

Model	Rated Voltage	Rated Torque	Rated Speed	Rated Current	Rated Power	Peak Torque	Torque Constant	Body Length	Weight
	VDC	N.M	RPM	A	W	N.M	N.M/A	MM	KG
60BL80-230	24	0.32	3000	5.6	100	0.96	0.057	77	0.85
60BL80-215	24	0.32	1500	2.8	50	0.96	0.114	77	0.85
60BL100-230	24	0.64	3000	11.1	200	1.92	0.057	98	1.25
60BL100-215	24	0.64	1500	5.6	100	1.92	0.114	98	1.25
60BL120-430	48	0.96	3000	8.3	300	2.88	0.115	119	1.7
60BL120-415	48	0.96	1500	4.2	150	2.88	0.228	119	1.7
60BL140-430	48	1.28	3000	11.1	400	3.84	0.115	140	2.1
60BL140-415	48	1.28	1500	5.6	200	3.84	0.228	140	2.1

80BL Series DC brushless motor Parameters:

Model	Rated Voltage	Rated Torque	Rated Speed	Rated Current	Rated Power	Peak Torque	Torque Constant	Body Length	Weight
	VDC	N.M	RPM	A	W	1.2	N.M/A	MM	KG
80BL80-430	48	0.4	3000	3.5	126	1.2	0.114	80	2
80BL80-415	48	0.4	1500	1.8	63	2.4	0.232	80	2
80BL100-430	48	0.8	3000	7	251	2.4	0.114	100	2.4
80BL100-415	48	0.8	1500	3.5	126	4.2	0.23	100	2.4
80BL120-430	48	1.2	3000	10.5	377	3.6	0.114	120	2.8
80BL120-415	48	1.2	1500	5.2	188	3.6	0.23	120	2.8
80BL140-630	310	1.6	3000	2.2	502	4.8	0.73	140	3.2
80BL140-415	48	1.6	1500	7	251	4.8	0.23	140	3.2

86BL Series DC brushless motor Parameters:

Model	Rated Voltage	Rated Torque	Rated Speed	Rated Current	Rated Power	Peak Torque	Torque Constant	Body Length	Weight
	VDC	N.M	RPM	A	W	N.M	N.M/A	MM	KG
86BL90-430	48	0.7	3000	6.1	220	2.1	0.115	90	1.8
86BL90-415	48	0.7	1500	3	110	2.1	0.233	90	1.8
86BL115-430	48	1.4	3000	12.2	440	4.2	0.115	115	2.6
86BL115-415	48	1.4	1500	6.1	220	4.2	0.23	115	2.6
86BL140-630	310	2.1	3000	2.8	660	6.3	0.75	140	4
86BL140-615	310	2.1	1500	1.4	330	6.3	1.5	140	4
