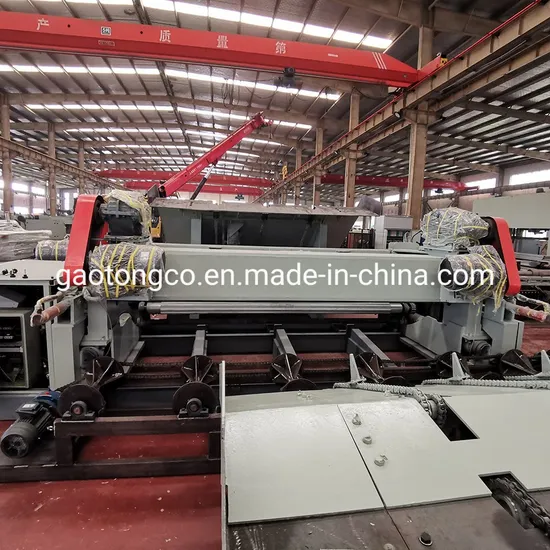

Gtco Automatic Wood High-Speed Rotary Cut Debarker Peeling Machine Continuous Working Wood Tree Remove Bark Machine
| US$5,000.00-15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GTWM001
Type
Log Debarker
Automatic
Automatic
Certification
CE, ISO
Condition
New
Peeling Rate
99%
Wood Loss Rate
8%
Wood Lenght Range
1300/2600mm
Power
35.5kw
Weight
8000kg
Dimension
4800*2200*1500mm
Voltage
380/415/440
After Sale Service
Online Technical Support and Training
Power of Double Roller
7.5kw*2
Power of Oil Pump
5.5kw
Max Opening
550mm
Length of Roller
7.5kw*2
Feature
Heavy Duty
Transport Package
in Nude
Specification
2.6m
Trademark
GTCO
Origin
China
HS Code
8439
Production Capacity
2/Day
Packaging & Delivery
Package Size
5000.00cm * 3000.00cm * 160.00cm
Package Gross Weight
5000.000kg
Product Description
GTCO Automatic Wood High-Speed Rotary cut Debarker Peeling Machine Continuous Working Wood Tree Remove Bark Machine Product Parameters| LOG DEBARKER | ||
| Model | LDP2700-550 | LD1500mm-550 |
| Max Length of log | 2600mm | 1300mm |
| Max Diameter of log | 550mm | 600mm |
| Min Diameter of log | 80mm | 80mm |
| Speed | 45m/min | 45m/min |
| Blade size | 2700*180*16mm | 1500*160*13mm |
| Total Power (24KW ) | Double Roller Motor Φ150mm ,11KW Single Roller Motor Φ150mm , 7.5KW Hydraulic Motor 5.5KW | Double RollerΦ200mm/ Motor ,11KW Single RollerΦ180mm/ Motor ,7.5KW Hydraulic Motor , 5.5KW |
| Overall size | 5200*2200*1100mm | 3500*2250*1450mm |
| Weight | About 5000KGS | About 3500KG |
Detailed Photos
Packaging & Shipping
Related Products
Our Advantages
pre-sale service:1) Listen to customer needs2) Provide free preliminary machine design plan and flow chart,choose and supply the most reasonable configuration equipment;3) Support remote meetings and visit factory remotely;4)Offer the professional advice to customer to confirm the final selection5) Support site visits to factory;In-sale service1) All equipment is qualified for installation and commissioning before leaving the factory; supports remote video quality inspection;2) The disassembly and packaging process of all machines before leaving the factory, providing photos, videos, and annotations;3) Online or offline free training of buyers' operators (China)4) Assist buyers to install and debug equipment (overseas)After-sales service1) 7*24 hours online service; remote real-time video resolution;2) During the first installation and commissioning process, problems encountered during normal operation should be solved in time;3) Periodic process inspection and use effect, and timely suggestions for machine maintenance;4) Lifetime free technical guidance5) Update the latest industry information in a timely manner.
