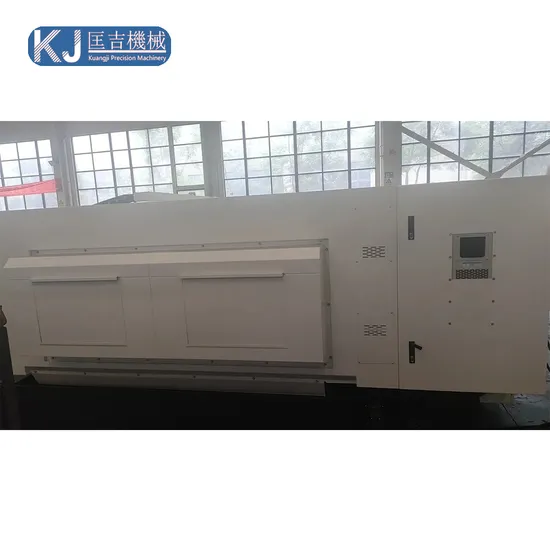

Segmented Variable Speed CNC Lathe Cknc-6163 Cknc-6180 Cknc-61100

Product Description

First, CKNC-6180 gear box three frequency conversion gear in the endless variable speed CNC lathe technical characteristics
Machine tool features:
The lathe bed foot castings are made of resin sand castings, and after two artificial aging treatment, good stability, high strength, the accuracy is stable and reliable.
The guide rail of the machine tool is precision grinding after super audio quenching, and the accuracy and accuracy retention are good.
This machine tool adopts a large drag plate, so that the rigidity of the drag plate is better, and the cutting is more stable and powerful.
The machine spindle through hole ¢105mm, three point support, four bearings of high rigidity spindle system, the absolute temperature rise is less than 25°.
The main shaft selected by this machine tool, the important parts are strengthened treatment, using the famous brand P5 spindle special bearings, the whole spindle is assembled under constant temperature conditions, all need to pass the computer balance correction and running test, so that the whole spindle has a long service life and high reliability.
The ball screws of the XZ axis drive of this machine tool all adopt C3 level single nut pre-tightening ball screws provided by professional supporting manufacturers. The bearings at both ends of the ball screws are imported P4 level 60° contact Angle pairing combination ball screw special bearings, and the two axis ball screws are pre-stretched, connected by flexible coupling and feed servo motor, with strong transmission rigidity and stable and reliable accuracy.
The lubrication system of the machine tool adopts the automatic centralized oil supply lubrication system, which can ensure that any lubricating part is fully lubricated.
2. Use:
This CNC lathe is our company using advanced design ideas and engineering technology for you carefully designed and manufactured high-quality, high-precision, high-performance technology-intensive products, with good rigidity, high precision, low noise, large processing range, easy operation and maintenance, reasonable price and other advantages. The machine tool is widely used, with the use of electric tool holder, can realize automatic continuous disc, shaft, thread, cone and other parts of the turning, as well as drilling, reaming, reaming and other processing.
Two, CKNC-6180 gear box three frequency conversion in the main technical parameters of non-polar variable speed CNC lathe

	Projects	Parameters
Scope of work	Maximum turning diameter on bed body	¢800mm
	Maximum turning diameter through the skateboard	¢480 mm
	Maximum center distance	1500/2000mm
	X axis (lateral) maximum stroke	450 mm
	Rail width	600 mm integral cast floor bed
	X/Z direction ball screw	3210/6310
	Fast move	X to 4m/min Z to 8m/min
	Machining accuracy	IT6-IT7
Spindle	Spindle head type	C-11
	Spindle inner hole taper/spindle through hole	Metric 1:20/φ105
	Spindle speed	Three speed frequency conversion, gearless speed change: 45-125rpm; 110-350 rpm; 290-950 rpm
	Chuck Dimensions	Hand chuck ¢320 mm
Accuracy	Positioning accuracy	X axis (transverse) ≤ 0.032mm
		Z-axis (longitudinal) ≤ 0.05mm
	Repeated positioning accuracy	X axis (transverse) ≤0.009mm
		Z-axis (longitudinal) ≤ 0.018mm
Tool rest	Form	Four-station electric tool holder 300X300
Motor	Main motor power	11KW
	X/Z axis motor power	15NM/27NM

Note: Overall dimensions: 1500-5190x2050x2600 Net weight: 5600Kg
Dimensions: 2000-5690x2050x1850 Net weight: 6600kg CKNC-6180 gear box three speed variable speed CNC lathe standard configuration list and brand

NO	Name	Specification or model number	Manufacturer/brand
1	Control system	YI-980TDi complete set	Yunyi
2	X-axis screw	3210	North/Binzhou
3	Z-axis screw	6310	North/Binzhou
4	Main motor	11KW	Domestic brand name
5	X/Z direction servo motor	15/27NM	Cloud One
6	Couplings		Domestic
7	Spindle bearing		Harbin Hashaft/Wafangdian
8	Chuck	¢320mm manual	multiring
9	Electric knife holder	Four-station 30 by 30	Yasing
10	Electrical control elements		Delixi
11	Automatic lubricant system		Domestic
12	Electric cooling pump		Domestic
13	Hand pulse		Shenyang/Changchun
14	Work Lights	24V	Made in China
15	Transformer		Domestic
16	Double door guard	Standard
17	Center rack (optional)		Cloud One Homemade
18	Knife heel holder (optional)		Yun Yi Homemade
19	Safety lock		Cloud One Homemade

Fourth, CKNC-6180 three-speed variable speed CNC lathe accessories and technical documents list

Serial Number	Name	Quantity	Remarks
1	320 three-jaw chuck	One set
3	Double-ended wrench	One set
4	Allen wrench	One set
5	Shock absorbing pad iron	A set of
6	Screwdriver	One set
7	Factory Certificate	One copy
8	Packing list	One copy
9	Operating instructions	Two copies
10	Programming instructions	Two copies	One electronic document

5. Optional non-standard configuration list (extra price)

Serial Number	Name	Specification/model	Manufacturer/brand
1	Hydraulic chuck	Domestic hollow
		Domestic Zhongshi
		Taiwan Zhongshi
		Taiwan Zhongshi
2	Six station electric knife holder
3	Numerical control system	YNYJ-YJ980TDi	Yunnan One Machine
		M70B	Mitsubishi, Japan
		OI TF	Japanese Fanacol
		808D	Siemens Germany
		HNC-21T3	Huazhong, Wuhan

Six, CKNC-6180 gear box three frequency conversion within the endless variable speed CNC lathe installation, commissioning and acceptance training table
Installation and debugging Before the machine tool arrives at the destination, the buyer shall prepare the foundation installation and secondary grouting in advance (the seller shall provide the foundation drawings), so as not to have a significant impact on the accuracy of the machine tool.
2. After the machine arrives at the destination, the buyer shall unload and place the machine by himself. Party B shall place the machine tool in position on the adjustable pad iron. If the machine tool needs grouting foundation, the buyer shall pour the foundation well before the machine tool is in position.
3, before the commissioning personnel to go, the user needs to complete the preparatory work of three-phase power supply, three-phase four-core cable, compressed air source, and provide the above cable and gas pipe into the machine tool standard interface, for details, see "New Customer Notice".
4. After the machine tool is transported to the buyer, the two sides will count according to the contract quantity and packing list, and the user will sign on the list for confirmation after the inventory is completed. After the inventory is completed, the seller will carry out installation and debugging, and the customer will sign and confirm after the debugging is completed. Packing list and acceptance inspection of the machine in two copies, one copy of the user to keep, the other by the service personnel back to the company, and stored in the equipment file.
5. The service personnel designated by the seller shall be responsible for debugging.
Machine acceptance
1, the acceptance of machine tools is divided into two times: pre-acceptance and final acceptance.
2, the pre-acceptance in the seller's factory, machine acceptance of the technical requirements according to the technical contract of equipment acceptance accuracy table execution, if there is a special agreement can be according to the sample agreed by the two sides for test cutting inspection, and to achieve the processing accuracy and process capacity agreed by the two sides.
3, the final acceptance in the user factory, by the seller sent for installation and commissioning, in principle only to test the processing accuracy; If the buyer has the corresponding hardware and software environment and facilities, our company can be accepted according to the equipment acceptance accuracy table of the technical contract.
4. The test pieces, cutting tools and special fixtures required for sample cutting shall be provided by the buyer, except for special agreements.
5, acceptance related matters:
1, acceptance standards refer to the technical contract of equipment inspection accuracy table
2, the acceptance of accessories, acceptance standards refer to the technical contract of the random attachment table
3, acceptance, confirmed by the buyer, fill in the "Machine Acceptance Certificate"
6, the precision indicators of the machine tool shall be inspected according to the precision inspection table of the technical contract. If the buyer disputes the test results, the buyer can prepare the testing equipment and designate a national certification testing center for reinspection. In case of any dispute over the test results, the Buyer may prepare the testing equipment and appoint a national certified testing center to conduct the retest. If the test results are in conformity with the technical contract, the expenses incurred during the test period shall be borne by the Buyer. Before the test, the buyer must seal up and keep the machine tool. If the buyer starts the machine and uses it, it shall be regarded as having passed the acceptance.
Vii. Lubrication system of machine tool
Lubrication of moving parts
The machine adopts centralized automatic lubrication station for multi-point lubrication of the moving parts of the machine tool. Each lubrication point is used with the lubrication check valve to ensure that the moving parts of the machine tool can maintain good lubrication.
Before the installation and commissioning of the machine tool is completed and put into use, our company requires users to run the lubrication pump and carefully check each lubrication point to ensure that the whole lubricating oil road is smooth before using the machine tool.
Lubrication of rotating parts
The rotating parts of the machine tool such as the spindle and the ball screw in the feed system, etc., of which each bearing of our factory has used special grease in the production, which can be used for a long time
Keep lubricated, the user does not need to add and replace.
Grease selection

Lubrication site		Name	Capacity	Lubricating oil viscosity	Remarks
Centralized lubrication system	Two axis lead screw lubrication and sliding guide	Rail oil	6L	ISO VG68	Supplied according to the oil level alarm signal set by the machine
	Recommended brand (optional)	SHELL (SHELL) brand: SHELL TONNA T68
		Great Wall brand: L-G68 rail oil
Headstock lubrication (gearbox transmission machine tool selection)	Recommended brand (optional)	Gear oil		ISO VG100	It is recommended to replace it every two years.
		SHELL (SHELL) brand is: SHELL OMALA OIL 100
		The Great Wall brand is L-CKD100 heavy duty industrial gear oil
Independent spindle lubrication (Independent spindle machine tool selection)	The rotating parts of the machine tool such as the spindle and the ball screw in the feed system, etc., of which the various bearings of our factory have been made in production With special grease, long-term lubrication can be maintained, the user does not need to add and replace
Hydraulic pump station (specially configured hydraulic chuck tail seat selection)		Hydraulic oil	80L	ISO VG46	According to the use of the machine, it is recommended to replace once every two years.
	Recommended brand (optional)	SHELL (SHELL) brand: SHELL TELLUS 46
		The Great Wall brand is L-HM46 anti-wear hydraulic oil
