L3 DIN-Rail Industrial 8-Port 10/100/1000t 802.3at Poe + 4-Port 1g/10g SFP+ Managed Ethernet Switch

Product Description

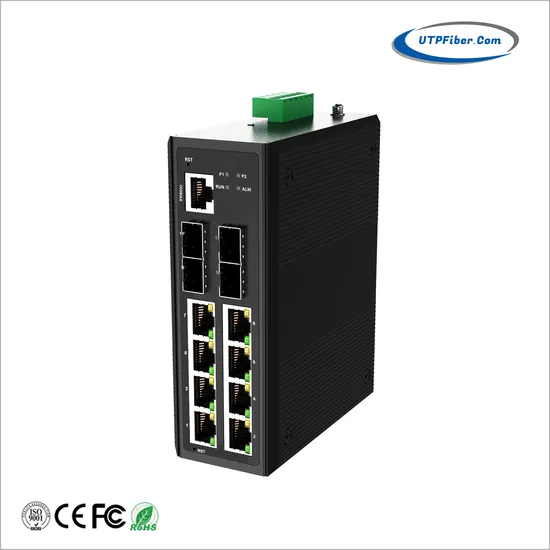

L3 DIN-Rail Industrial 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G/10G SFP+ Managed Ethernet Switch Introducing the L3 8G+4x10G SFP+ Managed DIN Rail Industrial Ethernet Switch by Shenzhen UTP Fiber Technology Co., Ltd. This industrial switch offers full-duplex and half-duplex transmission modes, a transmission rate of 10/100/1000Mbps, and is designed for rugged environments. With 30W PoE support, it is perfect for industrial applications.
Overview UF-MIES4X8GP-SFP Series is an industrial Managed switch with 8-Port 10/100/1000BASE-T 802.3at PoE+ and 4-Port 1G/10G SFP+. It supports Layer 3 IP routing in a DIN Rail Mount case. With a 4 x 10Gbps uplink, the UF-MIES4X8GP-SFP allows operators to deal with many thousands of data in a secure topology connected to industrial backbones or high-capacity servers. Modernizing the industrial LAN dramatically allows it to meet ever-increasing bandwidth demands. With dual power input design, UF-MIES4X8GP-SFP can offer redundant mechanisms for critical applications that need always-on connections. It can also operate either at standard operating temperature range -40 to 80°C. Housed in rugged DIN rail or wall mountable IP40 enclosures, these switches are perfect choices for harsh environments.
Features 8x10/100/1000Base-T PoE+ ports, 4x1G/10G SFP+ ports Compliant with IEEE802.3af/at PoE Layer 3 Model support OSPFv2, RIPv2, Static Route Support both IPv4/IPv6 applications LLDP, LLDP-MED protocol suitable for IIoT Applications Support IEEE802.3az energy efficient Ethernet technology, 8K MAC address table Electric 8KV surge protection Power input polarity protection design, no worry about wrong operation Aluminum case, no fan design Installation method: DIN Rail/Wall mounting Application The UF-MIES4X8GP-SFP Series is suitable for a wide range of applications, including industrial networking, intelligent transportation systems (ITS), and utility market applications that require robust performance in harsh environmental conditions.
Specifications

Ethernet Interface
Model	UF-MIES4X8GP-SFP
Ports	4×1G/10G SFP+ 8×10/100/1000M Base-TX
Port Mode (Tx)	Auto-Negotiation Full/Half Duplex Mode Auto MDI/MDI-X Connection
Standards	IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3ae for 10 Gigabit Ethernet IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging IEEE 802.1X for authentication IEEE 802.3ad for Port Trunk with LACP
Packet Buffer Size	12Mbits
Maximum Packet Length	Up to 10K
MAC Address Table	16K
Transmission Mode	Store and Forward (full/half duplex mode)
Exchange Property	Delay time: < 7μs Backplane bandwidth: 128Gbps
IGMP Group	4096
Max. No. of VLAN	256
VLAN ID Range	VID 1 to 4094
Power over Ethernet
PoE Standard	8 x IEEE 802.3af /IEEE 802.3at PoE
Power budget	Max. PoE output power budget 30W each port
Power Pin Assignment	1/2, 4/5(+); 3/6, 7/8(-) in default
Physical Characteristics
Housing	Aluminium case
IP Rating	IP40
Dimensions (LxWxH)	138mmx108mmx49mm
Installation	Rack Mount
Weight	680g
Environmental
Operating Temperature	-40ºC~80ºC (-40 to 176 ºF)
Operating Humidity	5%~90% (non-condensing)
Storage Temperature	-40ºC~85ºC (-40 to 185 ºF)
MTBF	>250,000@Telcordia(Bellcore)GB
Heat Dissipation	34 BTU/h
Cooling	Passive Cooling, Fanless Design
Noise Level	0 dBA
Software Features
Management Interface	CLI (Console/Telnet (RFC854)), WebUI (HTTPS), SNMPv3
Management	ARP, Flow Control, DDM, DHCP Server/Client, IPv4/IPv6, LLDP, LLDP-MED, UDLD, Port Mirror, RMON, SNMPv1/v2c/v3, Syslog, Telnet,
File Management	Firmware Upgrade/Backup, Dual Images, Configuration Download/Backup, Multiple Configuration, TFTP(RFC783), HTTP, UART
Management Access	Management VLAN, Management ACL (256)
Filter	802.1Q, GMRP, GVRP, IGMP Snooping v1/v2/v3, IGMP Querier V2/V3, QinQ VLAN
Redundant Network	Link Aggregation, STP/RSTP/MSTP/ERPSv2, Auto Edge Port, BPDU Filtering, Self-Loop Detection
Routing Redundancy	VRRP (Interface and IP Address)
VLAN	Support IEEE 802.1Q 4K VLAN, QINQ, Double VLAN, Voice LAN, Surveillance VLAN(Auto/Manual), Multicast VLAN Registration (MVR)
Time Management	Local, SNTP, NTP
Unicast Routing	OSPFv2, RIPv1/v2, Static Route
QOS	Support Queue Scheduling (WRR, WFQ, Strict Priority , Hybrid(WRR+SP or WFQ+SP); Priority Queue(8 queues/port); Class of Service(Port-based, 802.1p, IP TOS Precedence, IP DSCP), Trusted QoS, Rate Limitation
ACL Type	L2/L3/L4, MAC-based, IPv4-based, IPv6-based
Diagnostic Maintenance	Support port mirroring, Syslog, Ping
Security	Broadcast Storm Control, HTTPS/SSLv2v3,TLSv1 RADIUS, TACACS+,AAA SSHv1/v2,Support DHCP Snooping, Option 43/82, 802.1X security access, Support user hierarchical management, ACL access control list, Support DOS, port-based MAC filtering/binding, MAC whitelist
MIB	Ethernet-like MIB, MIB-II, MIB-I, Bridge MIB, Bridge MIB extensions, RMON MIB(1,2,3 & 9 groups, RFC2737 Entity, RFC2863 Interface Group, SNMP-Community-MIB
Power Supply
Power Consumption	16 Watts Max (no PoE)
Power Inputs	2
Input Voltage	48-57VDC, Redundant dual inputs
Connector	DC:1 removable 6-contact terminal blocks Pin 1/2 for Power 1, Pin 3/4 for Power 2, Pin 5/6 for fault alarm
Protection	Overload Current Protection, Reverse Polarity Protection
LED Indicator
PWR	Power status
RUN	System running status
Link/ACT	Data transmission status
RJ45 Port Speed	1000M running status
ALM	Alarm information status
Certification Standard
EMI	FCC Part15 Subpart B Class A, EN 55022 Class A
EMS	EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8, EN61000-4-11
Collision	IEC60068-2-27
Drop	IEC60068-2-32
Vibration	IEC60068-2-6
Safety grade	EN60950-1

Ordering Information

Model	Description
UF-MIES4X8GP-SFP	L3 Industrial 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G/10G SFP+ Managed Ethernet Switch
SFP Options	SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
	SFP module is to be purchased separately.
Mounting Options	Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
	Power Supply is to be purchased separately.
