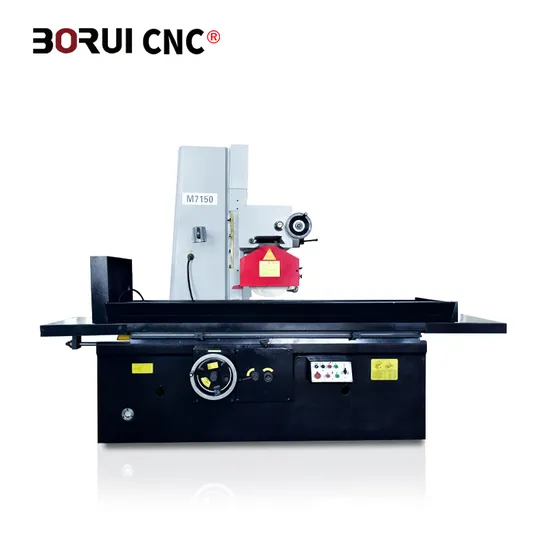

Universal Surface Grinding Machine M7150 Low Price Surface Grinding Machine

Universal Surface Grinding Machine M7150 Low Price Surface Grinding Machine

US$12,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
M7150
Type
Surface Grinding Machine
Processing Object
Thread
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Product Name
M71 Series Grinding Head Moving Surface Grinding M
Model
M7150
Grinding Wheel Size
400*50*203
Table Size
700*1250, 700*1600, 700*2200
Max. Load Capacity
1100, 1400, 1800
Machine Tool Weight
5600, 6600, 7200
Max. Longitudinal Travel
1350, 1700, 2300
Min. Longitudinal Tra
200
Table T Slot No*Width
3*22
Transport Package
The Machine Willi Be Packed in Plywood Case.
Specification
2350*2030*2050
Trademark
BORUI
Origin
Shan Dong
Production Capacity
500

Product Description

Hot sell Cheap factory price grinding machine M7150 surface grinding machine
Product Description
STRUCTURAL FEATURES:
The machine tool adopts the t-type layout form, the guide rail on the column is equipped with a drag plate, the middle position of the guide rail is equipped with a vertical feed mechanism, the transmission accuracy is high, the interchangeabil- ity is good, the cross joint is connected in the transmission process, can compensate the center error of the lead screw and the reducer shaft. Closed hydraulic system is adopted for the movement of the worktable. The front and rear feed can be manually fed, the hydraulic feed can be automatically fed, and the lead screw can be fed automatically intermittently driven by a variable frequency motor. Adopt high strength cast iron foundation, grinding head spindle adopt bobbin or high rigidi- ty sleeve structure, the machine overall rigidity is strong, the quality is stable, the operation is stable.
Product main technical specifications:
Model
 Table size(WxL) mm
 Max.size to be ground mm
 Max.load capacity (include permanent magnetic chuck) kg
M7130A
 300×1000
 300x1000X400
 470
M7130B
 300x1000
 300×1000X800
 900
M7130C
 300x1000
 300X1000X1200
 1170
M7140
 400x1000
400x1600
400×2200
 400x1000X400
400x1600X400
400×2200X400
 630
1000
1380
M7150A
 500x1000
500x1600
500×2200
 500×1000×500
500×1600×500
500×2200×500
 700
1240
1410
M7160
 600x1000
600x1600
600×2200
 600x1000×400
600×1600×400
600×2200×400
 850
1150
1500
M7170
 700x1250
700x1600
700×2200
 700×1250×500
700x1600×500
700×2200×500
 1100
1400
1800
M7180
 800×1600
800×2200
800×3000
 800×1600×500
800×2200×500
800×3000×500
 1600
2000
3000

Details Display
