Dual Band Gigabit Portable WiFi Router CPE Chipset Mt7981 Mini WiFi6 5.8g Wireless Router

Product Description

Product Description

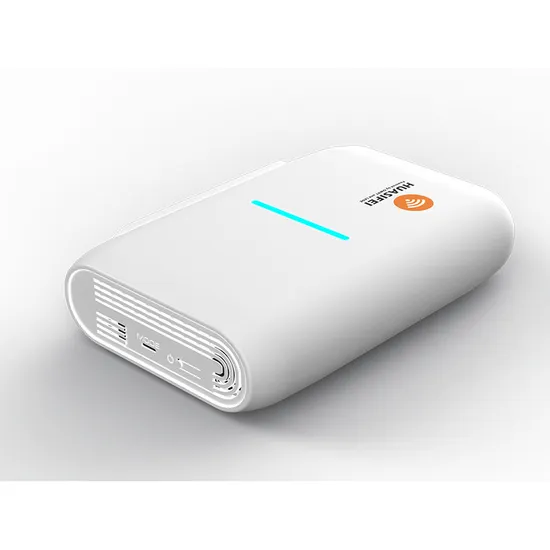

AX3000 is a portable router using Wi-Fi 6 protocol. It is powered by MT7981B 1.3GHz dual-core processor with 160MHz support, which provides excellent improvement in wireless rate and signal strength. It can be used for multi-device connectivity in the home, and the portable and compact design also meets the needs of optimized network for travel. Featuring advanced WiFi 6 technology, Beamforming to enhance coverage and BSS Coloring to reduce network congestion, 160MHz doubles the bandwidth channel compared to 80MHz for faster network speeds and a greater number of device connections. The AX3000's Wi-Fi 6 speeds allow families to watch 4K video on multiple devices with ease and without data buffering interruptions. Hardware Description MT7981B main chip, main frequency up to 1.3GHZ; equipped with independent MT7976CN WIFI6 chip, 2.5G network port RTL8221B chip High-speed 1G DDR4, 8GB EMMC; 1LAN 2500 Mbps+1WAN 1000 Mbps adaptive network port; Support "one key flash mode", long press reset button to enter recovery mode; Support Type-C power interface Support USB3.0 interface specifications

WH3000 Hardware Specifications
Hardware Specifications	MT7981B+MT7976CN+RTL8221B Dual Core 1.3GHZ DDR4 1GB 8GB EMMC (Optional 128G)
WIFI Chip	MT7976CN IEEE 802.11n/g/b/a/ac/ax,Max. 3000Mbps
Protocol Standards	IEEE802.11n/g/b/a/ac/ax,IEEE802.3/802.3u
Wireless Rate	574Mbps (2.4GHz)+2402Mbps (5GHz)
Operating Frequency Bands	2.4GHz 5.8GHz
output power	11n:17dBm±1dBm 11g: 17dBm±1dBm 11b: 19dBm±1dBm 11a: 19dBm±1dBm 11ac: 18dBm±1dBm 11AX: 19dBm±1dBm
receiver sensitivity	11N HT20 MCS7: -72dBm 11N HT40 MCS7: -69dBm 11G 54Mbps: -74dBm 11B 11Mbps: -86dBm 11A 54Mbps: -73dBm 11AC VHT20 MCS8: -66dBm 11AX VHT20 MCS8: -66dBm
antennae	2* Built-in Wi-Fi antenna
interface	1*10/100/1000/2500Mbps LAN Port, Auto MDI/MDIX. 1*10/100/1000Mbps WAN Port, Auto MDI/MDIX. 1*USB 3.0 Interface 1*Type-C power connector 1*Reset button 1*VPN button
LED Lights	WIFI
Pushbuttons	1* Reset button
Power Adapter	Type-C, 5V/3A
Maximum Power Consumption	< 8W

Detailed Photos
