China Factory Direct Sales Siemens/GSK/Syntec System CNC Horizontal Lathe Metal Cutting CNC Lathe Ck6180 High Precision CNC Lathe Lathe

China Factory Direct Sales Siemens/GSK/Syntec System CNC Horizontal Lathe Metal Cutting CNC Lathe Ck6180 High Precision CNC Lathe Lathe

US$28,700.00
1-2 Pieces
US$28,500.00
3+ Pieces

Basic Info.

Model NO.
CK6180
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
4/6/8
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Swing Over Bed
800mm
Swing Over Cross Slide
550mm
Distance Between Centers
3000mm
Width of Bed Way
550mm
Max. Load Capacity
3000kg
Spindle Bore
104mm
Spindle Bore Taper
120/Mt5
Spindle Nose Type
A2-11
Spindle Speed Steps
Manual Gear Change 3steps
Spindle Speed Range
10-1000rpm
Chuck Size
315mm
Chuck Type
3-Jaw Manual
Turret Type
Nc Turret 4 Position
Tool Shank Size
32X32mm
Width X Height X Length
1850X1900X5400mm
Transport Package
Plywoodbox
Specification
5600*2250*2000mm
Trademark
Vedon
Origin
China
HS Code
8458110090
Production Capacity
100-500sets/Year

Product Description

Overview
Application:Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also. can process the single and multiple threads in metric, inch and other standards.tapping, boring, etc.
Machine Details
Performance characteristics of Flat Bed CNC LatheThe machine is widely used in electrical appliances, instrumentation industry, automobile and motorcycle accessories, fastener bearing, phtotgraphic equipment, film machinery, hardware, various watches, cultural and educational supplies, motors, valves, gas pipes and other high-precision complex parts processing and manufacturing is the most ideal and efficient equipment in the hardware machinery processing industry.
Specifications
Important Note:1. Please confirm your local voltage with our sales staff before ordering.
2. Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.
SPECIFICATION OF CNC LATHE MACHINE
ITEMS UNIT CK6180 CNC Lathe
Capacity Swing over bed mm Φ800
Swing over cross slide mm Φ550
Distance between centers mm 3000
Width of bed way mm 550
Max. load capacity T 3
Spindle Spindle bore mm Φ104
Spindle bore taper - MetricΦ120/MT5
Spindle nose type - A2-11
Spindle speed steps - Manual gear change 3 steps
Spindle speed range rpm 10-1000

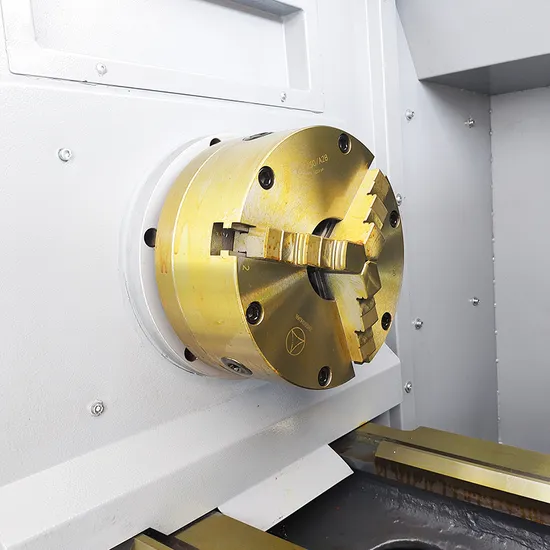

Chuck size mm Φ315
Chuck type - 3-jaw manual
Turret Turret type - NC turret 4 position
Tool shank size mm 32x32
Carriage X axis travel mm 420
Z axis travel mm 2800
X axis rapid traverse speed mm/min 4000
Z axis rapid traverse speed mm/min 6000
Tailstock Tailstock quill diameter mm Φ100
Tailstock quill taper - MT5
Tailstock quill travel mm 250
Motors Main spindle motor kW 11
Coolant pump motor kW 0.125
Dimensions Width x Height mm 1850x1900
Length mm 5400
Weight Net weight T 5.4

Application
Packaging & Shipping

Company Profile
Shandong Vedon Intelligent Equipment Co., Ltd., We Specialize In The Design And Manufacturing Of High-Precision Cnc Machines For Metalwork Processing. Including 5 Axis Machining Center, Gantry Type Machining Center, Horitonal Type Machining Center, Vertical Machining Center, Cnc Lathe Etc.. With A Strong Focus On Innovation, Quality, And Reliability, Our Advanced Cnc Equipment Enables Precision And Efficiency In Every Application. Whether For Small-Scale Operations Or Large Industrial Projects, We Deliver State-Of-The-Art Solutions Tailored To Meet The Diverse Needs Of The Metalworking Industry. Powered By Cutting-Edge Technology And A Commitment To Excellence, We Are Dedicated To Enhancing Productivity And Driving Success For Our Global Clients.
Certifications
FAQ
Q1. Could I put my LOGO on it or paint my own color?
A: Yes, As long as the order quantity reach to the MOQ.
Q2. What's your trade terms?
A: FOB, CIF, DAP or other terms are acceptable.
Q3. Could I order trail small order?
A: Yes,we have no MOQ for standard version products. The price is different from different order quantity.
Q4. What points need to be confirmed before placing the order?
A: Voltage, frequency, plug type trade term and have shipping agent or not.
Q5. What is your terms of payment ?
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, 70% before shippment. If you have another question, pls feel free to contact us as below.
