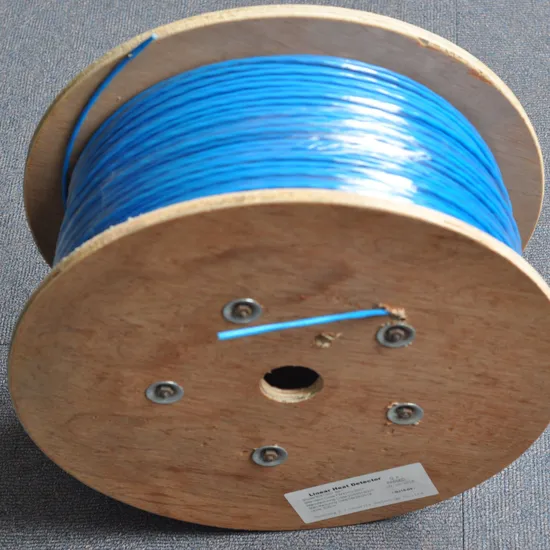

FM Approval Linear Heat Detector for Tunneling Project Use

Product Description

here are multiple types of LHD, Conventional Type, Outdoor Type, High performance of Chemical Resistance Type and Explosion Proof Type, each type has its own feature and applications. Please choose the right type according to the factual situation.
Description of matching electrical equipments
MS1000 is digital type LHD with comparatively simple output signal. And Shenyang P.T.S. sales matching electrical equipments to MS1000.

MS1000-I Linear Detector Interface	1.Interface for MS1000, MS1000-CR,MS1000-OD and MS1000-EP digital linear heat cable With local fire and fault indication Fire and fault relay output available Low-power design Metal case
	Technical Specifications Operating Voltage:24VDC Operating Voltage Range: 16VDC-28VDC Operating Current: Standby Current:≤20mA Fire Current:≤30mA Fault Current:≤25mA Operating environment: Temperature:-45ºC-60ºC Relative humidity:95% IP Rating :Ip66 Dimensions:90mm × 85mm × 52mm(L×W×H)
MS1000-P End of Line Unit	End of Line Unit for MS1000, MS1000-CR,MS1000-OD and MS1000-EP digital linear heat cable The functions are balancing the signal status For Digital linear heat cable monitoring and alarm/fault simulating (Notice: "Fire Test" pushbutton is for testing use only)
	Technical Specifications Operating Voltage: No Electronics Operating environment: Temperature:-45ºC-60ºC Relative humidity:95% IP Rating :IP66 Dimensions:90mm×85mm×52mm(L×W×H)

The consumers can choose other electrical equipments to connect with MS1000, making good preparation as followed:
(1)Analysing the protection capability of the equipments(input terminal). For during the operating, the LHD may couple the signal of the protected device(power cable),causing voltage surge or current impact to the input terminal of the connecting equipment.
(2)Analysing the anti-EMI capability of the equipments(input terminal). Because long-length use of LHD during the operation, there may be power frequency or radio frequency from LHD itself interfering the signal.
(3)Analysing what is the maximum length of LHD the equipments can connect.
This analysis should depend on the technical parameters of MS1000, which will be introduced in detail later in this manual.
If any other queries relating, please contact us for more information. Our engineers will provide technical support.
Connecting instruction Connecting drawing of MS1000-I ( Drawing 1) (Drawing 1) C1 C2:with sensor cable, non-polarized connection A B:with DC24V power,non-polarized connection COM NC:fault output COM NO:fire alarm output (resistance value in fire alarm ≤50Ω) Connecting drawing of MS1000-P ( Drawing 2)
(Drawing 2) C1 C2:with sensor cable, non-polarized connection XT2 : connected with 4.7k terminal resistance Installation requirement
The linear heat detector is a type of fire detector with advanced functions, which meet all kinds of fire protection requirements in any inflammable sites. Though the detector has strong protective outer jacket to prevent damage, more attention should be paid during the installation due to the partial and internal damage cannot be found immediately. The damaged cable may cause the alarm of system malfunction or alarm during the future use. As a result, the followings should be paid attention to:
1. Forbid heavy objects overwhelming the heat sensing cable;
2. Forbid bending or turning the heat sensing cable with an acute angle;
3. Prevent corrosion;
4. Forbid using nonstandard accessories on the linear heat cable.
5. "Fire Test" pushbutton on the End of Line Unit is for testing use only, it must be restricted to prevent accidental or mistaken use.
It comes to different fire detecting results due to different methods of installation, so we need take all the following factors into consideration, including the height, the structure, the obstruction, the air flow and so on, to prevent improper installation adversely affecting the normal use of the detector.
The installation spacing of LHD
Characteristic features of LHD makes itself become the best choice of fire alarm system for applications in high risk of flammable areas, major types of industrial and commercial places, especially in some harsh environments where spot-type detectors cannot be installed.
The LHD of Shenyang P.T.S has been widely applied in industrial warehouses, workshops, etc. The detector can be installed at the ceiling level or the side wall depending on the features of the protected device, getting the same detecting result as the spot-type detectors'.
How to determine the installation spacing?
There are different instructions from UL and FM standards, according to their own test requirements, the detector should match the figures below:

Model	Approvals/Max. Listed Spacing
	FM	UL/cUL
MS1000 68ºC MS1000-CR 68ºC MS1000-OD 68ºC MS1000-EP 68ºC	7.7m	15.2m
MS1000 88ºC MS1000-CR 88ºC MS1000-OD 88ºC MS1000-EP 88ºC	7.7m	15.2m
MS1000 105ºC MS1000-CR 105ºC MS1000-OD 105ºC MS1000-EP 105ºC	4.5m	15.2m
MS1000 138ºC MS1000-CR 138ºC MS1000-OD 138ºC MS1000-EP 138ºC	4.5m	15.2m
MS1000 180ºC MS1000-CR 180ºC MS1000-OD 180ºC MS1000-EP 180ºC	N/A Special applications	N/A Special applications

But the figures above are for reference only, it is rather difficult to determine the practical installation spacing of the LHD, for we can not predicate the information of the fire, such as area, size, location and heat quantity. Furthermore, the LHD detect the fire temperature normally through the air radiation, it is more difficult to gain an accurate spacing data of LHD installation. We should design and lay the LHD with practice, properly reduce the spacing among the LHD to guarantee the accurate fire alarm. 5m spacing among LHDs is the best distance to get good detecting performance on our experience.
We should design and lay the LHD with practice, properly reduce the spacing among the LHD to guarantee the accurate fire alarm. 5m spacing among LHDs is the best distance to get good detecting performance on our experience.
