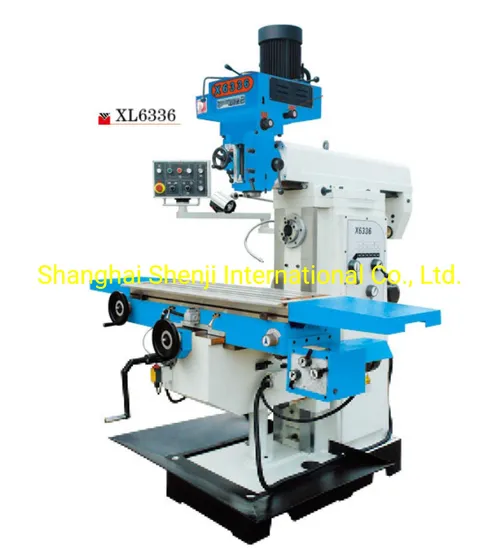

XL6336 Universal Radial Milling Machine

XL6336 Universal Radial Milling Machine

US$2,500.00-4,500.00 1 set (MOQ)

Basic Info.

Model NO.
XL6336
Object
Matel
Structure
Turret
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table Size
1250X360mm
Transport Package
Wooden Case
Specification
1600x1750x2200mm
Trademark
SJMC
Origin
China
Production Capacity
20untis/Month

Product Description

Vertical milling machine XL6336 UNIVERSAL RADIAL MILLING MACHINE FEATURES:
1. Taiwan high speed milling head
2. Automatic feeds in X, Y, Z axis
3. Hardened square guide ways
4. Manual lubricate system
5. Spindle speed at 70-7200rpm (V)
6. With capacity both Vertical and Horizontal
MODEL
XL6336
Spindle taper

ISO40(VERTICAL)ISO50(HORIZONTAL)
Spindle travel
mm
140
Sleeve feed
mm/r
0.04/0.08/0.15
Distance from vertical spindle to column
mm
200-600
Distance from vertical spindle to table
mm
180-530
Distance from horizontal spindle to table
mm
0-350
Distance from horizontal spindle to arm
mm
230
Spindle speed range
r/min
63~2917/10(vertical)60~1800/12(horizontal)
Table size
mm
1250x360
Table travel
mm
1000x320x350
Range of longitudinal,cross travel
mm/min
15~370/(MAX.540)
Up/down speed of table
mm
590
T of table(N0./WIDTH/DISTANCE)
mm
3/18/80
Main motor
kw
5.5(vertical)4(horizontal)
Motor of table power feed
kw
0.75
Up/down motor of headstock
kw
1.1
Coolant pump motor
kw
90
Speed of coolant pumps
L/min
25
Overall dimension
mm
2220x1790x2360
N.W./G.W.
kg
2340/2540
