High Accuracy Toroidal Transformer Coil Winding Machine with CE Certificate

Product Description

Specificaton

GWL-0619 High quality Big Gear Type Toroidal Core Winding Machine

Equipment model	GWL-0619
Winding mode	Gear type
Max.Final outer diameter	130-450
Mini final inside diameter	70
Max Final height	220
Wire diameter	1.0-4.0
Perimeter of magazine	1200
Width of magazine	10-30(Optional)
Max winding speed	120 rpm/min

Features:
1.Toroid Digital Transformer Winding Machine are advanced,strongly built workhorses capable of winding light as well as heavy wire
without insulation damage.
2.One set standard automatic toroid coil winding include one PCS winding shuttle only,other sizes winding shuttles are optional.
3.The open gap gear rack and hinged gap magazine of Toroid Digital Transformer Winding Machine facilitate core change ,maximizing
output.
4.Accurately wire and tape spacing by adjustable.
5.Toroid Digital Transformer Winding Machine can easily exchangeable magazines secure maximum flexbility.
Advantage:
1.Complete range of articles, large range of wire diameter, Multipurpose
2.Good compatibility, parts are interchangeable
3.High stability, part quality guarantee
4.High production efficiency, no wire breaking at high speed winding
5.Easy to operate, High learnability

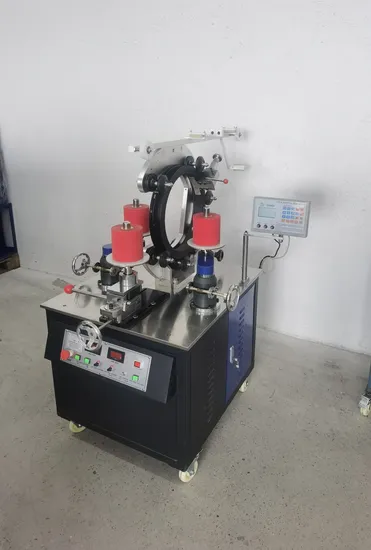

Detailed Photos
GWLJ-0519 Gear type Rectangle transformer coil winding machine

Wire size	0.7-2.0mm(Single enamelled copper wire, multi-wire winding, the combined strength does not exceed the maximum value)
Finish the outer length/width	60-300mm (Please note: 60-300mm does not mean such a wide range directly, but refers to adjustment by adjusting some installed parts. If the maximum 300mm is selected, products smaller than 150mm cannot be processed; on the contrary, if the product is selected to be suitable for small products, it cannot be processed. Products larger than 150mm.)
Minimum the inner length/width	45mm(Length is greater than 45mm Width is greater than 45mm)
Maximum finished height	60mm
Magazine width	4-18mm(Optional)Standard configuration (8mm)
Magazine perimeter	720mm
Max winding speed	250rpm/min
Controller storage capacity Programs	50*20set (1000 running programs)
Weight	120KG
Dimension	650*500*700mm

GWLA-0319F Gear type Rectangle transformer coil winding machine

Wire size	0.5-1.6mm(Single enamelled copper wire, multi-wire winding, the combined strength does not exceed the maximum value)
Finish the outer length/width	60-300mm
Minimum the inner length/width	45mm
Maximum finished height	60mm
Magazine width	4-18mm(Optional)Standard configuration (8mm)
Magazine perimeter	720mm
Max winding speed	250rpm/min
Controller storage capacity Programs	50*20set (1000 running programs)
Weight	120KG
Dimension	650*500*700mm

TAPING MACHINE
GWL-500T Toroidal taping wrapping machine with film

Suitable winding band width	10-12-15-20mm
Finally completed outer diameter	80-250mm
Minimum finished inner diameter	40mm (with 10mm storage ring installed)
Maximum finished height	130mm
Width of magazine	10-20mm (optional)
Magazine circumference	1070mm
Maximum winding speed	230 rpm
Presetable programs	50*20 groups (1000 running programs)
Overall machine weight	100kg

GWL-500F High stability floor type toroidal wrapping machine for transformer

Suitable winding band width	10-12-15-20mm
Finally completed outer diameter	120-320mm
Minimum finished inner diameter	40mm (with 10mm storage ring installed)
Maximum finished height	130mm
Width of magazine	10-20mm (optional)
Magazine circumference	1070mm
Maximum winding speed	230 rpm
Presetable programs	50*20 groups (1000 running programs)
Overall machine weight	138kg

GWTMLJ-0218 Gear type Rectangle transformer coil tapping machine

Tape width	8mm/10mm/12mm/15mm/20mm(optional)
Finish the outer length/width	60-300mm (Please note: 60-300mm does not mean such a wide range directly, but refers to adjustment by adjusting some installed parts. If the maximum 300mm is selected, products smaller than 150mm cannot be processed; on the contrary, if the product is selected to be suitable for small products, it cannot be processed. Products larger than 150mm.)
Minimum the inner length/width	45mm(Length is greater than 45mm Width is greater than 45mm)
Maximum finished height	60mm
Tape Magazine width	8mm/10mm/12mm/15mm/20mm(optional)
Magazine perimeter	720mm
Max winding speed	250rpm/min
Controller storage capacity Programs	50*20set (1000 running programs)
Weight	120KG
Dimension	650*500*700mm

GWLT-850 Toroidal tape wrapping wind machine with insulation film

Tape width	8-10-12-15mm(optional)	Max.winding speed	260rpm/min
Max.final coil.O.D	60-180mm	Perimeter Of magazine	760mm
Min.final coil.I.D	30mm	Controller storage capacity Programs	1000set
Max.finalcoil height	80mm	Machine dimensions	650*500*1160mm
Width of magazine	8-10-12mm(optional)	Weight	95kg

GWLT-0318 Transformer core Taping Wrapping Machine

Tape width	8-10-12-15mm (optional)	Max.winding speed	230rpm/min
Max.final coil.O.D	80-250mm	Perimeter Of magazine	920mm
Min.final coil.I.D	30mm	Controller storage capacity Programs	1000set
Max.finalcoil height	110mm	Mechanical dimensions	650*500*1200mm
Width of magazine	8-15mm (optional)	Weight	108kg

GWLT-0418 Big Gear floor type wrapping insulation tapimg machine

Tape width	15-18-20-25mm(optional)	Max.winding speed	130rpm/min
Max.final coil.O.D	120-450mm	Perimeter Of magazine	120mm
Min.final coil.I.D	60mm	Controller storage capacity Programs	1000set
Max.final coil height	210mm	Mechanical dimensions	700*900*1820mm

Application
