Automatic Suction Machine Vacuum Feeder Plastic Granule Automatic Pumping Machine Feeder

Product Description

Product Description
Auto Plastic Raw Hopper Loader Loading Machine Plastic Granule Autoloader
It is specially developed for the situation of large amount of materials conveying, long conveying distance and crushed materials and powder. High-power motor with enlarged hose and hopper

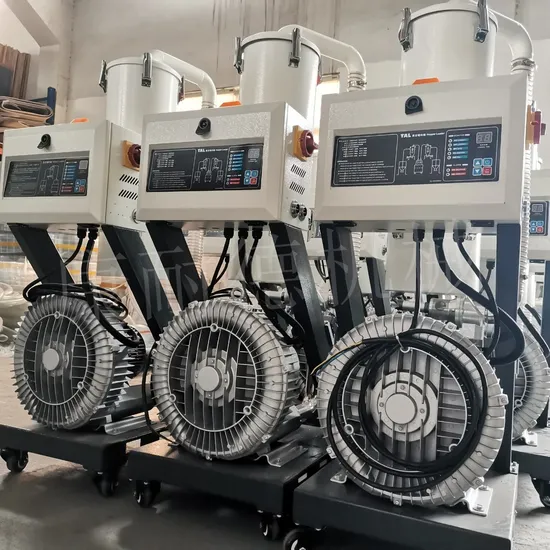

Product picture

Product Parameters

Model		1.5HP	3HP	5HP	7.5HP	10HP
Motor		1.5 /1.1	3/2.2	5/3.75	7.5/5.5	10/7.5
Conveying Capacity (kg/hr)		450	590	820	1000	1300
Loading Distance (m)		5	5	5	6	6
Static Wind Pressure (mm/H2O)		2800	2800	3200	4200	4500
Storage Tank Capacity (L)		7.5	12	24	30	30
Conveying Tube Inner		φ38	φ51	φ51	φ63	φ63
Specification of the Attached Hoses		φ38mm×4m 1pc	φ51mm×10m 1pc	φ51mm×10m 1pc	φ63mm×12m 1pc	φ63mm×12m 1pc
Dimensions (cm)	Host	50x42x109			69x52x144
	hopper	38x28x45	43x33x58	43x33x69	43x33x83	43x33x83
Approx. Net Weight (kg)		56	68	81	137	152

Detailed Photos
Motor
300G adopts high-speed carbon brush motor, small size, strong suction, suitable for conveying new materials.
Controller
▪ Wire-controlled controller, easy to use; ▪ Alarm for overload and material shortage;
Stainless Steel Material
All stainless steel contact parts, to ensure no pollution in material conveying.
Balance Switch
Installing with balance switch. Use physical principles to adjust the work of the baffle.
Factory
Packaging & Shipping
Packaging Detailswe will use plastic case to pack the long knife,and then use paper case or wooden box to pack them again to avoid broken in the transportational processPort: Shanghai seaport
FAQ
Q1. How is your quality?A1.Our product is very durable and sharp. We guarantee the high performance of our products.Q2.Do you accept customized?A2.Yes, our products can be customized according to your needs. According to the type of machine and slitting, we have almost all kinds of blades.Q3.Do you offer free samples? Is it free or extra?A3.Yes, we could offer the samples, but you should pay some shipping cost.Q4.Is there cheap shipping cost to import to our country?A4. For small order, Express will be the best, And for bulk order, ocean shipping way is best but take longer time. For urgentorders, we suggest via air to airport or by Express send to your door.Q5.How long is the delivery time?A5.Generally it is 5-10 days if the goods are in stock, or it is 15-20 days, if the goods are not in stock. It is according toquantity.Q6.When you can reply to me when I send you an Inquiry?A6.We promise to reply within 24 hours( including holidays) on receipt of your inquiry.
