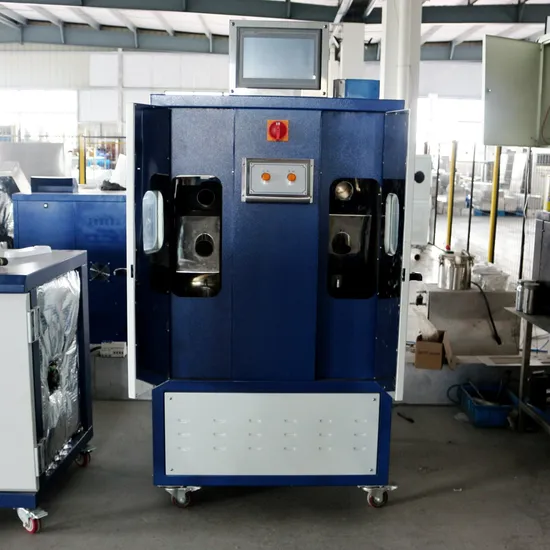

Lab High Temperature Small Sample Beaker Dyeing Machine Prices

Product Description

Product Introduction
Main features: Advanced built-in heating plate heats the diamond abrasive at 360°C. Provide dye cups of different capacities, such as 200CC\420CC, customized specifications are available. The speed of the dye cup turntable can be adjusted, it has an automatic forward and reverse design for more uniform coloring. Lower energy consumption, total power consumption is 4KW, compared with glycerin color tester 6-10KW, infrared color tester 4-6KW. The dye cups can be taken out and put in at any time, the proofing efficiency is more than doubled.Different bath ratios or bath volumes can be proofed in the same batch without batching.
Parameter

Number of test cups	24 cups
Steel cup material	316L one-time stretch molding
Test cup specifications	200CC/420CC(customizable)
Rotation speed	Adjustable speed 0-80rpm
Temperature	Room temperature to 140°C
Temperature control accuracy	±0.5°C
Heating rate	0.2-4°C
Cooling method	Forced air cooling
Heating medium	Patented metal thermal conductivity
Voltage	380V
Power	4KW
Ratio	1:4-1:30

Product shipping configuration

serial number	product name	model	quantity
1	Machine	JL-2-24P	A set
2	steel cup	420CC	24
3	Cup Mat	420CC	24
4	heat-resistant gloves		1
5	Cup and plate	12-hole	2
6	specification		1

Company Profile
ZYTT is an experienced trading and manufacturer from last 25years,it's located in Wuxi,JiangSu Province,China, 40min from Shanghai railway station.
ZYTT start from trading for all kinds of textile plant machine, such as blanket line, bed sheet line, we realized that the dyeing machine is more important for dyeing plant, and we created our own brand for dyeing machine at top quality,
ZYTT becomes an expert in the field of textile dyeing machines/pre-treatment and finishing machine. We make customermized design according our customer's requirement,our aim is to bring biggest value to customer.
ZYTT dyeing machine has been well received by domestic and foreign customers.On the basis of 20 years professional manufacturing experience,our brand is wellknown in international market in the world.
We want to show high quality textile machine to all countries
We want to spray china cultures to all countries.
We want to break customer mind "China textile machine is low quality".
We want to be top brand in textile machine from China.
Factory Photos
Why choose us The low liquor ratio reduces the water consumption greatly. Comparing with traditional dyeing machine,the water, auxiliary and steam consumption can be saved by 50% Lowest installed power,hence lowest electrical energy consumption. Fast dyeing cycle,enhanced productivity. User-friendly operation and easy maintenance.
