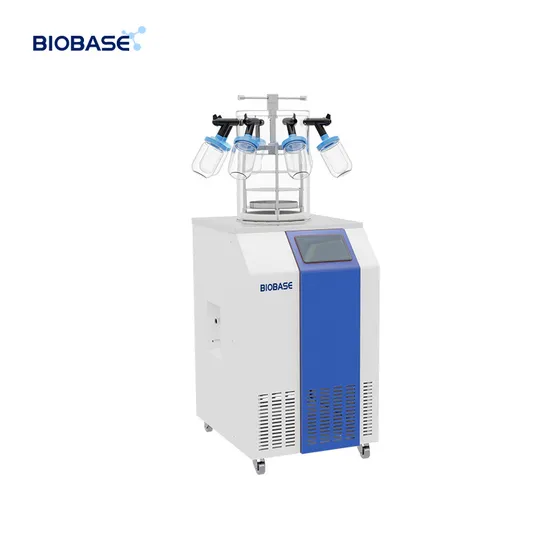

Biobase Vertical Freeze Dryer Bk-Fd18PT with Transparent Chamber Medium for Laboratory

Product Description

Product Description
BIOBASE Vertical Freeze Dryer
BK-FD18PT



Introductions:
Vacuum freeze-drying technology is also known as sublimation drying. The principle is to freeze a sample containing water in advance, and then sublimate its moisture under vacuum. The original biological, chemical and physical properties of the freeze-dried samples remain basically the same, and they are easy to be stored for a long time. After adding water, the samples can be restored to the state before freeze-drying, and their original biochemical characteristics can be maintained. Therefore, freeze-drying technology is widely used in food, chemical, biological products and other fields.
Features:
1. Compressor, energy saving and high efficiency, low noise, long life.
2. Vacuum pump, small volume, pumping speed, low noise, can achieve higher vacuum.
3. Integrated design, compact structure, easy to use.
4. Environmentally friendly refrigerant, ODP=0.
5. With defrosting function, safe and reliable
6. The cold trap and operating table are made of stainless steel, corrosion resistant and easy to clean.
7. The transparent cover of the drying chamber is made of aviation acrylic material, with high strength and no bonding.
8. Large cold trap opening size, with pre-freezing function, no need for low temperature refrigerator.
9. Professional gas diversion technology, high freeze-drying efficiency, and uniform ice capture. Product Parameters

Model		BK-FD18S	BK-FD18P			BK-FD18T		BK-FD18PT
Type		Standard chamber	Standard chamber with 8 port manifold			Stoppering chamber		Stoppering chamber with 8 port manifold
Freeze Drying Area		0.18m2				0.09m2
Tray		4pcs				3pcs
Height Between Trays		80mm				/
Cold Trap Temperature		≤-60ºC(No load)(-80ºC~110ºCoptional)
Cold Trap Capacity		28L
Cold Trap Size(Diameter*H)		Φ300*410mm
Vacuum Degree		≤5Pa
Water Capture Capacity		6L/24h
Tray Size(D*H)		Φ240*20mm				Φ200*20mm
Freeze Drying Time		36h
Loading Capacity/Shelf(Liquid)		1.8L				0.9L
Total Loading Capacity(Liquid)		3.6L				1.8L
Drying Chamber Size(Diameter*H)		Φ300*445mm	Φ300*465mm
Total Qty. of Vial Φ22		/	/			183		183
Total Qty. of Vial Φ16		/	/			345		345
Total Qty. of Vial Φ12		/	/			615		615
Refrigerant		-60ºC: R600a, R23 -80ºC: R404a, R23
Cooling System		Standard: Air cooling Optional: Water cooling
Power Supply		Standard: 220V, 50Hz Optional: 220V, 60Hz
Power Consumption		1800W
Standard Accessory		Vacuum pump 4L/S, Material tray*4(Material tray*3 for T/PT), Drying rack*1, Cover*1, Acrylic bucket*1(all models) Conical-mouth flask 100ml*2pcs, 200ml*2pcs, 250ml*2pcs, 500ml*2pcs, Switch valve*8 pcs(only for model BK-FD18P/PT), USB port
Optional Function&Accessory		Equipment moving frame, vacuum pump of other specifications, oil mist filter and other customization(for all models) 600ml/1200ml Wide-mouth flask(for BK-FD18P/PT)
External Size(W*D*H)mm		545*686*938
Package Size(W*D*H)mm	Main Body	835*680*1230
	Accessory	725*665*705
Gross Weight(kg)	Main Body	-60ºC: 118 -80ºC: 136
	Accessory	52		54	60		62
