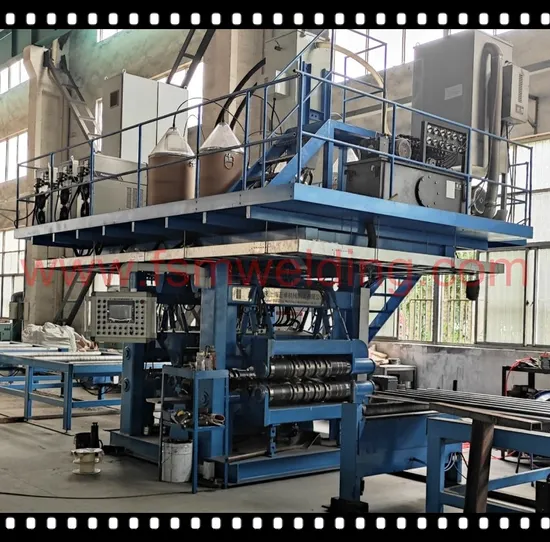

Membrane Multiple Pipe Panel Submerged Arc Welding Machine for Boiler Industries

Product Description

Product Description Membrane pipe-panel welding machine is used for welding the fin bar and rust-removed tube by submerged arc welding way, and weld the pipe-panel unit group into a large one.
- Use arc wheel as tool-accurately position the work-piece
- Hydraulic clamping - clamp the work-piece firmly
- Current balance - optimise current circuit and improve welding quality

Product Parameters

Item	Specification
Tube diameter	φ32-76mm
Tube wall thickness	3-12mm
Fin bar width	12-120mm
Fin bar thickness	3-12mm
Maximum pipe-panel width	1600mm
Pipe-panel material	Carbon steel or annealed alloy steel
Welding wire diameter	φ1.6 or 2.0mm
Wire feeding speed	1-10m/min
Welding torch	6 sets
Welding speed	500-1200mm/min adjustable
Welding current	360A at 100% duty cycle
Welding method	SAW welding

Spare Parts

Item	Specification	Quantity
Wire feed rack	φ1.6 or 2.0mm	1 set
Contact tip	M6/ φ1.6 or 2.0mm	20 pcs
Oiler	/	1 pc
Spanner	9 pcs	1 set
Monkey spanner	8"	1
Diagonal cutting nippers	6"	1
Screw driver	4" - shape	1
Screw driver	4" + shape	1
Ruler	150mm	1
Plastic tool box	/	1

Packaging & Shipping
Company Profile
FAQ 1. Where is your factory located ?
Friendship Machinery CO., LTD (FSM) is located in Wuxi, Jiangsu, and about 40mins from Shanghai if take railway.
2. How can you guarantee your product quality?
From raw material purchase to production, FSM has strict restriction. And we will provide 1 year warranty time for all the products. ISO 9001 and CE certification can be provided.
3. How long is one order production time?
After you place a order, the production handling time is about 25-30 days. It will subject to our factory production schedule.
4. Can you accept special order?
Yes, we have our own R&D center , and our engineer can provide machine drawing according to your requirement.
5. Are your engineers available for oversea project ?
Yes, our engineers can be delegated aboard for machine installation and debugging.
6. How can you make sure the deal safe?
You can pay by TT/ LC. Making the world a better place is our company's beautiful vision, we will be your trusted partner.
