Tdp-5 Pill Press Dies Tablet Press Machine

Product Description

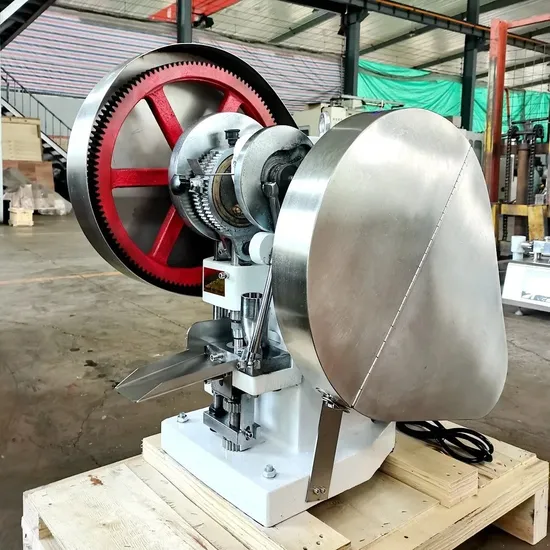

Product Description Tdp-5 Pill Press Dies Tablet Press Machine
The single-punch tablet press is a single-punch continuous tablet press, which is suitable for pharmaceutical, chemical, food, medical and other industries. This machine can press double-sided tablets with trademarks, text and simple graphics, and can customize molds according to customer requirements.

Model	ResTDP-0/1	ResTDP-3/4	ResTDP-5	ResTDP-6
Production capacity(pcs/h)	6000pcs/h	6000pcs/h	3600pcs/h	3600pcs/h
Max. Dia. of tablet(mm)	10mm	12mm/15mm	22mm	25mm
Max.Thickness of tablet(mm)	6mm	6mm	7mm	8mm
Max. Filling Depth(mm)	10mm	12mm	15mm	15mm
Max. Pressure(Kn)	10KN	30/40KN	50KN	60KN
Motor Power(Kw)	0.55KW	0.55KW	0.55KW	0.55KW
Motor Voltage	220V/380	220V/380	110V/60HZ	110V/60HZ
Overall size(mm)	680*450*680	680*450*740	600*500*700	600*500*700
Gross Weight	70KG	130KG	160KG	180KG

Brief Introduction: This machine is used for tabletting different kinds of granular raw materials in to round tablet. It is applicable to trail manufacturing in Lab or batch produce in small amount different kinds of tablet , sugar piece , calcium tablet and tablet of abnormal shape . it features a small desktop type press for motive and continual sheeting . it can also be hand-operated , Only one pair of punching die can be erected on this press. Both filling depth of material and thickness of tablet are adjuster. Main Feature: 1. Design of GMP 2. High quality with Low Price 3. High visibility isolated door to prevent cross contamination. 4. Easily remove parts for quick machine`s maintenance Product Effect: Size and shapes of tablet products could be customized as your need. Tablet press machine is widely applied in the briquetting with optional patterns or logs, the product could be medicine pill, cube sugar, candy, salt tablet, chocolate tablet, dried milk tablet, calcium table, solid alcohol tablet, effervescent tablet, camphor ball, naphthalene ball, toilet ball, chemical fertilizer etc. NOTES: The thickness of tablet can be adjusted. The shapes of tablets can be pressed by changing different punches.
Details
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our service
The technical and after-sale services are listed as follows:
1. Provide free technical training, guidance and information of accessories.
2. Our technical staff could instruct our customers on the installation of connector and accessories , and deal with technical and quality issues.
3. Our products with 1 years' warranty and life maintenance.
4. Our company will provide technical services by phone, fax, e-mail, etc., please refer to the contact details.
5. Our company will implement the contract strictly; deliver the products to location specified by our customers for free in accordance with the mode of transportation.
6. Our company will provide perfect after-sale services and technical support.
Contact person: Cathy
Once receive the calling of complaints, we will respond to it within 12 hours at working time and provide solution within 48 hours. If necessary, our company will send technical staff there and provide on-site solution.
