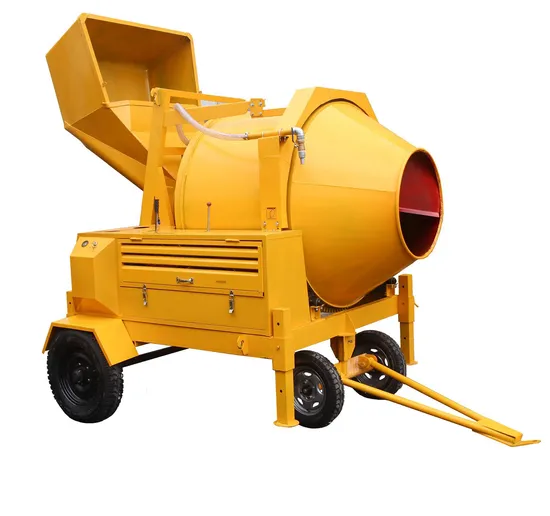

Hot Selling Self Loading Hopper Towable Portable Ready Mix Jzr350 Concrete Mixer Price

Product Description

Product Overview
Features
1) It adds a water pump for water circulation between water tank of the engine and the radiator; keeps the engine water temperature to be stable.2) Removing the air sucking point from the back to the front, reduce to suck the dust. It will be good to prolong the service life of the engine.3) Compact structure; higher reliability; mixing evenly; big capacity; easy operation; easily movable between sites, etc.

Product Parameters
Brief Introduction1 . It is a middle capacity self-dumping mixer;
2 . Heavy duty channel chassis provides durability and stronger support in the areas where you need it;
3 . Jack legs give maximum stability throughout the mixing cycle;
4 . Towable chassis with pneumatic tyred wheels;
5 . Hopper lifting model: Hydraulic tipping hopper. Steel wire rope hoisting tipping hopper is available.
6 . Power source: diesel engine. So it can also be used in areas without
electricity supply.

1.The concrete mixer is of bigger capacity, self-falling type. It is suitable for mixing plastic and low-slump concrete. The aggregate size is required to be smaller than 60 mm.
2.The drum revolves for mixing and reverses for discharging. The rated output capacity of this mixer
is 0.50 cubic meter.
3.The mixer is widely used in building site, road and bridge project, and many other construction sites.

Model	JZR350
Capacity of discharging	350L
Capacity of loading	560L
Drum rotating speed	14.5r.p.m
Power source	Diesel
Powered	13.34kw
Tyre size	7.00*16
Hydraulic system	Pressure of system	120Mpa
	Control valve	3 Stone manual valve
	Working pressure	80Mpa
Hydraulic cylinder	Hydraulic cylinder piston diameter	50mm
	Hydraulic cylinder diameter	90mm
	Stroke of hydraulic cylinder	720mm
Gear case	Mechanical gear box with friction clutch
Overall size	3100×2300×2500mm
Weight	1950kg
Mechanic transmission with hydraulic tipping system

Detailed Photos
1.Diesel Power
Adopt diesel engine as working power source,can be operation in on electricity area.
2.Tipping Hopper
Hydraulic tipping hopper (or wire rope hoisting) for aggregate feeding.
3.Water Pump
Adding a water pump for water circulation between water tank and water radiator,keep the water temperature to be stable.
4.Gear Ring
Gear RingBy observing the oil pressure gauge,you can know whether the oil leakage,the pressure is too high.It ensures the normal operation.
5.Operating Handle
Removing the air sucking point from the back to the front,reduce to suck the dust.It will be good to prolong the service life of the engine.
