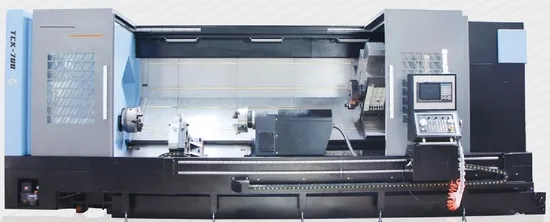

Large Size CNC Slant Bed Turning Center with Y Axis Function
Basic Info.
Model NO.
TCK1000
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Flat Bed
High Precision
Transport Package
Plywwod
Specification
CLK6165E
Origin
China
HS Code
84581100
Production Capacity
1000PCS/Year
Product Description
Slant Bed CNC Lathe Machine TCK1000:3.Main accuracy
| Inspection items | Standard tolerance (mm) | |
| Periodic axial movement of spindle | ≤0.005 | |
| Radial runout cone of spindle | ≤0.005 | |
| Position accuracy | Repeat positioning accuracy | ≤ X:0.004 Z:0.004 |
| Positioning accuracy | ≤ X:0.008 Z:0.008 | |
| Consistency of machining diameter | ≤0.01/150 | |
| Flatness of machined workpiece | ≤0.01 /200 | |
| Roundness of machined workpiece | ≤0.005/75 | |
| Surface roughness | ≤Ra1.4μm | |
| Machining accuracy | IT6 | |
| Repeated positioning accuracy of C-axis | ≤0.0027° | |
4.List of core accessories
| Name | manufacturer | Model and specification | quantity | Remark |
| control system | Siemens | 828D | 1 | Germany |
| Main motor | Siemens | 30 | 1 | Germany |
| XYZ-axis servo motor | Siemens | b22-2000 | 1 | Germany |
| Driven tool motoe | Siemens | Βip6-12000 | 1 | Germany |
| X-axis ball screw | PMI | Φ5008 | 1 | Taiwan |
| Z-axis ball screw | TBI | Φ6312 | 1 | Taiwan |
| X-axis guide rail | HIWIN | 55 Roller guide | 2 | Taiwan |
| Z-axis guide rail | HIWIN | 55 Roller guide | 2 | Taiwan |
| Spindle bearing | NTUS | P4 | 5 | Germany |
| Screw bearing | NSK | P4 | 8 | JAPAN |
| Turret | XJG | BMT65 | 1 | Taiwan |
| Chuck, cylinder | KPT | 12/15/18/21 " | 1 | Changzhou |
| Tailstock | DONGSCNC | MT5 | 1 | |
| Chip conveyor | DONGSCNC | Chain plate | 1 | |
| Hydraulic station | 3KW | zp | taiwan | |
| Optional configuration | ||||
| Hydraulic center frame | C type | |||
| programmable tailstock | ||||
| Tool setting arm | ||||
| Counterspindle | A2-6 | |||
