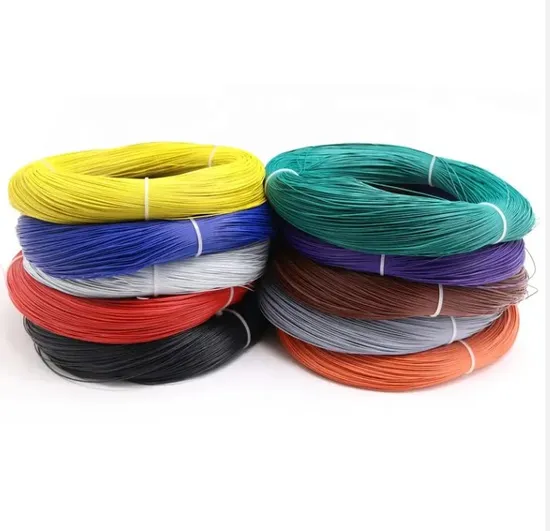

2464 Signal Wire PVC Insulated Power Control Line

Product Description

Circle Diameter PU Fexible Cable
PU Fexible Cable Circle Diameter Fexible Cable Circle Diameter PU Fexible Cable
Our Circle Diameter PU Fexible Cable Has Good Flexibility And Elasticity (Spring Elongation Length Can Reach The Original Length Of 3 to 10 Times).
Good Cold Resistance,Flame Retardant,Oil Resistance And Abrasion Resistance.
According To Different Occasions Requirement We Can Produce Kinds Of Spiral Cables and Wires,Evironmental Halogen Free For RoHS,REACH And So On Industry Standards.
Description of Senkin Circle Diameter PU Fexible Cable
Conductor Structure: See Common Conductor Structure Table Or Customization Insulation : TPEE/FEP/MPPO/TPV/PP/HDPE Sheath Material : General With Polyester Type TPU or Polyether Type TPU Working Temperature : -60 Degree---125 Degree Production Range: Standard Section 0.03-6 Square Meter Or Customization Multiple Conductors: 1-37 Conductors Or Customization Feature Of Circle Diameter PU Fexible Cable
Flexibility Elasticity (Spring Elongation Length Can Reach The Original Length Of 3 to 10 Times) Cold Resistance Flame Retardant Oil Resistance Abrasion Resistance.
Specification Data Sheet Of Our Nomal Halogen-free Flame Retardant PU Helix Cable

P/N	Normal Spec.	Twisting OD	Resosyamce/KM	Standard OD	Conductor(Option)	Filling(Option)
10	105/0.2541/2.588	2.588	<5	3.2	99.99% Copper Tinned Copper Varnished Wire Sliver-Plated Copper Nickel Copper	Kevlar/Nylon
12	65/0.254 1/2.05	2.05	<7	2.65		Kevlar/Nylon
14	41/0.254 1/1.63	1.63	<10	2.2		Kevlar/Nylon
16	26/0.254 1/1.29	1.29	<15	1.9		Kevlar/Nylon
18	41/0.16 165/0.08 105/0.11	1.02	<25	1.6		Kevlar/Nylon
20	20/0.16 110/0.08 70/0.1	0.81	<35	1.4		Kevlar/Nylon
22	17/0.16 65/0.08 41/0.1	0.64	<55	1.2		Kevlar/Nylon
24	26/0.1 41/0.08 120/0.05	0.58	<90	1		Kevlar/Nylon
26	7/0.16 24/0.08 65/0.05	0.48	<125	0.9		Kevlar/Nylon
28	11/0.1 19/0.08 45/0.05	0.38	<210	0.85		Kevlar/Nylon
30	7/0.1 19/0.06 28/0.05 1/0.3	0.3	<320	0.7		Kevlar/Nylon
32	1/0.254 7/0.08 18/0.05	0.2	<500	0.55		Kevlar/Nylon
34	1/0.2 7/0.06	0.2	<560	0.45		Kevlar/Nylon
36	1/0.16 7/0.05	0.16	<870			Kevlar/Nylon
38	1/0.127 7/0.04	0.12	<1400			Kevlar/Nylon
40	1/0.08	0.08	<3500			Kevlar/Nylon

Specification Data Sheet Of Our High Temperature Resistant Circle Diameter PU Fexible Cable

P/N	Normal Spec.	Twisting OD	Resosyamce/KM	Standard OD	Conductor(Option)	Filling(Option)
10	105/0.2541/2.588	2.588	<5	3.2	99.99% Copper Tinned Copper Sliver-Plated Copper Nickel Copper	NO
12	65/0.254 1/2.05	2.05	<7	2.65		NO
14	41/0.254 1/1.63	1.63	<10	2.2		NO
16	26/0.254 1/1.29	1.29	<15	1.9		NO
18	41/0.16 165/0.08 105/0.11	1.02	<25	1.6		NO
20	20/0.16 110/0.08 70/0.1	0.81	<35	1.4		NO
22	17/0.16 65/0.08 41/0.1	0.64	<55	1.2		NO
24	26/0.1 41/0.08 120/0.05	0.58	<90	1		NO
26	7/0.16 24/0.08 65/0.05	0.48	<125	0.9		NO
28	11/0.1 19/0.08 45/0.05	0.38	<210	0.85		NO
30	7/0.1 19/0.06 28/0.05 1/0.3	0.3	<320	0.7		NO
32	1/0.254 7/0.08 18/0.05	0.2	<500	0.55		NO
34	1/0.2 7/0.06	0.2	<560	0.45		NO
36	1/0.16 7/0.05	0.16	<870			NO
38	1/0.127 7/0.04	0.12	<1400			NO
40	1/0.08	0.08	<3500			NO
