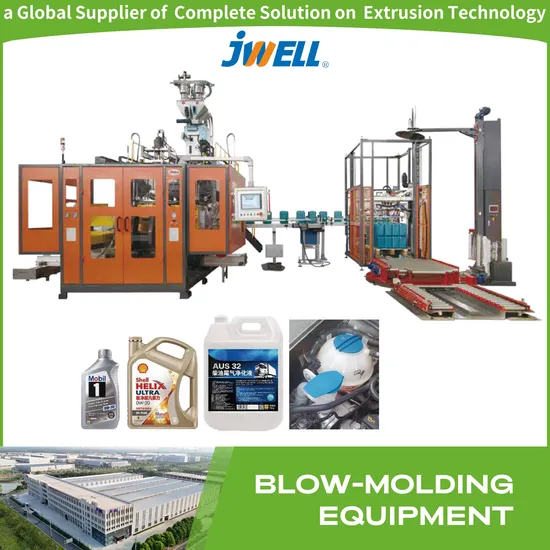

Jwell Jwz-Bm30/50/100 Blow Molding Machine for Road Pyramids, Logistic Barrels, and Custom Plastic Products
| US$99,999.00-299,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BM50
Raw Material
PE
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
ISO9001:2008
After-sales Service
24-48h Response.on-Site Installation & Testing
Max Plasticizing Capacity (PE)
180kg/H
Main Screw Diameter
90mm
Transport Package
up to You
Specification
10.5ton
Trademark
JWELL
Origin
China
HS Code
84774041
Production Capacity
120kg/H
Packaging & Delivery
Package Size
2500.00cm * 2000.00cm * 1500.00cm
Package Gross Weight
5000.000kg
Product Description
Product Parameters| Model | Unit | BM30 | BM50 | BM100 | BM160 |
| Max product volume | L | 30 | 50 | 100 | 160 |
| Dry cycle | Pc/h | 600 | 450 | 360 | 300 |
| Die head structure | Accumulating type | Accumulating type | Accumulating type | Accumulating type | Accumulating type |
| Main screw diameter | mm | 80 | 90 | 100 | 100 |
| Max plasticizing capacity(PE) | kg/h | 120 | 180 | 190 | 240 |
| Driving motor | KW | 37 | 45 | 55 | 90 |
| Accumulating volume | L | 5.2 | 6.2 | 12.8 | 18 |
| Oil pump motor power | KW | 22 | 30 | 30 | 30 |
| Clamping force | KN | 280 | 400 | 600 | 800 |
| Space between platen | mm | 400-900 | 450-1200 | 500-1300 | 500-1400 |
| Platen size W*H | mm | 740*740 | 880*880 | 1020*1000 | 1120*1200 |
| Max.mould size | mm | 550*650 | 700*850 | 800*1200 | 900*1450 |
| Heating power of die head | KW | 20 | 28 | 30 | 30 |
| Machine dimension L*W*H | m | 4.3*2.2*3.5 | 5.6*2.4*3.8 | 5.5*2.5*4.0 | 7*3.5*4.0 |
| Machine weight | T | 12 | 13.5 | 16 | 20 |
| Total power | Kw | 95 | 110 | 135 | 172 |
Detailed Photos
Product Description
Product Application: This machine is specifically designed for producing industrial-grade pallets of various sizes and types, including lightweight and heavy-duty designs. Ideal for logistics, storage, and transportation applications.
Key Features: Versatile Production: Capable of manufacturing a wide range of pallet designs for industrial and commercial use. Efficient Extrusion: High-output extrusion system for enhanced production capacity. Precision Molding: Accumulating die head ensures uniform and accurate material distribution. Advanced Control: Equipped with a hydraulic servo control system for smooth and energy-efficient operations. Customizable Functions: Optional features such as bottom sealing, product ejection, and core-pulling mechanisms for tailored production needs. Company Profile
