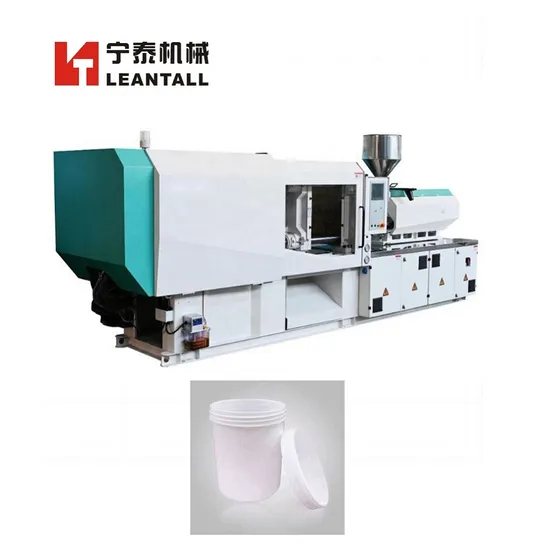

120 Ton Plastic Barrel Customized Injection Molding Machine

120 Ton Plastic Barrel Customized Injection Molding Machine

US$14,000.00
1-2 Sets
US$13,500.00
3-4 Sets
US$13,000.00
5+ Sets

Basic Info.

Model NO.
NT-1012
Type
Preform Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
ISO9001:2008
Product Name
Plastic Injection Molding Machine
Machine Type
Horizontal/Hydraulic/Electric
Application
Plastic Industry
Operating Langauge
English/ Customization
Auxiliary Equipment
Robot Arm/Chiller/Crusher/Auto Loader.etc
Delivery Time
45-60 Days
Shipping Method
Full 20gp/40gp/40hq Container
Transport Package
at Seller′s Option
Specification
1200KN
Trademark
LEANTALL
Origin
China
Production Capacity
20sets/Month

Packaging & Delivery

Package Size
550.00cm * 200.00cm * 250.00cm
Package Gross Weight
4000.000kg

Product Description

120 Ton Plastic Injection Molding Machine
Plastic injection molding Machine consists of a plasticizing system, injection system, clamping system, and transmission system.
We have been applying die-casting technologies to injection molding machines for many years, like in mechanical, hydraulic, electric control, etc for comprehensive improvement, a perfect combination of dynamic pressure casting and speed.
To improve the stability of syringe production, we specially add an infrared heating coil to the standard injection molding machine. In addition, we recommend adding a servo motor system, although the servo motor will increase the cost of the injection molding machine, the servo motor system has the advantage of energy saving, in long-term production, it is more economical, so nowadays more and more companies choose servo motor system.
Item Unit NT100 NT120 NT140 NT170 NT180 NT200
SCREW DIAMETER mm 30 32 35 38 42 45 38 42 45 42 45 50 42 45 50 45 50 55
SCREW L/D RATIO L/D 23.5 22 20 22 20 18.5 22 20 18.5 21.4 20 18 21.4 20 18 22.2 20 18.2
INJECTION STROKE mm 165 165 165 170 170 170 170 170 170 225 225 225 225 225 225 250 250 250
INJECTION SPEED Mm/sec 88 88 88 90 90 90 112 112 112 118 118 118 94 94 94 103 103 103
SHOT VOLUME(THEORETICAL) CM3 117 133 158 193 235 270 193 235 270 312 358 442 312 358 442 397 490 594
INJECTION WEIGHT(PS) g 106 121 144 175 213 245 175 213 245 284 326 402 284 326 402 361 445 540
INJECTION PRESSURE Mpa 230 203 170 177 145 126 177 145 126 174 152 123 218 190 154 221 179 148
INJECTION RATE cm3/sec 62 70 84 102 124 143 127 155 178 163 187 231 130 149 184 163 202 244
SCREW SPEED rpm 181 190 212 210 210 225
CLAMP FORCE Kn 1000 1200 1400 1700 1800 2000
OPEN STROKE mm 320 360 390 435 435 435
SPACE BETWEEN TIE BARS mm×mm 360*360 420*380 420*420 470*470 525*465 480*480
MAX.MOULD HEIGHT mm 350 430 460 550 550 550
MIN.MOULD HEIGHT mm 150 150 160 180 180 180
EJECTOR STROKE mm 90 107 120 129 129 135
EJECTOR FORCE Kn 30 40 46 46 46 46
EJECTOR NUMBER N 5 5 5 5 5 5
MAX.PUMP PRESSURE Mpa 16 16 16 16 16 16
SEVRO DRIVE POWER Kw 11 15 18.5 22 22 30
HEATING POWER Kw 7 7.5 7.5 9.9 9.9 12.5
MACHINE DIMENSION(L*W*H) m×m×m 4.2*1.2*1.8 4.6*1.3*2.1 4.8*1.3*2.1 5.3*1.4*1.2 5.4*1.4*2.3 5.4*1.45*2.1
MACHINE WEIGHT(ESTIMATE) T 3.1 3.5 3.8 4.9 5.4 5.5

ADVANTAGES
1. Clamping Unit

Reliable 5-pint twin-toggle locking mechanism; Platens are designed under Finite-Element Analysis; High-speed clamping is stable while low-pressure protection is accurate; Automatic lubrication system; Oil shortage alarm; Ejector stroke precisely controlled by transducer; Plenty of ejector modes for you to choose.



2. Injection Uni
Double-cylinder balance injection system; Shot weight is precisely controlled by transducer; Using a hydraulic motor to carry out variable speed.

3. Hydraulic Unit
Domestic high-tech divided hydraulic system; Hydraulic safety device; and Imported high-quality hydraulic components are applied.



4. Electric Unit

Special controller for plastic injection molding machine; All the main components are imported from famous companies, for example, TE(France), Gefran(Italy), etc.


Q: Are you a manufacturer or trading company? A: We are a manufacturer with decades of experience, located in Zhejiang province. Q: What is the product range? A: Focus on the manufacturing and developing plastic injection molding machines and their auxiliary equipment such as robot arms, cooling towers, chillers, etc. Q: Where is your main selling market? A: We have business domestically, in the USA, Russia, Indonesia, Egypt, Turkey, Uzbekistan, Pakistan, etc. Q: Will you offer field installation and operator training at the buyer's factory? A: Yes, we will arrange our skilled engineers for field installation and training. Q: What is the delivery time(equipment production time)? A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment. Q: Do you also have the source for molds and spare parts? A: Yes, we can offer competitive quality and reasonable prices. Customized as required. Q: What is the standard of the package? A: Wooden case packing for the auxiliary equipment, and bare packing for the plastic injection molding machine. Full container shipment is highly suggested.
