Ce Approved Blow Molding Machine (for 5-Gallon Pet Bottle)

Product Description

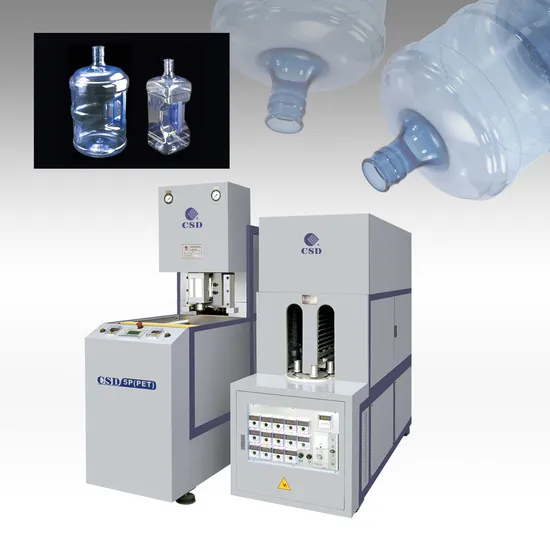

Complete Set of Semi-automatic Blow Molding Machine for 5-Gallon PET Bottle
SETTING:
AIR BLOWING VALVE :PARKER (SWITZERLAND)
AIR VALVE FOR MOLD CLAMPING:BOSCH (GERMANY)
AIR CYLINDER :AOSI (SINO-KOREA JOINT VENTURE FACTORY)
AIR PIPE FOR BLOWING :TOKAI(JAPAN) MAX,PRESSURE :50KGS
AIR PIPE FOR CLAMPING: ,TPUCO (TAIWAN) MAX.PRESSURE :16KGS
OIL LUBRICATOR :MINDMAN (KOREA)
SWITCHES : OMRON (JAPAN)
ALL THE AIR PIPE CONNECTOR: SANG-A (KOREA)
HEATING LAMP : LOW POWER

SEMI-AUTOMATIC BLOW MOLDING MACHINE MODEN CSD-5P(PET)
Item			UNIT	TECHNICAL DATA
Max. Volume of Product			L	3.8-26.6
Production Capacity			pcs/h	70-100
Neck Size of Product			mm	<100
Useful Area of Mould Plate			mm	410×440
Max.Mould Thickness			mm	400
Min.Mould Thickness			mm	350
Mould Stroke			mm	320
Clamping Force			kn	100
Stretching Stroke			mm	530
Working Pressure			Mpa	1.0-1.25
Blowing Air Pressure			Mpa	2.5-3.0
Power of Main Blower			kw	2
			A	4
Weight of Main Blower			kg	2100
Measurement of Main Blower			mm	2750×680×2100
Weight of Preheater			kg	560
Power of Preheater			kw	18
			A	27
Measurement of Preheater			mm	2200×750×1850
High Pressure Air Compressor			kw	9
			Mpa	3
			m³/min	0.7
			kg	770
Low Pressure Air Compressor			kw	7.5
			Mpa	1.25
			m³/min	0.8
			kg	340
Front & Rear Air Filter			Mpa	3
			m³/h	1.0
			mm	500×300×700
			kg	20
Voltage Regulator			KVA	50
			mm	800×620×1400
			kg	30
Air Dryer			m³/min	0.7
			kg	40

About us Changshengda Machinery (Zhejiang) Co. Ltd. (CSD) was established in 1992 with a registered capital of $5.2 million USD from Australian sole-ownership enterprises, and boasts a 72, 000 square meter factory zone. The company specializes in research and development in environmental protection, high-precision energy saving injection molding machines for medical and food industry, PET two stage automatic injection stretch blow molding machines, automatic extrusion blow molding machines and various types of plastic moulds and other hi-tech products. Its produce a wide range of goods such as food and beverages packing, plastic goods, pharmaceuticals packing, cleaning products, auto parts, toiletries, home appliances, construction materials, electronics, and so on. CSD's products achieved exceptional sales in South East Asia, the Americas, Eastern Europe, the Middle East, Europe and Africa. Currently the company is working in conjunction with ten of China's most famous brands. CSD's products have gained recognition both inside and outside China as a highly precise, energy-efficient and incredibly streamlined manufacturing company. CSD boasts a standardized and streamlined production and operations system which has received ISO9001 quality authentication. The company has also been giving the following honorary titles: "Provincial Hi-tech Enterprise R&D Centre", "Zhejiang Province Hi-tech Enterprise", "Zhejiang patent demonstration enterprise", among others. CSD's business ethic primarily focuses on three aspects - one, acting in good faith at all times; Two, making science and technology a priority; And three, thriving on producing superior quality products. The company makes use of advanced design concepts, sophisticated processing equipment and incredibly precise manufacturing methods to meet the needs of high-end clients both inside and outside China. CSD's products are continuously being innovated in a bib to ensure product quality and secure a reputable corporate image. The company also promotes the service commitment of one station service. The establishment of CSD after-sales centers all around the world not only demonstrates the company's dedication to thorough after-sales support, but also shows a commitment to providing excellent goods at reasonable prices to both new and existing clients. CSD's employees are driven towards pluralism, standardization and the industrialized development of new technologies, and the company is committed to being an industry leader in plastic goods manufacturing.
