Highly Reliable with Low Loss Cast Resin Dry Type Transformer up to 38.5kv

Product Description

First company in China to pass KEMA E2, C2, F1 tests for cast resin transformer.

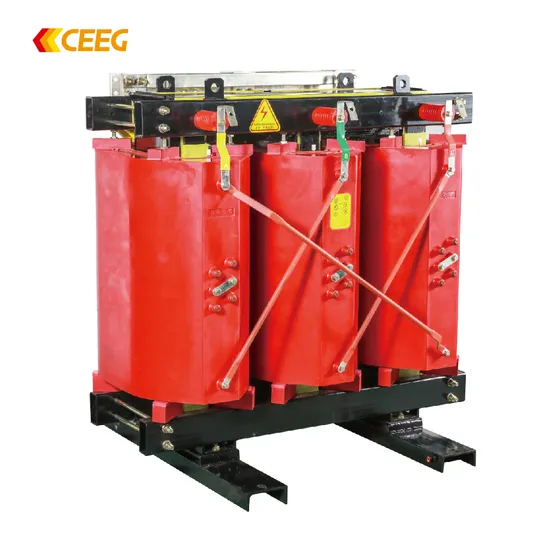

CEEG's cast resin try type transformer holds a number of patents. The product is well-suited for indoor settings demanding fire and explosion protection, high temperature and moisture resilience, like commercial centers, residential areas, hospitals, and factories. The vacuum cast coil transformer also meets the rigorous standards for special outdoor environments, such as petrochemical enterprises. Furthermore, it boasts excellent resilience to seasonal load variations and overload conditions, making it ideal for choosing encapsulated distribution transformers.
Working Environment
Working temperature: -20ºC~60ºC;

Insulation	Material	expoxy resin class H / class C Nomex paper
	Structure	HV coil is multi layer sectional cylinder structure, LV coil is foil with longitudinal air chamber structure.
Reliability	Insulation class	H(180ºC)
	Tem. rise of coil	125K(normal 100K)
	Over-load capacity	continuously 120%
	Cooling method	AN/AF
Environmental Protection	Noise	Low
	Recycling	easy recycling and low pollution

Product Features
1. Highly reliable with low loss, low partial discharge (below 5PC), low noise, and robust heat dissipation capacity, with the ability to withstand 150% overload in forced air cooling conditions.
2. Outstanding moisture-resistant performance, capable of operation in 100% humidity conditions.
3. Safety, fire protection, and pollution-free operation, suitable for direct installation in load centers.
4. Equipped with a comprehensive temperature protection and control system.
5. Maintenance-free, easy to install, and offers low overall operating costs.
Export Case
We began to supply the CEEG SCB and SC series of cast resin dry-type transformers to LafargeHolcim in 2014,and the partnership continues. These transformers have been installed and operated well in LafargeHolcim's cement plants in Nigeria, the Philippines, and Cameroon.

Class F Insulation SCB10-315~2500/10
Rated High Voltage:10(10.5,11,6.6,6.3,6)kV
Rated Low Voltage:0.4kV
Vector Group: Dyn11or Yyn0
Insulation Level: Ll 75 AC 35 / Ll AC 3; Tap Range:±2*2.5%
Model	UK%	P0(W)	Pk(120ºC)(W)	I0%	LPA(AN)dB	Gauge m x n (mm)
SCB10-315/10	4	880	3470	1.0	55	660 x 660
SCB10-400/10	4	980	3990	1.0	55	660 x 660
SCB10-500/10	4	1160	4880	1.0	57	660 x 660
SCB10-630/10	4	1340	5880	0.85	57	820 x 820
SCB10-630/10	6	1300	5960	0.85	57	820 x 820
SCB10-800/10	6	1520	6960	0.85	58	820 x 820
SCB10-1000/10	6	1770	8130	0.85	58	820 x 820
SCB10-1250/10	6	2090	9690	0.85	60	820 x 820
SCB10-1600/10	6	2450	11700	0.85	60	820 x 820
SCB10-2000/10	6	3050	14400	0.70	62	820 x 820
SCB10-2500/10	6	3600	17100	0.70	62	820 x 820

Class F Insulation SCB11-315~2500/10
Rated High Voltage:10(10.5,11,6.6,6.3,6)kV
Rated Low Voltage:0.4kV
Vector Group: Dyn11or Yyn0
Insulation Level: Ll 75 AC 35 / Ll AC 3; Tap Range:±2*2.5%
Model	UK%	P0(W)	Pk(120ºC)(W)	I0%	LPA(AN)dB	Gauge m x n (mm)
SCB11-315/10	4	790	3470	1.0	55	660 x 660
SCB11-400/10	4	880	3990	1.0	55	660 x 660
SCB11-500/10	4	1040	4880	1.0	57	660 x 660
SCB11-630/10	4	1200	5880	0.85	57	820 x 820
SCB11-630/10	6	1170	5960	0.85	57	820 x 820
SCB11-800/10	6	1360	6960	0.85	58	820 x 820
SCB11-1000/10	6	1590	8130	0.85	58	820 x 820
SCB11-1250/10	6	1880	9690	0.85	60	820 x 820
SCB11-1600/10	6	2200	11700	0.85	60	820 x 820
SCB11-2000/10	6	2740	14400	0.70	62	820 x 820
SCB11-2500/10	6	3240	17100	0.70	62	820 x 820

Class F Insulation SCB12-315~2500/10
Rated High Voltage:10(10.5,11,6.6,6.3,6)kV
Rated Low Voltage:0.4kV
Vector Group: Dyn11or Yyn0
Insulation Level: Ll 75 AC 35 / Ll AC 3; Tap Range:±2*2.5%
Model	UK%	P0(W)	Pk(120ºC)(W)	I0%	LPA(AN)dB	Gauge m x n (mm)
SCB12-315/10	4	705	3470	1.0	55	660 x 660
SCB12-400/10	4	785	3990	1.0	55	660 x 660
SCB12-500/10	4	930	4880	1.0	57	660 x 660
SCB12-630/10	4	1070	5880	0.85	57	820 x 820
SCB12-630/10	6	1040	5960	0.85	57	820 x 820
SCB12-800/10	6	1210	6960	0.85	58	820 x 820
SCB12-1000/10	6	1410	8130	0.85	58	820 x 820
SCB12-1250/10	6	1670	9690	0.85	60	820 x 820
SCB12-1600/10	6	1960	11700	0.85	60	820 x 820
SCB12-2000/10	6	2440	14400	0.70	62	820 x 820
SCB12-2500/10	6	2880	17100	0.70	62	820 x 820
