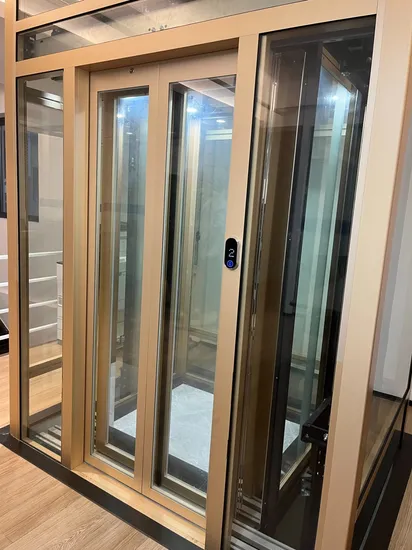

Villux Elegant Sturdy and Energy-Saving House Villa Elevator Golden Lift Elevator

Product Description

Villux Home Lift Technical Parameters

Spercification	Parameter
Rated capacity(kg)	400
Speed(m/s)	0.4
Drive method	Steel belt traction drive
Door control	VVVF
Traction machine	Permanent Magnet Synchronous Gearless Motor
Control System	CTRL80 Integrated Controller
Motorrated power(kW)	1.2
rated current(A)	5
Starting power atrated load(A)	7.5
Power	Standard: Singlephase220V(Optional 380V);3.5kVA
Minimum wiringrequirements	2*2.5 mm2 coppersheath cable+2.5mm'yellow-green cable
travel height(m)	≤18
Minimum floor height	Door height+350 (2PCO)/Door height +375 (4PCO)/Door height +420 (side opening)
Shaft size (width*Depth)mm	1600*1545	1350*1615	1800*1100
Ca size(mm) (width*depth*height)	1200*1100	950*1100	1250*850
Door opening1350*1615 size(mm) (width*height)	Central Opening(narrowjamb)750*2000	Left Side Opening(narrowjamb)700*2000	Central Opening(narrowjamb)800*2000
Counterweight arrangement	Rear counterweight		Side counteweight
Car height(mm)	2100
Overhead height(mm)	≥2900		≥2950
Pit depth(mm)	With marble: 225 With PVC:200

Note:1.Maximum area of car=(rated load/250)m2
2. Door height refers to the requirements of civil layout drawings
3. Please consult our salesman for the shaft size.We canprovide solutions such as aluminum shaft structure and hand door.

Technical Specification

Car Wall Finished
Technical Specification

IFE History1987:
Dongguan Qingxi Machinery Factory was established
1990:
Renamed as Dongguan Qingxi Elevator Factory
2000:
Signed a strategic cooperation agreement with the B&Q Group
2007 :
Won the 9th Term Contract of the Singapore Housing
2008:
Obtained the German TUV-ISO9001 quality system certification
2010 :
The 110,000 square meters new factory started production
2017 :
Successfully listed on the Shenzhen Stock Exchange (stock code: 002774)

INTERNATIONAL LEADING STANDARD HEIGHT
Always breaking through with science and technology IFE Elevators has always insisted on independent R&D and branding strategy, our R&D and engineering team has more than 700 professionals, and has awarded more than 140 patents by National IP Bureau and out of which 22 patents are for invention and 50 patents are for elevator safety
IFE Factory Show
ADVANCED TECHNOLOGY PRODUCTS FOCUS ON THE DETAILS OF THE PERFECT SHOW
