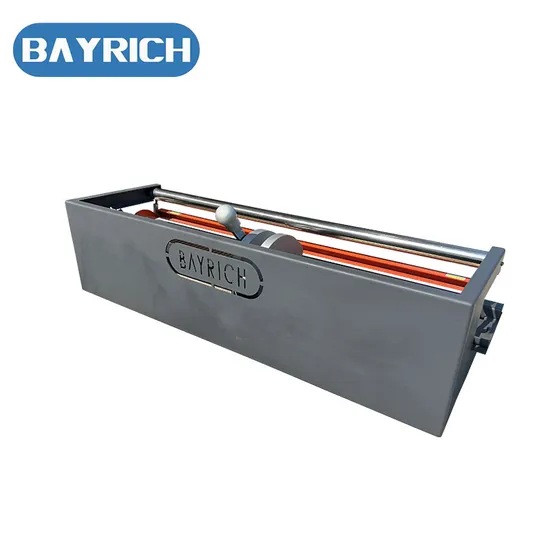

PVC PU Rubber Conveyor Belt Manual Type Finger Puncher

Product Description

Conveyor belt manual finger Punching machine is designed to punch fingers on the end of lightweight thermoplastic conveyor belt.As a preparation of making single fingers or finger over finger before splicing a conveyor belt.
The punching forces is created by pulling the lever.
Easily done with a person Because of it's easy set-up and manual operation.
Ideal tool for working onsite as well as on workshop.
Portable, manual and easy handling.
No electricity or pressure required.
Open ended for wider conveyor belts.
Single or Finger over finger punching.
★Features
1.The newest manual finger puncher, have different models width from 24″ (300 mm) to 60″ (1500 mm) (no width limited), speical width can make for you!
2.Used for PVC PU belt etc.
3.Light weight and portable design, very good choice for outdoor work use, no need electric power, no need air compressor, no need bring hydraulic pump etc.
4.Both side, open design, no width limited
5.Easy change the blade accords to work, also different blade size can make accords to your requirements (20×50,15×75,10×80,20×80 and etc., also round and sharp blade is optional)
6.Special Fingers:Diamond Finger,Joint More Tighting
7.Single finger splice & double fingers splice
★Technical Datasheet

Model	FM300	FM600	FM900	FM1200	FM1500
Length	530mm	850mm	1120mm	1340mm	1550mm
Width	390mm
Height	380mm
N.W.	19KG	27KG	36KG	41KG	45KG
Packing Size	680*510*510mm	960*510*510mm	1260*510*510mm	155*510*510	1870*510*510mm
G.W.	35KG	46.5KG	59KG	70KG	96KG

★Machine Detail

Punching Head-Aluminum alloy	Fixed latch--Prevent the punch from moving and colliding during transportation.
Punching Head and Punching Board (Blade)	Pressure Regulator

★Optional Accessories

Finger Board(15*75,20*80,20*60etc)

★FAQ
Q1:What's the MAX.belt thickness can be worked?
A1:Single Finger, PVC 4mm,also 3.6mm PVK belt (It's vert hard to work), PU 2mm
Double Finger, PVC5mm or 6mm,PU 3mm
Q2:Can it punch double finger / finger over finger?
A2:Yes,it can,it has a stepped design,release the part as below and move the finger board step back and up.
