Experience The Highest Safety Standards with Our LNG Cryogenic Tanks LNG Lo2 Ln2 Lar Lco2 Cryogenic Storage Tank

Product Description

Product Description
We adopt high vacuum multi-layer winding technology, which has better insulation performance and longer vacuum service life, The material of our products is mainly 304 stain-less steel and carbon steel, Which is suitable for the use of environment in all regions of the world . Compared with traditional tanks, our products are lighter in weight. It is more conducive to the transportation of products and the use of customers. Very low static evaporation rate, reduce the loss in the use process.
The company uses automated equipment to detect production and improve production efficiency. Short delivery time, good thermal insulation performance and competitive price are the biggest advantages of our products. Can be customized according to customer specified valve, pipe, and location production.
Products ranging from 1 to 500m²are available can be customized according to different needs of customers. The working pressure of the storage tank ranges from 0.8Mpa to 3.5Mpa.

Product Parameters

Technical Parameters of Horizontal Gryo-Storage Tanks
Gross Capacity(m³)	Working Pressure (MPa)	Max. Theoretical Filling Volume (kg)					Weight (kg)		Material		Pressurizer (N.m³/h)	Boundary Dimensionmm(mm) (Length * Width * Height)		Diameter of Outer Vessel (mm)
		LO2	LN2	LAR	LNG	LCO2	strain strengthening	Non - strain strengthening	Inner Vessel	Outer Vessel		strain strengthening	Non-strain strengthening
3	≤0.80	3237	2300	4004	1210	/		1670	S30408	Q345R	15	3350*1920*1614	3350*1612*1920	1600
	≤1.60					/	1670	1905
	≤2.10					3167	1791	2142
5	≤0.80	5198	3693	6429	1943			2491	S30408	Q345R	15	3570*2112*2400	3570*2114*2440	2100
	≤1.60					/	2595	2889
	≤2.10					5085	2823	3280
10	≤0.80	10818	7686	13380	/			3617	S30408	Q345R	15	6080*2362*2114	6080*2362*2116	2100
	≤1.60				/	/	3773	4529
	≤2.10				4042	10581	4574	5068

Technical Parameters of Vertical Gryo-Storage Tanks
Geometric Volume (cm³)	Working Pressure (MPa)	Liquid Gases weight ( kg )					Tare Weight (kg)	Inner Vessel	Outer Vessel	Pressurizer (N.m³/h)	horizontal (Length * Width * Height)	Diameterof Outer Vessel (mm)
		LO2	LN2	LAR	LNG	LCO2					Boundary Dimensionmm( mm )
3	≤0.80	3066	2178	3792	1145	/	1606	S30408	Q345R	9	3464*1866*1751	1600
	≤1.60					/	1864(1930)
	≤2.16					2999	2110
	≤2.16	/	/	/	/	3167	2250	16MnDR		/
5	≤0.80	4924	3499	6091	1840	/	2230	S30408	Q345R	10	3534*2365*2165	2000
	≤1.60					/	2595(2663)
	≤2.10					4816	2995
	≤2.16	/	/	/	/	5084	3127	16MnDR		/
6	≤0.80	6093	4329	7536	2276	/	2460	S30408	Q345R	10	4034*2365*2165	2000
	≤1.60					/	2951(3036)
	≤2.10					5959	3335
	≤2.16	/	/	/	/	6290	3485	16MnDR		/
8	≤0.80	8208	5832	10152	3067	/	3000	S30408	Q345R	20	4950*2365*2165	2000
	≤1.60					/	3860
	≤2.10					8028	4230
	≤2.16	/	/	/	/	8474	4430	16MnDR		/
10	≤0.80	10260	7290	12690	/	/	3617	S30408	Q345R	20	5806*2365*2165	2000
	≤1.60				/	/	4529
	≤2.10				3834	10035	5068
	≤2.16	/	/	/	/	10592	5350	16MnDR		/
15	≤0.80	15390	10935	10935	/	/	4950	S30408	Q345R	20	8025*2365*2165	2000
	≤1.60				/	/	6220
	≤2.10				5751	15052	6950
	≤2.16	/	/	/	/	15052	~7450	16MnDR		/

Technical Parameters of Gryo-Storage Tanks for Carbon Dioxide (CO2)
Type of Insulation	Gross Capacity	Effective Volume	Work Pressure (MPa)	Tare Weight (kg)	Max. Theoretical Filling Volume for LCO2	Overall Dimensions(mm) (Length * Width * Height)
Carbon Foam Insulation	2m³	1.9m³	2.16	755	2119	3250*1030*1265
	3m³	2.84m³		1050	3167	2900*1330*1565
	5m³	4.74m³		1850	5285	3480*1530*1865
Two Carbon Vacuum Insulation	2m³	1.9m³	2.16	1780	2119	3730*1212*1412
	3m³	2.84m³		2050	3167	3425*1512*1754
	5m³	4.74m³		3070	5285	3900*1916*2162

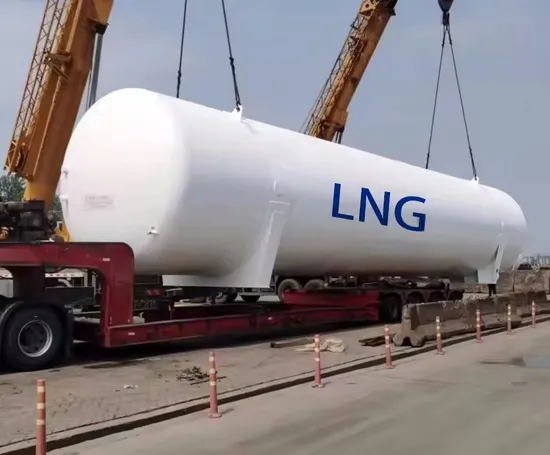

Detailed Photos

Production Workshop

Company Profile
Hebei Huayu Environment Engineering Co., Ltd. is an emerging high-tech enterprise specializing in the design, manufacturing and R & D of low-temperature pressure vessels. The company's leading products include low-temperature welded insulation bottles, low-temperature storage tanks, D1 and D2 pressure vessels. With an annual output of more than 40000 low-temperature bottles and more than 2000 storage tanks. The company has professional production and testing equipment at home and abroad, such as large-scale hydraulic tilting plate bending machine, full-automatic NC four roll plate bending machine, full-automatic NC longitudinal seam and circumferential seam welding machine, vacuum pumping unit, NC winding machine, electrostatic spraying, helium mass spectrometer leak detector, spectrum analyzer, full-automatic ultrasonic flaw detector, magnetic powder flaw detector, X-ray digital imaging system and so on.

Certifications
Packaging & Shipping

FAQ
Q1:Are you manufacturer?
A1:Yes, we're an experienced manufacturer.

Q2:Can we use our LOGO and design?
A2:Of course, we offer OEM/ODM service.

Q3:What's the sample cost?
A3: The sample and shipping charges will be required.
Once the mass production order is placed, the sample charges will be deducted.

Q4:Do you inspect the finished products?
A4: Yes, each step during production will be inspected by our Qc team.

Q5:What's the payment term?
A5:TT,LC, Trade Assurance Payment,Paypal, Western Union.

Q6:Any warranty for the goods?
Q6:Normally 1 year warranty after delivery except artificial damage.
