Agricultural Farm Machinery Hulling Grain Rice Fine Seed Cleaner From China Helida Company

Product Description

Product Description

Large capacity!The capacity is 15-30 ton per hour for comodity grain,for soybean can be 8-15 tons per hour. High precision!The impurities removal rate is more than 99.9%,the mildew removal rate is more than 99%. Full function!Double air cleaner ,single/double gravity table,double deduster,double impurities outlet. Wide range of applications!Various food grin crops seeds can be used. Easy to operate!Single installation,no need to repeat debugging. The environment is good !A separate double dust removal system guarantees the working environment. Low energy consumption!High work rate,energy saving and labor saving. Easy to move! Specially made high strength tire bears heavy load and walks lightly. The machine has been declared a national patent,and counterfeiting will be investigated
These widely-use units come in a variety of models with two to eight vibrating screens. In all cases, the cleaning principles are the same. The grains are fed into the hopper where they are evenly distributed by a feed roller and transferred through a controlled gate on the top sieve. In the process the grains are subjected to primary aspiration by the use of air trunk which drains off chaff, straw, dust or deceased grains. Then the material is passed through sieve layer for separation according to their width and thickness. After the separation, the graded material is subjected to air sifter and aspiration chamber where remaining light particles are sucked off by a strong upward draught of air.
The graded material and the impurities are automatically discharged in separate chutes. These machines are suitable for efficient cleaning of beans,wheat,soya beans,sesame,corn,clove seeds and other grain-like materials.Gentle feeder and the belt guard provide efficient cleaning of grain without causing any damage to the particles. High in functionality, The shoes of the machine can easily be replaced for different type of cleaning. Our range of 5XFZ series feed cleaner is specially designed for heavy-duty operation at the most economical prices.

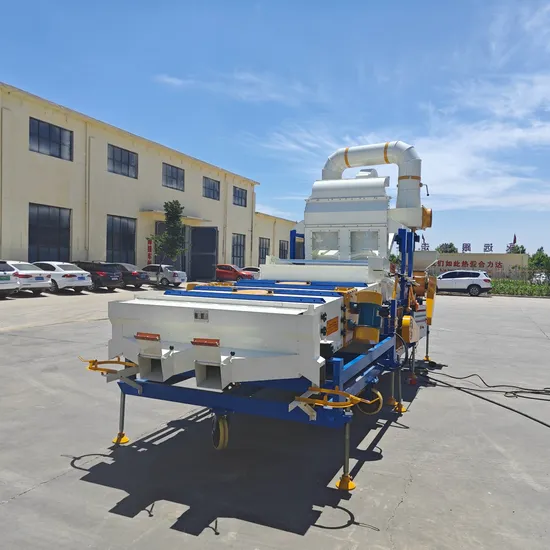

Detailed Photos

Our machines are well-made and made of thick materials. The machines are durable and efficient in processing grains and other grains. They are easy to operate and have bright colors. Product Parameters

Model	Capacity t/h	Power kw	Weight kg	Size L×W×H	Sieve dimension L×W×Layer	Mark
5XFZ-15BX	10-14	15.5	2800	6660*2450*3550mm	2400*1500*3	Environment friendly
5XFZ-15S	15	30	3600	8750*2400*3600mm	2400*1500*3	Environment friendly
5XFZ-50S	15-25	34.9	4300	8900*3100*3500mm	2400*1800*3	Environment friendly

Certifications
We are a manufacturer of machines. Our machines have our own brands and patents, and have obtained European CE certification, BV certification, and SGS certification. Packaging & Shipping
Our machines are small and medium-sized machines, so our transportation methods are divided into two types, one is full container transportation and the other is LCL transportation. In the case of full container transportation, we usually do not pack wooden boxes. We will wrap the machine spare parts with materials to prevent collisions, place them reasonably in the container, and use strapping or iron wire to fix the machine and spare parts in the container. inside to prevent collisions.
Another type of LCL transportation, when putting the machine into the wooden box, we will also carefully wrap the machine spare parts to prevent collision. Then secure the machine with reinforcement measures. Company Profile
Hebei HELIDA Grain Selecting Machinery Technology Co., Ltd. is a professional enterprise which is engaged in the professional research, development and production of seed processing machines, grain cleaning machines and agricultural byproduct processing machines. "Service, Innovation, Professional, Preciseness" is our operation principle. We have built a rigorous and professional team, which takes senior engineers as the core, an effective sale team and a skillful production team. All of the members in our teams have rich experience and are the backbone in this industry.
Products Workflow Chart
Firstly, prepare raw material as steel plates, channel steel, pipes, and other sourcing accessories. Then plates will be cut by laser cutter, plasma cutter or plate shearer according to drawing.
Later on plates will be bent to shape, axis parts will be processed through lathing, milling, drill. Machine parts will be welded or bolted together.
When all parts are finish and main frame is ready, they will be paint/ coated. Next step is machine assembly and testing.
Machine passed quality control will be packaged and ready for delivery FAQ
Q: Are you the factory?
A: Yes,We are a professional grain cleaning and seed processing machine manufacturer. We dedicated in this industry for 14 years.
We can offer you competitive machines.
Q: Do you accept small order and what's your MOQ?
A: Yes,We accept small order and trial order,MOQ is 1set
Q: What is your payment terms?
A: T/T, L/C, Western Union, Cash etc.
Q: Can you ship to my country?
A: Yes, no problem .
Please let me know your destination port and I will check sea freight for you.
Q: How do we visit your factory?
A: HELIDA Machinery is located in Shijiazhuang City, Hebei Province, China.20 minutes drive
from Shijiazhuang Zhengding International Airport,25 minutes drive from Shijiazhuang
Railway Station
Q: How long is your delivery time?
A: For single machine, we can use 6-10 days to manufacture machine.
For processing plant, we can use 25-30 days to finish, We also need one day to test.
We will book a fast ship for you.
Q: I want to more machines , how can I get latest catalogue for reference?
A: You can contact us by Trade Manager or Email ,
We will give you our latest catalogue according to your information.
Q: How can you guarantee the quality and the warranty?
A: Quality control by incoming material inspection, 100% in-production check and random
check after packaging.
Spare parts and technical solutions provided timely for machine failure.warranty is 1 year.
Q: Do you help to install the machines?
A: Generally,the instructions are attached with products,if you need install,our engineers will
help you to do it but the cost is born by buyer.
