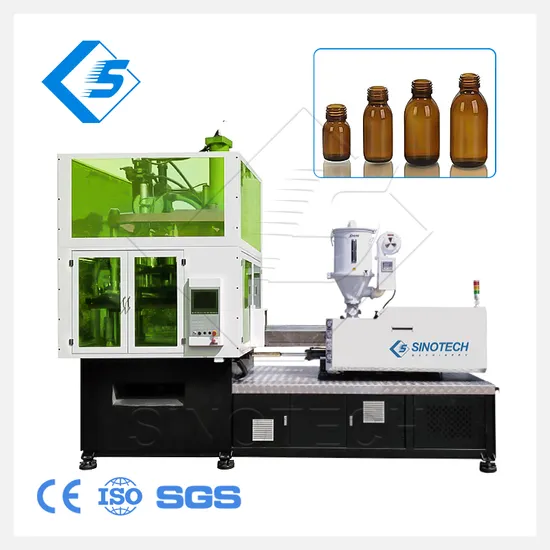

Computerized CE Approved Pet Injection Stretch and Blowing Mould Machine Isb1100-2/800n-3/800an-3/1100n-3

Product Description

Computerized CE Approved PET Injection Stretch and Blowing Mould Machine ISB1100-2/800N-3/800AN-3/1100N-3
Product Description
This machine has three stations, injection preform, blowing & stretch and product release. The raw material comes from the hopper to the injection screw to inject preform; the plate rotates preforms to blow/stretch blow station with themselves heat, without any reheating for blowing,then the product will rotate to release station and drop down, It's fully automatically cycle rotation working mode,no need to buy bottle preform, no waste, high degree of automation, finished products smooth and beautiful.
Commonly used in 10-1000 ml PET cosmetic bottle, milk bottle, sports water bottle, pharmaceutical packaging, PC bottle, red wine cup and LED lampshade, etc

Product Parameters

ITEM		UNIT	IB 1100-2	ISB 800N-3	ISB 800AN-3	ISB 1100N-3	ISB 1100AN-3	ISB 1100AN-80T-3	ISB 950N-4	ISB 950AN-4
Screw Diameter		mm	50	40	50	40	50	50	40	50
Screw L/D Ratio		L/D	20.5:1	20.5:1	24:1	20.5:1	24:1	24:1	20.5:1	24:1
Screw Speed		R/min	0-150	0-190	0-150	0-190	0-150	0-150	0-190	0-150
Theoretical Shot Volume		cm³	481	238	481	238	481	481	238	481
Injection Pressure		Mpa	176	174	176	174	176	176	174	176
Max. Hydraulic Pressure		Kg/cm	140	140	140	140	140	140	140	140
The Actual Injection Quantity		G(ps)	452	225	452	225	452	452	225	452
		Oz	16	8	16	8	16	16	8	16
Screw Stroke		Mm	245	190	245	190	245	245	190	245
Blow Clamping Force		Kn	80	80	80	150	150	150	80	80
Clamp Tonnage		Kn	600	400	400	600	600	800	400	400
Wheel Diameter		mm	1100	800	800	1100	1100	1100	950	950
Max. Height	PP PET PETG Tritan PS PC	mm	/	200	200	200	200	200	200	200
	PC PETG Tritan PS		140	220	220	220	220	220	220	220
Open Vertical Mode Trip		mm	430	570	570	570	600	600	600	600
Max. Pump Pressure		Mpa	16	16	16	16	16	16	16	16
Servo Motor		Kw	22	22	22	22	22	22	22	22
Mode Opening and Mode Locking Use Ordinary Motor(Double Pump)		Kw	/	22	22	22	22	22	22	22
Electric Power		Kw	12.2	8.9	8.9	8.9	12.2	12.2	8.9	12.2
Tank Volume		L	400	420	420	420	420	420	420	420
Dimension of machine(L*W*H)		M	4.5*17*3.3	4.2*1.75*3.4	4.2*1.75*3.4	4.5*1.95*3.4	4.5*1.95*3.4	4.5*1.95*3.4	4.2*1.75*3.55	4.2*1.75*3.55
Machine Weight		Ton	8	5.5	6	8.5	9	9.5	6.5	7

Main Features
*The whole process including mould injection stretch blowing and off-molding can be finished within one step,which means more energy efficiency and high quality for product.The injection blowing molding products are thinner and better uniformity than old style ones,which can save 50% materials.Meanwhile hyaienic reguirement is guaranteed.
*Compact structure cover small floor coverage which can save more cost than traditional machines.
*Widely used for manufacturing bottles for pharmaceutical healthcare,food beverages cosmetics lamp shade and other applications.
*Can use recycling material with the lowest cost.

*For PC, PS,PMMA lamp cover, LED light lampshade,Christmas flash light, garden and street light.*For PET high transparent,much thinner wall, cosmetic bottle 10ml to 500ml, PET wide neck jar, PET pharmaceutical bottle.*For PP high transparent, baby feeding bottle, sport bottle.*For PCTG, Tritan drinking water bottle, sport bottle.

Figure Plane

Production Process
Remove molding disadvantage factor, least molding step

Single step improves accuracy,optimizes working procedure Putting away complicated, making a way to produce a reliable product and save energy as well. PET material in each procedure malfunctionreject rate is 1%
Compare with One-step and Two-step:

Molding	Process	Structure	Manpower/Energy/Space	Product Quality
One-step	From preform to product	One machine	Little	Not affect by damp and less pollution; Various kinds of shape
Two-step	Injection and blow molding are two separated process	1.Injection molding machine 2.Preform transiting machine 3.Reheating, stretch and off-moulding machine	More	Easy affect by damp and polluted; Singleness shape

Final Product
Company Profile
Certifications

FAQ
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video. Q: How can we get the exact price of plastic machine? Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation. Q: Do you provide any spare parts with machine? Yes, we offer all necessary spare parts before shipment.(contact us for packing list ) Q: How about your after-sale service ? We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist. Q: What is the lead time? For customized machine, it takes about 45-60 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.) Q: What is the warranty period for your machine ? 12 months warranty for components and technical support . Q: Do you provide custom machines? Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs. Q: How can we install the machine when it arrives? We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees. Q: What's the advantage of SINOTECH? We provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
