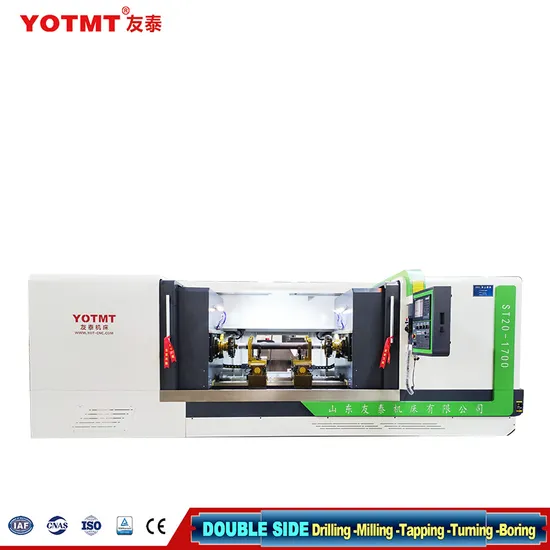

Four Axis Horizontal Milling Machine for Automotive Steering Knuckles

Product Description

ST series milling end face drilling and turning machine
equipment hydraulic fixture Product Display
Product Details

Efficient processing capability
Simultaneously supporting the simultaneous processing of both ends in one clamping, improving processing efficiency.
Bidirectional self centering hydraulic fixture
Two way self centering hydraulic vise, suitable for processing workpieces of different specifications.

Professional optimization plan
Equipped with high-power mechanical speed regulation and high-precision milling head, the spindle has high rigidity and flexible speed regulation, meeting complex machining requirements.
Product Parameters

ITEM	UNIT	ST10	ST12	ST16	ST20	ST25/30
Processing length range	mm	200-1000	200-1200	200-1600	200-2000	200-3000
Milling diameter range	mm	φ20-90	φ20-120	φ20-160	φ20-200	φ30-300
Max.milling single side	mm	5	5	5	5	5
Milling overall length consistency	mm	±0.03	±0.03	±0.03	±0.03	±0.03
Center hole depth consistency	mm	0.03	0.03	0.03	0.03	0.03
Both ends face center hole beating	mm	0.03/φ50	0.03/φ50	0.03/φ50	0.03/φ50	0.03
Milling face roughness	Ra	3.2	3.2	3.2	3.2	3.2
Center hole roughness	Ra	1.6	1.6	1.6	1.6	1.6
OPTIONAL CONTENT
Outer diameter turing	mm	φ90	φ90	φ120	φ160	φ250
Rigid tapping	mm	/	M10	M20	M24	M36
U drill	mm	φ40	φ40	φ40	φ40	φ60

Company Profile
Packaging & Shipping
FAQ
· Where is your company ? Can we come to your factory for inspection? Our company is located at 999 Hengyuan South Road, Shannan Street Economic Development Zone, Tengzhou City, Shandong Province. We warmly welcome your visit.
·What are the main products of your company and what are their advantages? We have independently developed industry equipment such as facing and centering machines, CNC double-sided lathes, CNC vertical lathes, dual spindle CNC vertical lathes, cylinder specific CNC lathes, vertical deep hole drilling machines, and double head horizontal machining centers. We have a comprehensive science and technology enterprise specializing in the design, manufacture, sales and service of these products.Our products have high precision, high efficiency, high stability and low energy consumption. We can also customize products according to customer needs.
· Which machine is suitable for my workpiece? Please tell me the specifications of your workpiece so that we can choose the most suitable model for you. If there are drawings, that would be the best, and we can provide better technical solutions.
· How do you ensure the quality of your products and what are your quality certifications? We have a strict quality control system from raw material procurement to finished product inspection. We have advanced testing equipment and professional technicians to ensure the accuracy and performance of our products. We have passed ISO9001 quality management system certification and CE certification. We provide 12 months warranty for our products from the date of shipment.and lifetime after-sales service. We also provide online technical support, spare parts supply, training and maintenance service for our customers. We have a professional after-sales team to solve any problems you may encounter.
· How do you deliver your products and what is your delivery time? We can deliver our products by sea, air or land according to your preference. We have a fast delivery time of 30-60 days depending on the order quantity and product type.
· What are your prices and payment terms? Our prices are competitive and reasonable in the market. T/T, L/C, D/P, D/A, etc.We can also provide you with trade assurance service to protect your order and payment.
