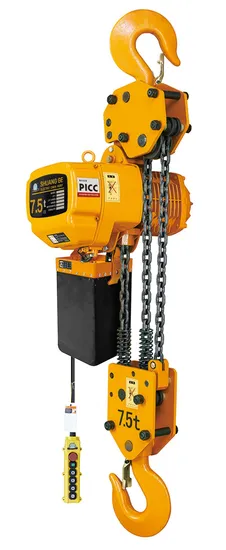

Stage Electric Chain Hoist with High Quality

Product Description

Product feature:
1. HHW-B electric chain hoist is a new kind of product we developed recently.
2. It has such characteristics as fast lifting speed, convenient operation and beautiful appearance. Especially, its unique overloading safety protection setting and electrical machine hot protection setting make sure of the higher reliability of this product.
3. It is widely used in lifting light and small goods. It can also be used in low-level space materials circulation system by mating with aerial travelling crane equipment.
4. This product attests to be effective equipment which can improve working condition and enhance labor efficiency, Optional wireless remote controller.
Advantages:
1) Long history and famous brand: Established in 1972, with the famous brand of Shuang Ge, Peace Bird, Wuyi.
2) OEM experience
3) Scale of production: More than 400 employees and covers a total area of about 200, 000 square meters.
4) Honor and Certification: CE, GS certification by TUV. Two-time national gold award, this is issued by the government of China.
5) Equipment: 22 sets Original Wafios device.
6) Team: More than 100 professional technical team, and more than 50 salesman with the World-wide sales network.
7) Market occupancy: Almost 90% Southeast Asian market are SHUANG GE brand.

SINGLE SPEED
Model	capacity(ton)	Standard lift(m)	Test Load(Kn)	Motor Power	No.of Chain	Dia of chain(mm)	Lifting speed(m/min)	Net Weight(kg)	Extra weight per meter of extra lift(kg)
WHD5-0.5-01S-H	0.5	3	6.25	1.1	1	6.3	7.2	47	0.81
WHD5-01-01S-H	1	3	12.5	1.5	1	7.1	6.8	65	1.1
WHD5-01-02S-H	1	3	12.5	1.1	2	6.3	3.6	53	1.62
WHD5-1.5-01S-H	1.5	3	18.75	3.0	1	10.0	8.8	108	2.3
WHD5-02-01S-H	2	3	25	3.0	1	10.0	6.6	108	2.3
WHD5-02-02S-H	2	3	25	1.5	2	7.1	3.4	73	2.2
WHD5-2.5-01S-H	2.5	3	31.25	3.0	1	11.2	5.6	115	2.8
WHD5-03-01S-H	3	3	37.5	3.0	1	11.2	5.6	115	2.8
WHD5-03-02S-H	3	3	37.5	3.0	2	10.0	4.4	131	4.7
WHD5-03-03S-H	3	3	37.5	1.5	3	7.1	2.2	85	3.3
WHD5-05-02S-H	5	3	62.5	3.0	2	11.2	2.8	145	5.6
WHD5-7.5-03S-H	7.5	3	94	3.0	3	11.2	1.8	176	8.4
WHD5-10-04S-H	10	3	125	2×3.0	4	11.2	2.8	300	11.2
Size Specification
Model	H	A	B	D	E	I	J	K	L	M	N
WHD5-0.5-01S-H	580	455	230	240	155	31	29	31	29	20	20
WHD5-01-01S-H	650	520	260	300	176	42	32	42	32	24	24
WHD5-01-02S-H	580	455	230	240	155	42	32	42	32	24	24
WHD5-1.5-01S-H	800	615	295	430	265	49	40	49	40	30	30
WHD5-02-01S-H	800	615	295	430	265	49	40	49	40	30	30
WHD5-02-02S-H	835	520	260	300	236	49	40	49	40	30	30
WHD5-2.5-01S-H	845	615	295	430	265	59	48	59	48	35	35
WHD5-03-01S-H	845	615	295	430	265	59	48	59	48	35	35
WHD5-03-02S-H	950	615	295	430	320	59	48	59	48	35	35
WHD5-03-03S-H	950	520	260	350	205	59	48	59	48	35	35
WHD5-05-02S-H	1030	615	295	430	325	60	48	60	48	43	43
WHD5-7.5-03S-H	1380	615	295	505	320
WHD5-10-04S-H	1100	630	315	890	445

FAQ
Q1:Why Choose Wuyi Lifting?
A:Wuyi established in 1952,more than 70 years experience in the chain hoist field with professional technical team.
Q2 :Can I have samples to test?
A: Yes, Sample can be sent for testing.
Q3. Q:Guarantee
A: One year
Q4: Q:OEM service
A: OEM service is available.\
Q5. What's the lead time for regular order?
A: The normal delivery time is 30-45 days.
Q6. What is your payment terms?
A: 30% T/T in advance, 70% balance before shipment or L/C.
Q7. What is your terms of packing?
A: Cartons with Pallet or wooden case
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
