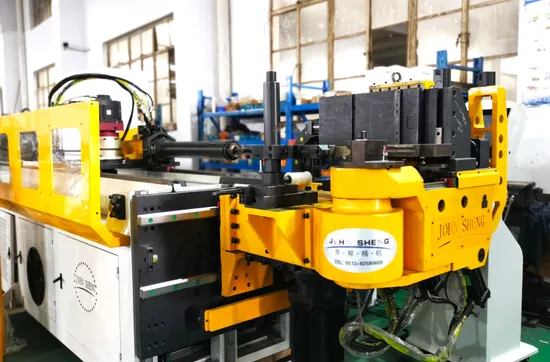

Automatic Hydraulic Stainless Steel Metal Pipe Tube CNC Bender Bending Machine 75CNC
| US$25,000.00-55,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SB75CNC
Condition
New
Certification
ISO 9001:2008, CE
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Cnc Bending Machine
Model
Sb50CNC
Max Bending Radiu
250mm
Min Bending Radiu
25mm
Max Wear Core
2400mm
Max Bending Angle
185
Bend Pipe Fittings Can Be Set
16
The Data Input Mode
Y.B.C
Turing Servo Motor
400W
Feeding Servo Moter
1.5kw
Machine Size
3500*1550*1050
Transport Package
Wood
Specification
SB50cNC
Trademark
CAOS/JohnSheng
Origin
China
Production Capacity
100set/Per Year
Product Description
Product Description World-class Brand accessories, such as Siemens, Mitsubishi, YUKEN, etc.Equipped with automatic error and fault detection function, making it easy for operators to eliminate obstacles
Each bend can be set with compensation value, speed, and demolding gap
Boosting technology can control the thinning rate within 13-19%
With advanced mandrel pulling function and automatic lubrication system
Each layer of mold can be individually controlled for speed
Adjustable wrinkle resistant plate. Fixed seat and lubrication system.
The feeding method can be selected as direct or pinch feeding
Externally expanded fixtures can effectively improve material utilization (optional)
Manual centralized lubrication system
Can connect automated feeding and unloading equipment (optional)
Johnsheng patented operating software, equipped with IPC and touch screen
Can automatically convert X, Y, Z coordinate values into Y, B, C machining values
Automatic radiator ensures long-term stable operation of the machine; Upgradable to CNC cooler (optional)
Product Parameters
Specification/Model | 1. SB50CNC | Remark | |
| Max bending capability | Φ50mm×3mm | 1. The Minimum bending diameter of CNC bending machine based on the pipe diameter 2.The Max bending diameter of CNC bending machine can accordingto the customers requirement 3.The Max length of mandrel of CNC bending machine can according to customers requirement | |
Max bending radius | R250mm | ||
| Min bending radius | R20mm | ||
| Max bending angle | 190° | ||
| Max feeding length | 2600mm | ||
| feeding method | direct feeding clamping feeding | ||
| Working speed | Bending speed | Max 85°/s | |
| Rotary speed | Max 200°/s | ||
| Feeding speed | Max 1000mm/s | ||
| Working accuracy | Bending accuracy | ±0.1° | |
| Rotary accuracy | ±0.1° | ||
| Feeding accuracy | ±0.1mm | ||
| Information inputting method | 1. axisX . Y. Z 2.working valueY. B. C | ||
| Bending method | 1.Servo bending : 1kw(more than 3 axis 2. Hydraulic bending | ||
| Power of rotary servo motor | 750w | ||
| Power of feeding servo motor | 1kw | ||
| Max bending groups | 1. 12 2. 33 | ||
| Max storing components | 1. 330 2. 125 | ||
| Motor power | 7.5kw | ||
| Oil pressure | 12 Mpa | ||
| Size | 4900 x 1300 x 1300mm | ||
| Weight | 2500kg | ||
Certifications Company patent
