US$98,300.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
QH-1300/1500/1650
Species
Die Cutting and Creasing Machine
Placing Form of Template
Horizontal
Die Cutting Tool
Steel Plate
Computerized
Computerized
Automatic Grade
Semi-Automatic
Application
Paper Packaging Materials, Stickers Products, Heat Insulation Material, Insulating Materials, Dust-proof Material, EMI Shielding Materials, Earthquake Products
Product Name
Semi Automatic Die Cutter & Creaser Machine
Function
Cutting and Creasing with Stripping
After-Sale Service
Provide Installation and Debugging Videos for The
Speed
5000pces/H, 6000PCS/H
Transport Package
Film and Wooden Box
Production Capacity
300/Pieces
Product Description

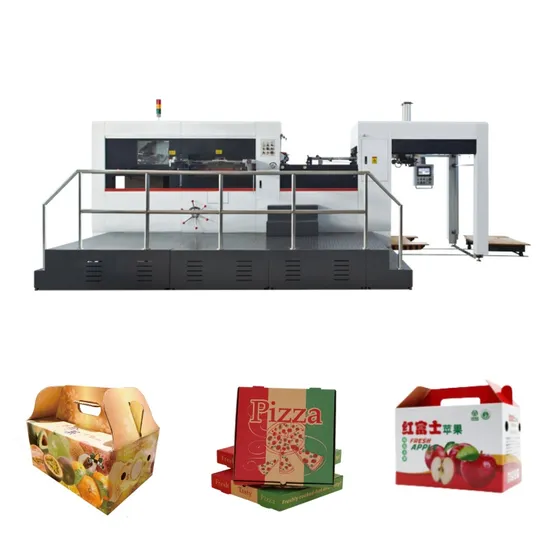

Semi Autoamtic Platen Die Cutting & Creasing Machine
Product Description
| Item | Parameters |
| Model | BMY-1500 |
| Die cutting type | Pressed flat die cutting(Lower side is movable while upper side is unmovable) |
| Max paper transmitting size | 1510*1120mm |
| Min paper transmitting size | 450*550mm |
| Max die cutting size | 1490*1100mm |
| Min gripper size | 6-8mm |
| Max die cutting pressure | 380N/cm² |
| Paper processed | Cardboard 200-2000 gsm Corrugated board <= 10mm |
| Max die cutting speed | 4600 sheets/h |
| Max feeding pile height | 1400mm(above the level) |
| Min feeding pile height | 1250mm(above the level) |
| Main motor power | 11 kw |
| Total power | ~16 kw |
| Total weight | ~17 T |
| Overall size | 4500*2300*2250mm (without platform and pre-paper) |
| 6500*4300*2250 |
Application
1.Feeding and Collecting Part
1.The extra feeder can do paper and corrugated board,Install the vacuum pump of BECKER.2.At the middle of head install the monitor ,worker can easily see the back3.Pre-paper pile design and special pneumatic bench can save much time4.The non-stop sampling system can check the board accurate without stop the machine
2.Main body Adopt automatic centralized lubricating system and setting main chain lubricating system by HMI Patented design shock absorption system can prolong the life of main body and increase the pressure The intermittent gearbox can assure the accurate registration and decrease the gripper attack
3.Stripping part
1.Double action movement structure with upper and lower stripping frame facilitates die change2.Male/female diecutter model are available for different carton3.Match with the centerline registration system in diecutting area, there is a same system in the stripping section.Accuratepositions can increase production efficiency4.Gripper front edge waste removal system for higher production efficiency
4.Die cutting part and Delivery system Die cutting chase fixed accurately by pneumatic lock system Die cutting plate is putted in and out by air floating device Electric clutch system of main chain can assure the chain steady when it is stopped at high speed Main chain and assist chain is lubricated periodically controlled by PLC Protection window of diecutting can hold the main body clean Lightweight and durable aluminum alloy 5-piece gripper bars with chain of Renold UK or IWIS Germany ensure accurate
Company Profile
Packaging & Shipping
FAQ Q:Are you manufacture or trading company?A:we are manufacture , our factory set up on 1999, and before we exported our products are mainly supply to the trading company ,so we are the source factory, welcome to be our agency.Q:Do you inspect the finished products?A:Yes, we have QC department, they will inspect the machine before shipping, to ensure there is nothing problem of the machine .Q:Does the packing strong?A:Yes, of course! All of our export packing with strong wooden tray, all to meet the export packaging standards.Q:How about after-sales service process?A:When your machine has problem, contact our sales and we will solve your problem as soon as possible.We have after-sale office in China, Vietnam, India, Bangladesh, Italy. Q.Where is your factory?A:Our factory located in Development Zone, East Of DongGuang County, CangZhou City, Hebei Province,China,welcome to visit our factory!Q. Do you have Import & export right?A:Yes , we have , so we can export the carton machines to you directly , without any trading company agency
