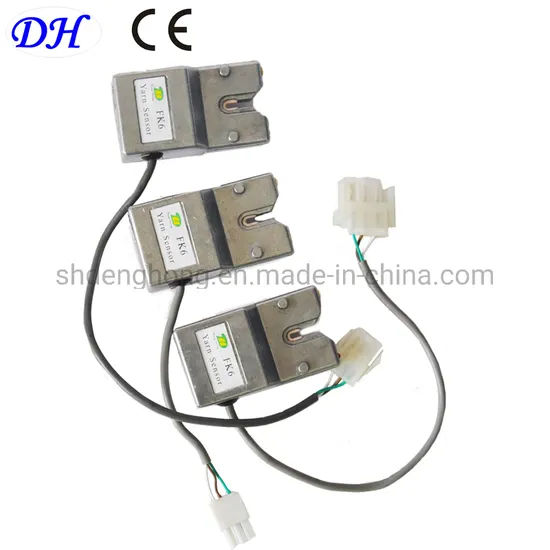

Fk6 Yarn Sensor for Barmag Machines

Product Description

Product Description:

ITEM	DHYS003 FK6 Barmag textile machine Yarn detector
Material	Aluminmun housing
Current ouput	PNP output
Working Voltage	18~30 VDC
Working current	MAX 1.2 A
Static current	< 20 mA
Response time	< 0.1 second
Guarantee	One year without operation mistake
Origin	Shanghai, China
Application	Murata texile machines

Circuit connection:
Company Information:
Shanghai Denghong Mechanical & Electrical Manufacturing Co.,Ltd is the professional manufacturer of Various Yarn breaking detection sensor, Yarn cutter with about 10 years of experience, which have strong R&D and engineering capabilities.
Function and Application:
In Chemical Fiber machine, fore-spinning machines, when the breakage of stoppage of one or more yarns are detected by the sensor, the sensor will give the operate on duty an alarm with a visible LED flaring signal. It will simultaneously send out an electrical signal to the yarn cutter in order to cut off the broken yarn and grip the cut end by the device attached to the yarn cutter itself. In winding, spinning, twisting machines, the yarn should be cut off when the bobbin is full.
Samples are free. You only pay shipping fee.
Samples: 1-3 working days
Order: 3-7 working days
Our srtongest point is that we consult. So anything you want to know about our products, please ask us!
