Circular Saw Blade Wood Board Rip Saw Wood Cutting Saw Machine

Product Description

Product Description

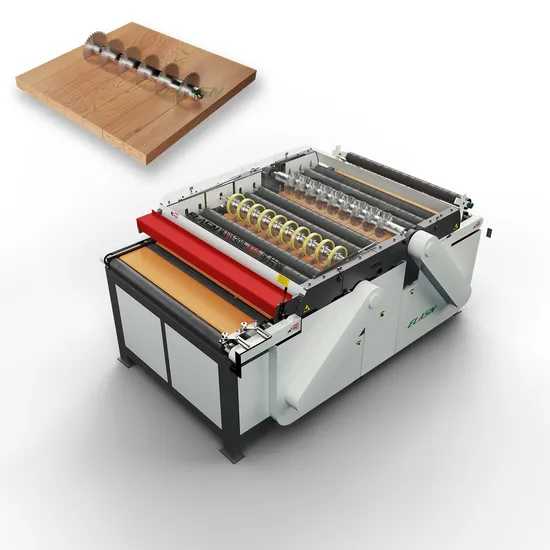

Wood Planks Multi Rip Saw
The tracked wood plate multi-rip saw is a mature product in our factory all year round. It adopts track-type transmission feeding, with high performance and high precision. Solid wood composite flooring, laminate flooring, panel furniture, wooden packaging box, laminated timber, and photo frame is sawn into multiple pieces of equal or different specifications at one time. Circular Saw Blade Wood Board Rip Saw Wood Cutting Saw Machine
The precision saw shaft ensures the smoothness and straightness of the cutting plate, and can be customized according to the customer's individual requirements.
Product Parameters

Technical Parameter	ELA1300-XT2	ELA1300-XT4	ELA1300-XD4	ELA1300-X3	ELA1300-XD3
Spindle speed(r/min)	2600	2600	2600	2600	2600
Saw blade diameter(mm)	205	205	270	205	255
Spindle of diameter(mm)	74	74	90	74	85
Width of processed material(mm)	Max1220,Min200	Max1220,Min200	Max1220,Min200	Max1220,Min200	Max1220,Min200
Thickness of processed material(mm)	Max30,Min5	Max30,Min5	Max60,Min5	Max30,Min5	Max45,Min5
Power of spindle motor(kw)	2*11	3*11	22	11	18.5
Feeding speed(m/min)	0-17	0-17	0-12	0-12	0-12

Product Features
1. The spindle is bottom saw with lifting and a fully enclosed protective cover; the digital or manual lifting of the spindle and upper pressing frame can be optioned. Strengthened type spindle and axle bed. Anti-bouncing protector for the plate is available.
wood plank rip cutting machine wood plank rip cutting machine
2. It is provided with a spindle at the lower part and a fully enclosed protective cover and realizes manual lifting of the spindle and pressing frame. A rebounce protector for plates is available. 3. Dust protection and environmental protection device.
Circular Saw Blade Wood Board Rip Saw Wood Cutting Saw Machine
4. Using high-quality alloy wear-resistant saw blade.
Circular Saw Blade Wood Board Rip Saw Wood Cutting Saw Machine
5. Spindle #45 steel, NSK high-speed wear-resistant bearing, copper motor.
Circular Saw Blade Wood Board Rip Saw Wood Cutting Saw Machine
6. Intelligent integrated power distribution system, easy to operate, safe, and stable.
Circular Saw Blade Wood Board Rip Saw Wood Cutting Saw Machine
Detailed Photos

Company Profile
Henan Elasn Machinery Equipment Co., Ltd is one the leading manufacturing and exporting company of woodworking machines in China. We are committed to providing one-stop service to our customers all over the world.
Circular Saw Blade Wood Board Rip Saw Wood Cutting Saw Machine
Elasn focuses on Woodworking Machinery, Here we can provide a complete solution for your wood line processing. Elasn's products develop and increase not limited to woodworking machinery, with the main products of the Wood pallet production line, wood press machine series, wood saw machine series, wood crusher, and chip machine series, etc.
Circular Saw Blade Wood Board Rip Saw Wood Cutting Saw Machine
Our company is equipped with a professional team of quality control and after-sales service members to keep track of each order scientifically, so as to provide high-speed services for customers. "To provide a design, production, quality control, inspection, testing, sales, and logistics service to companies that need a reliable supply of wood machinery from China. " Circular Saw Blade Wood Board Rip Saw Wood Cutting Saw Machine
All members of Elasn welcome new and regular customers to contact us to build long-term and friendly relationships of cooperation! We will strive to produce more quality products for you!
Packaging & Shipping
After Sales Service-The main machine has 12 months guarantee and the electric elements have 6 months warranty.
- We respect any feedback from you after receiving the goods.
- We promise all spare parts available in lifetime use.
- We handle your grumble within 48 hours.Circular Saw Blade Wood Board Rip Saw Wood Cutting Saw MachineTechnical Support- We have sales teams, together with all technical support from our engineering team.
- Before sending machines, test and adjustment services are provided.
- Operating video & instructions will be sent to clients for better use of machines.
- Any problems that occur while using, professional advice will be given by us.
FAQ

Q1: What's your factory MOQ and best price?
A1: No MOQ and 1 set machine order is also welcomed. We usually quote FOB Qingdao price, but if you want to know the other price term, we will try our best to meet your demands.Circular Saw Blade Wood Board Rip Saw Wood Cutting Saw MachineQ2: This is the first time I use this kind of machine, is it easy to operate?
A2: There is English manual that shows you how to use the machine. If you still have any questions, please contact us by e-mail/skype/ phone / WhatsApp/trademanager online service.
Circular Saw Blade Wood Board Rip Saw Wood Cutting Saw Machine
Q3: Is it difficult to maintain the machine?
A3: If your company has a technician, then with our guiding videos, then it's not difficult we think, our other customers can handle it by themselves, and we think you also can.
Circular Saw Blade Wood Board Rip Saw Wood Cutting Saw Machine
Q4: How to install?
A4: We adjusted machines well before we delivered. When customers receive them, you can work with them directly.
Circular Saw Blade Wood Board Rip Saw Wood Cutting Saw Machine
Q5: What to do if the machine has a problem?
A5: 24 hours timely response to mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
