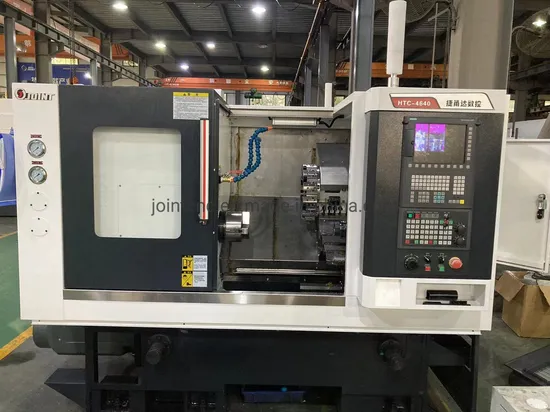

Joint Factory Automatic Torno CNC Slant Bed Lathe Machine HTC-4640

Product Description

JOINT Factory Automatic Torno Cnc Slant Bed Lathe Machine HTC-4640
Product Introduction:
This series slant type high speed CNC lathe machine adopts domestic or imported high performance controller, matched drive and motor, achiving two axes linkage machining. Equipped with Taiwan sleeve spindle, with characteristics of high precision, high rotation speed, smooth operation, and is optional with hydraulic chuck and elastic clamp, through which effecitvely save the time of clamping workpiece.
Product features:
1. slant type one piece casting, two axes linear guideway, suitable for high precision processing.
2. Taiwan high precision linear guideway, ensuring for stable accuracy
3. adopts Taiwan high precision spindle, Japan precisive bearing.
4. Can equipped with medium solid or medium hollow hydraulic chuck, hydraulic station and oil tank (Taiwan)
5. Can equipped with chain type auto chip conveyor
6. Can equipped with electric tool turret, hydraulic tool turret and servo tool turret.
7. GSK/ KND control system.
Product applicant:

Auto part Communication equippment automation equippment
Product details:
Product specifications:

Item	Unit	HTC-4640
Max swing over bed	mm	460
Max turning diameter on carriage	(mm)	170 drilling/200 excircle
Max cutting length	(mm)	300
Spindle motor rate	(KW)	7.5
Spindle head form		A2-6/A2-6
Hydraulic chuck diameter	mm	6''/8''
Spindle max rotation speed	rpm	4500/4000
Spindle hole diameter	mm	Ø56/Ø66
Work piece bar diameter	mm	Ø42/Ø52
X axis max travel		210
Z axis max travel		400
X/Z axis connection way		Direct connection
X/Z axis ball screw specification		3210/3210
X/Z axis linear guideway specification		35/35
X/Z axis max rapid movement speed	m/min	20/16
X/Z axis rapid position accuracy	mm	0.004/0.006
Quill diameter	mm	65
Quill travel	mm	80
Tailstock max travel	mm	300
Tailstock sleeve taper hole		MT4
Tool number		12T
Tool turret center height	mm	80
Tool dimension	mm	25
Dimension (L*W*H)	mm	2460*1615*1870
Weight	Kg	2250

Standard accessories: 1. GSK980TDI control system and 7.5kw GSK servo spindle motor 2. Taiwan A2-5 spindle, spindle hole 56, imported bearing and ball screw, linear guideway, 3000rpm 3. 6'' Taiwan hydraulic chuck and oil cylinder, Chinese hydraulic station, imported hydraulic tailstock 4. 12 positions servo tool turret 5. Fully closed cover 6. Auto lubrication system 7. Cooling system 8. Hand unit 9. Working light 10. Manual tailstock 11. Technical documents 12. Accompanied toolbox
Optional accessories: 1. SYNTEC 22A system and servo motor, and SYNTEC matched spindle motor 2. FANUC OITF(5) system 3. 8'' hollow hydraulic chuck change to 10'' hollow hydraulic chuck 4. 4 positions electric tool turret 5. 8 positions Chinese servo tool turret
Main Parts Brand:

No	Name	Plant	Original place	Note
1	Machine body	JOINT	China
2	Control system	FANUC	Japan
3	X/Z axis motor	SYNTEC	Taiwan
4	X/Z axis drive	FANUC	Japan
5	Spindle	ROYAL	Taiwan
6	Servo spindle motor	CTB	China
7	Ball screw	THK	Japan
8	Linear guideway	THK	Japan
9	Coupling	R+W	Germany
10	Lubrication system	HERG	China and Japan venture
11	Cooling system	ROCOI	China
12	Transformer	FUJIE	China
13	Main pneumatic element	AirTAC	Taiwan
14	Main electrical element	Schneid	China and France venture
15	DC stablized power	MW	Taiwan

Package:

Company Information:
Shenzhen Joint Technology CO.,LTD., was established in 1995. One of our headquarters is located in PingHu town, Shenzhen City ,Guangdong province ,China, we are dedicating to research and development, production, sale, and service of mold processing machine tools and specialized machine tool equipments for machine work of excellent quality for more than two decades.
There are eight series of products-high speed turret milling machine, precision surface grinding machine, EDM machine tool, CNC milling machine, NC milling machine, Gantry type machine center, CNC engraving machine, and CNC lathe machine
Our own brand "JOINT " Has been the top quality machine's signal in domestic sales, JOINT also has been recognized as " GUANGDONG Famous Brand ", and milling machine was recognized as " TOP 10 Famous Brand of Milling machine " in China. Our product had been exporting to Europe, South America, Southeast Asia, the middle east etc, and enjoyed a good reputation there, Welcome your visit !
