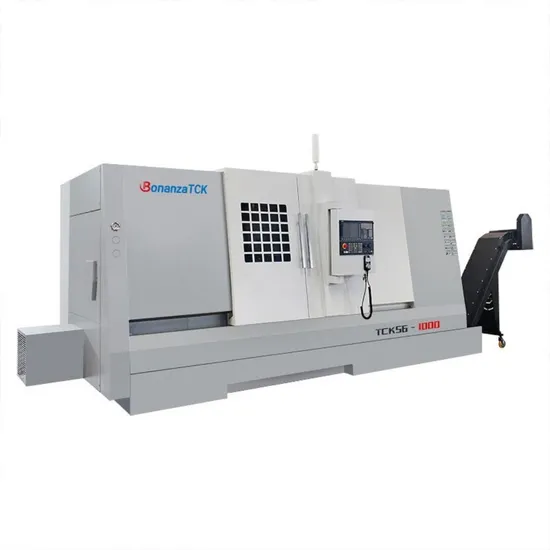

High-Precision CNC Lathe Tck56-1000 Heavy-Duty Tailstock CNC Machine Tool

Product Description

High-precision CNC Lathe Tck56-1000 Heavy-duty Tailstock CNC Machine Tool
Product Description

1. The HT300 integrated casting bed has high tensile and seismic resistance.
2.The design with 45 degree tilt angle makes chip removal more convenient and eliminates the hassle of entanglement and damage to parts.
3. Three axis rail design, efficient processing, and improved efficiency.
4. The hydraulic small spindle tailstock can be intelligently programmed for more efficient machining.
5. The bed can be equipped with hydraulic center frames, tube clamp heads, etc., which have high processing efficiency and accuracy whether it is used for small or large workpieces.
6. The processing length can reach 1 meter and can process slender shaft workpieces.

Product Parameters

Projects			Units	Specifications			Remarks
Maximum turning diameter on bed			mm	560
Maximum cutting length			mm	1000
Standard cutting diameter			mm	280			Taiwan 8 station
Maximum cutting diameter			mm	350
Standard cutting diameter			mm	210			Taiwan 12 stations
Maximum cutting diameter			mm	280
Maximum turning diameter on a skateboard			mm	350
Spindle end type and code				A2-6			Integral spindle unit
Main shaft hole diameter			mm	65
Maximum pass bar diameter			mm	50
Headstock		Spindle speed range	r/min	50 to 4500
		Maximum spindle output torque	Nm	177
		Spindle speed series		Stepless speed change
		Main motor output power	kW	15 (15 minutes) /11 (rated)
Chuck		Chuck diameter/type	mm	8"
X-axis fast shift speed			m/min	30
Z-axis fast shift speed			m/min	30
X-axis stroke			mm	200
Z-axis stroke			mm	1050
Overall tailseat stroke				950
Tailstock sleeve cone hole taper			Mohs	5#

Machine structure 1.Integrated casting bed body, resistant to tension and earthquake resistance. 2.45 ° inclined bed for more convenient chip removal.

Servo Turret 1. Standard: Horizontal 12''inch servo turret 2. Optional: Live turret

Hydraulic tailstock 1. Standard with hydraulic tailstock 2. Can choose Programmable tailstock driven by servo motor

Spindle motor 1,15KW Spindle motor ,Spindle output torque235N.m 2,Optional: 30KW motor spidle

Company Profile
Certifications

Packaging & Shipping
FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,
Vertical Machining Center ,Lathe Machines and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7: What about your warranty?
A: Warranty is five year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
8:How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems.
