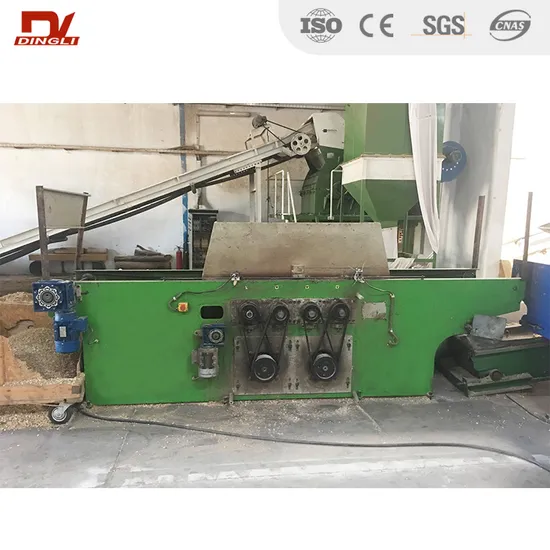

New Electric Tree Chips Sawdust Crusher Timber Crushing Equipment, Industrial Sawdust Automatic Livestock Animals Shavings Horse Bedding Wood Shaving Machine

Product Description

Product Description
The wood shaving machine produced by our company is a new product that adopts new technology and then improves it according to the needs of wood shavings and the current status of wood. This wood shaving machine can process all kinds of wood (such as sticks, branches, logs, furniture scraps from furniture factories, waste wood branches, etc.) into batches of thin wood shavings with uniform thickness. The wood enters the machine through the feed port and is sliced by the blade inside the machine to punch the shavings. The size and thickness of the shavings are even, which is not much different from the wood shavings produced by the wood factory, it also saves time and labor. The use of wood shavings: it can be used as particleboard (plywood), as a raw material for wood pulp paper in paper mills, as a transport filler for fragile products transportation companies, as stuffing in the nests of pigs, cattle, sheep, and various animals, and can also be used as bioenergy.
Zhengzhou Dingli Machinery is a professional manufacturer of wood shaving machines. This poplar shaving machine can process finished wood or waste wood with a length of 45CM to 140CM. The product structure is advanced, the energy consumption is low, the environment protection is efficient, and you can adjust the shavings to different sizes according to your different uses. The produced shavings have high quality, the blade has high wear resistance and long service life. The hydraulic power unit imported from Germany is used to ensure the continuous work and stability of the hydraulic tie rod. Working Principle
1. Put the log into the feeding port. When the machine is started, rotate it back and forth, and press it down to the plane of the machine planer. After cutting with the knife and stick, blow out the cabinet under the airflow.2. The wood shaving machine body is mainly composed of the casing, knife roll, motor, power distribution cabinet, hydraulic system, and other parts. Its base is welded with high-strength steel plates, which is the supporting foundation of the whole wood shaving machine.3. The blade mounted on the knife roller is a professionally manufactured blade bolt. The blade is fixed on the knife roller by a pressure block; it can be adjusted up and down within a certain range according to the thickness of the shavings.4. Wood shaver knife roller: Stop the machine, open the cover, and replace the blade
Product Application
The wood shaving machine can process logs, branches, and boards edge into shavings. The shavings produced are the same as the shavings produced by the furniture factory. The fully automatic feeding equipment greatly improves the production speed and saves time and labor.
It can be used as particleboard (plywood), as a raw material for wood pulp paper in paper mills, as a transport filler for fragile products transportation companies, as stuffing in the nests of pigs, cattle, sheep, and various animals, and can also be used as bioenergy.
Product Advantages
1. No need for civil engineering;2. Electrical control systems are imported from Europe;3. Four-axis planing (increasing shavings yield);4. The size and thickness of the shavings can be adjusted arbitrarily (to meet the needs of different markets);5. Adjust the number of compressions according to the number of materials to achieve energy saving and emission reduction;6. No other wearing parts except knives (supporting sharpener equipment, knives can be used for many times);7. The transmission part adopts hydraulic technology to ensure the stability of the equipment operation and avoid crashes;8. The overall structure is made by laser cutting and CNC machining center to ensure the interchangeability of machine parts;9. The high degree of automation, equipped with an automatic feeding system, to achieve uninterrupted feeding, greatly reducing labor costs.
Success Case



Product Parameters
Model DLWS1460-2 DLWS1460-4 DLWS1490-4 DLWS2712-4

Feed size(cm)	140*60	140*60	140*90	270*120
Wet material output(kg/h)	500-800	1200-1500	2000-2500	3000
Number of cutter heads	Customized according to the size of shavings
Weight(kg)	2400	3000kg	6800kg	8000kg
Dimensions(cm)	330*155*135	380*155*135	600*220*210	560*200*200

Company Profile
Founded in 2003,we can provide you with complete energy plant solutions.Zhengzhou Dingli has four series of products with high scientific and technological content, such as Drying series, Dehydration series, Heat source series and Crushing series.
With 20 years of R&D and production experience, we have 350+ technical patents. Have a professional installation and after-sales team. There have been many successful cases in the world.
Zhengzhou Dingli Group has products including wood chips, sawdust, shavings, bagasse, coffee grounds, and other biomass drying pellet production lines. Pomace, beer yeast, cassava residue, etc. Feed Drying equipment. Manganese ore, sand, sludge, gypsum, fly ash, etc. Mineral slag drying machine. Raw coal, coal slime, lignite, and anthracite coal drying plant, Coconut fiber & cocopeat drying equipment. Poultry manure dryer and organic fertilizer production line. Continuous biomass charcoal-making machine, biochar-making plant. We also provide related wood shaving machines, pellet machines, charcoal machines, etc. Which are required by the production line.
