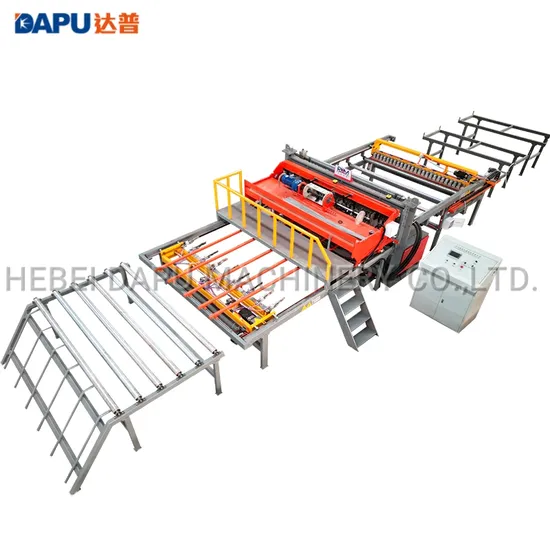

Iron Reinforcing BRC Steel Rebar Electric Welded Panel Wire Mesh Welding Machine

Product Description

Product Description
China factory fully automatic galvanized iron reinforcing brc steel rebar electric welded panel wire mesh welding machine price-reinforcing wire mesh welding machin
Mesh welding machine series:
panel mesh welding machine, roll mesh welding machine, reinforcing mesh welding machine, fence mesh welding machine, animal cage welding machine, steel grating welding machine, electric welded wire mesh machine, wedged wire screen welding machine, wire straightening and cutting machine, etc.
Construction Mesh Welding Machine for Panel and Roll Mesh
automatic construction mesh welding machine also called roll mesh welding production line, welded wire mesh roll machine, used to make road mesh, reinforcing mesh, construction mesh, etc.

Model	DP-FP-2500BN
Wire diameter	3-6mm
Line wire space	50-300mm
Cross wire space	Min. 50mm or Min. 25mm
Mesh width	Max. 2.5m
Mesh length	Max. 100m
Welding speed	50-75 times/min

Reinforcing Mesh Welding Machine
Reinforcing mesh welding line, also called BRC mesh welding machine, steel rebar mesh welding machine. with more than 20 years of experience in design and manufacture, our BRC mesh welding machine is featured with high capacity, easy operation, and precise control.
The pneumatic reinforcing mesh welding machine is the same type as the European machine, but with competitive prices. The production line adopts a multi-force air cylinder to control the welding, the welding speed can be up to 120 times/min.

Model	DP-FP-2500A+	DP-FM-3000A+	DP-GW-2500B	DP-GW-3000B
Air cylinder type	SMC 80 double-acting air cylinder		SMC 90 single-acting bally air cylinder
Wire diameter	3-8mm		5-12mm
Longitude wire space	100-300mm		100-300mm
Cross wire space	Min. 50mm		Min. 50mm
Mesh length	Max. 12m		Max.12m
Mesh width	Max. 2.5m	Max. 3m	Max.2.5m	Max.3m
Welding speed	Max. 100times/min		Max. 80-100times/min

Fence Mesh Welding Machine for 3D Fence Panel Mesh
3D fence panel meshes welding machine is also called a security fence panel machine, anti-climb fence welding machine, and fence sheet mesh machine.
It is used to make fence mesh, road mesh, reinforcing mesh, shelf, explosion-proof wall, etc.

Model	DP-FP-2500A	DP-FP-3000AN	DP-FP-3200A+
Wire diameter	3-6mm
Line wire space	50-300mm	50-300mm	76.2-300mm
Cross wire space	Min. 25mm	Min. 25mm	Min. 12.7mm
Mesh width	Max. 2.5m	Max.3m	Max.3.2m
Mesh length	Max. 3.2m	Max. 3m	Max.4m
Welding speed	Max. 70times/min	Max. 60times/min	Max. 130times/min
Bending way	Manual	Automatic	Manual

Automatic Sheet Mesh Welding Machine for Poultry Cage Mesh
Automatic Panel Mesh Welding Machine also called a poultry cage mesh welding machine, breeds aquatics welding machine.
It's used to make breed aquatic mesh, poultry mesh, coop, pigeon mesh, rabbit mesh, etc.

Model	DP-AW-1200H/E	DP-AW-1500H/E	DP-AW-1600H/E
Wire diameter	2-3.5mm/2-4mm
Longitude wire space	Mostly 50-200mm(If min. 25*25mm, we can also design)
Cross wire space	Min. 25mm or smaller (PLC control)
Mesh width	Max. 1200mm	Max. 1500mm	Max. 1600mm
Welding speed	Max. 150times/min

Automatic Welded Wire Mesh Making Machine in Roll
Electric galvanized welded roll mesh machine is our new type of steel wire mesh grid machine. It's used to make construction mesh, wall mesh, animal cage, mining, etc.

Model	DP-DNW-2	DP-DNW-3	DP-DNW-4
Wire diameter	0.65-2mm	1-2.8mm	1-3.5mm
Line wire space	12.5mm, 25mm, 50mm	25, 50, 75, 125, 150mm	25-150mm
Cross wire space	12.5mm, 25mm, 50mm	12.5, 25, 50, 75, 100, 125mm	25-150mm
Mesh width	1.2m, 1.5m, 1.8m, 2m	1.5m, 1.8m, 2m, 2.5m	1.2m, 1.5m, 1.8m, 2m
Welding speed	Max. 120-180times/min	Max. 60-100times/min	Max. 60-100times/min
Main motor	2.2/4/5.5kw	5.5/7.5kw	5.5/7.5kw

Main Electric Components
Main Electric Components adopt famous brand in the world.

(Japan) PLC (Taiwan) touch screen (France) low-voltage apparatus (Switzerland Sweden) switch (France) air switch (Japan) power supply (Taiwan) inverter (South Korea) encoder (Japan) servo drive

Machine Certification
1. We provide test reports of the automatic wire mesh welding machine, more running videos, and detailed pictures.
2. Exclusive welding technology patent. Cooperation with the European company.
3. Have a variety of international certifications to help you import, such as CE, Form E, etc.
4. High-quality design strength factory Audit.
Our Factory
Hebei Jiake Welding Equipment Co., Ltd. It's the leading manufacturer of wire mesh machines in China and we always offer ADVANCED WIRE MESH TECHNOLOGY.
If you are looking for an Automatic Wire Mesh Welding Machine, please feel free to buy the quality automatic machine with a competitive price from our factory.
Excellent service is available in 24 hours.
If you interested, contact us please.
