Type-B Twining Structual Wall Drainage Krah Water Plastic HDPE PVC Water Pipe

Product Description

View more products,you can click the product keywords below...

PIPES
HDPE pipe	Steel Mesh PE Composite Pipe	Steel Skeleton PE Composite Pipe	Dual-sealing PE Composite Pipe
HDPE Double Wall Corrugated Pipe	Type-B HDPE Drainage Pipe	Type-C HDPE Drainage Pipe	MPP Cabel Conduits
FITTINGS
HDPE Electrofusion Fitting	HDPE Butt Welding Fitting	HDPE Fabricated Fitting	PP Compression Fitting
Steel Plate Socket ElectrofusionComposite Fitting	Dual-sealing Electrofusion Fitting	HDPE Drainage Fitting	MPP Cable Conduits Fitting

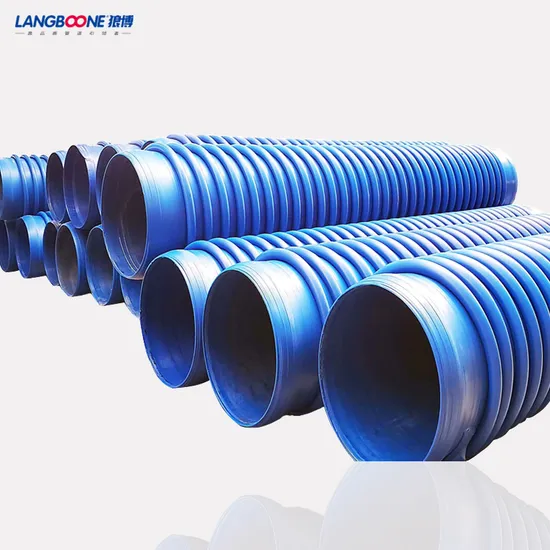

Type-B HDPE Twining Structual Wall Pipe also named Krah pipe is a kind of special-shaped structural wall pipe made by spiral winding process with smooth inner wall and spiral shaped reinforcing rib outer wall, which belongs to flexible pipe. Krah pipes are made of high-density polyethylene by winding forming process in the hot melt state, and are cooled by rolling air cooling before demoulding in the hot state.
The pipes gradually dissipate heat and have uniform wall thickness. Krah pipe adopts socket electric fusion connection. Both ends of the pipe are processed into socket and spigot during production, and electric fuse wire is embedded at the socket end. When the pipe is socket connected, only the power supply is connected to complete the welding, which can make the pipeline system achieve zero leakage.
This kind of pipe is widely used in urban drainage, municipal drainage, electric power, petrochemical and other fields, and is an ideal replacement for reinforced concrete and cast iron pipes.Excellent physical properties.
High density polyethylene has good rigidity, strength, flexibility and creep resistance. Compared with high density polyethylene, high density polyethylene has better performance of hot melt connection, which is conducive to the installation of plastic pipe.Corrosion resistance and long service life.
PE tube can withstand the erosion of a variety of chemical media, without anticorrosive treatment. It also doesn't promote algae, bacteria or fungi and lasts longer. Hot wound forming weld is of high quality
The flat material belt and coating material belt in the molten state extruded from the extrusion machine mouth die are evenly wound on the heated roller mold according to the predetermined position, so that the weld joint quality of the structural wall pipe is more stable. The pipe is cooled by wind and the material is cooled evenly.High Ring flexibility
Plastic pipe belongs to flexible pipe, in the external pressure load, flexible pipe and rigid pipe to bear the load mechanism is completely different. The flexible pipe can have a large deformation before being destroyed by compression. Large circulation capacity, economical, excellent installation performance.Good tightness
The use of welding connection (hot melting or electric melting), the structure and the tube body itself identity, to achieve the integration of joint and pipe.Good stress cracking resistance, low temperature impact resistance. 1. Nontoxic:
Carat Tube material is nontoxic and tasteless. It belongs to green building materials, never scalling, which can effectively improve the water quality.
2. Corrosion resistance:
High resistance to attack from various types of chemicals. No electrochemical corrosion.
3. No Leakage:
Carat Tube is connected in the ways of butt fusion, socket fusion and electrofusion and the strength of joint point is higher than tube itself.
4. Higher flow capacity:
The smooth inner wall is easy for pipeline transportation. Under the same condition, delivery capacity can be increased by at least 30%.
5. Convenient for construction and installation:
Carat Tube could be installed in a variety of trenchless ways, so it is very convenient for Construction and installation.
6. Lower system and maintenance costs:
Carat Tube is not only convenient to transport and install, but also reduce the worker's Labor intensity and improve work efficiency.
7. Longevity of working life:
More than 50 years under pressure use.

Type-B HDPE Twining Structural Wall Pipe's Parameter Datas
Norminal Inner Diameter (DN/IN)	Average Mean Inner Diameter	Min. Wall Thickness	Minium Melting Lenght for Electic Fusion Connection	Minium Melting Lenght for Rubber Ring Connection
DN/IN	dim.min	Min.Wall Thickness of inside Layer (B type) e4,Min.	L1.min	LZ.min
150	145	1.3	59	43
200	195	1.5	59	54
250	245	1.8	59	59
300	294	2.0	59	64
400	392	2.5	59	74
450	441	2.8	59	80
500	490	3.0	59	85
600	588	3.5	59	96
700	678	4.0	59	108
800	785	4.5	59	118
900	885	5.0	59	125
1000	985	5.0	59	140
1100	1085	5.0	59	152
1200	1185	5.0	59	162
1300	1285	5.0	59
1400	1385	5.0	59
1500	1485	5.0	59
1600	1585	5.5	59
1700	1685	5.5	59
1800	1785	6.0	59
1900	1885	6.0	59
2000	1985	6.0	59
2100	2085	6.0	59
2200	2185	7.0	59

Note:
1: The pipe wall thickness is base on the GB/T19472.2-2017 or specified EN/ISO standards
2: Nominal pressure based on water medium temperature ≤20ºC. It should be adjust when the temperature of the medium change.
3: Colour of the pipe is BLUE ,others should be negotiate.
4: Application:water,Corrosive liquid,pulp.
LANGBOONE HDPE double wall corrugated pipe and type-b,type-c pipes can be joined by a variesty of methods includng mechanical joints and a range of thermal fusion procedures,the main methods are Butt Fusion,Electrofuion joint,socket fusion joint,flange adaptor joint and compression joint.
