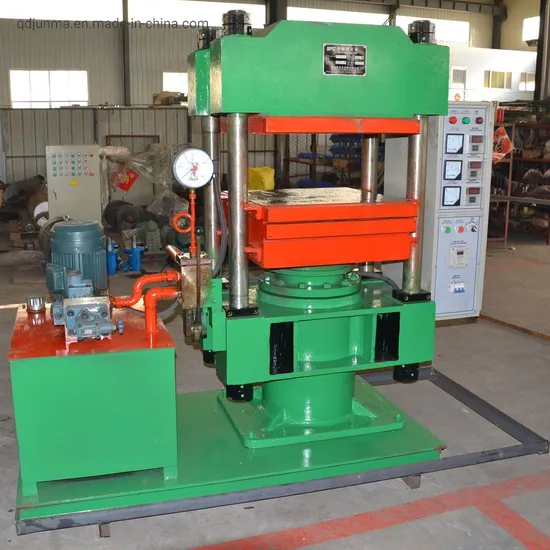

Four Column Electric Plate Rubber Molding Machine with Sfc Brand

Product Description

100 Tons Pressure Plate Vulcanizing Press, Plate Vulcanizing Machine, Vulcanizing Press
We will give you an additional set of seals, two heating pipes(for standby).
Our machines use wooden box pakaging,Transportation will be more safe.
Character:
This Vulcanizing machine is used for all kinds of vulcanizing mould, rubber and plastic mould products and non-mould products.
Being a column structure and downward pressing type, the heating plate opens by the self-weight of the heating plate, platform and plunger. The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure.
This engine base is combined together with the cylinder and base frame, which is made of ductile iron to increase the cylinder intensity and a brad ability. The cylinder is fitted with the sealing washer made of the oil-resisting rubber for the sealing purpose.
By moving the operational handle of the control valve to the two different positions, the heating plate can open and close.
It uses the electric pipe for heating, thus makes the workshop clean with easy and reliable operation.

Parameter /Type	XLB240× 240× 2	XLB350× 350× 2	XLB400× 400× 2	XLB500× 500× 2	XLB600× 600× 2/4	XLB700 × 700× 2	XLB750 × 850× 2/4	XLB900 × 900× 2Q
Total Pressure (MN)	0.15	0.25	0.5	0.63	1.00	1.20	1.60	2.00
Plate Distance (mm)	125	125	125	125	125	125	200	300
Working Layer NO.	2	2	2	2	2-4	2	2-4	2
Unit Area Pressure of Hot Plate (Mpa)	2.60	2.04	3.13	2.52	2.77	2.45	2.51	2.47
Plunger Stroke (mm)	250	250	250	250	250/400	250	400	400
Heating Mode	Electric	Electric	Electric/ Stream	Electric/ Stream	Electric/ Stream	Stream	Electric/ Stream	Stream
Motor Power (kw)	2.2	2.2	2.2	2.2	2.2	2.2	3	5.5
Size: (L× W× H) (mm)	1200× 350 × 1300	1400× 480 × 1380	1600× 500 × 1480	1750× 600 × 1540	1880× 720 × 1680	2000× 850 × 1750	2250× 1200 × 2200	1400× 900 × 2400 (Mainframe)

1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.
2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.
3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.
4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.
If you come to our factory, we can show the user around us.
5. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao liuting airport. We will pick up you at the airport.
