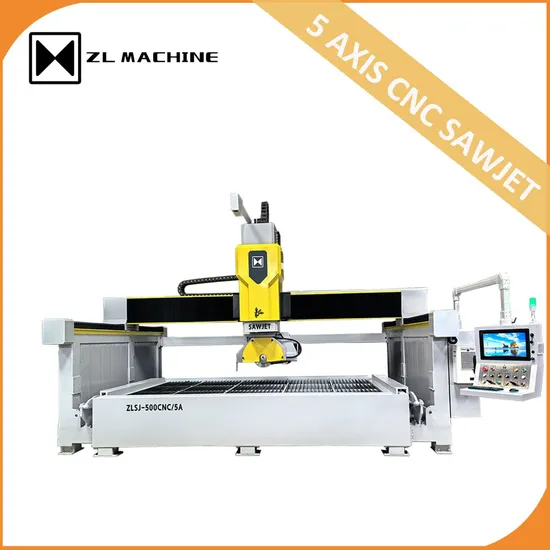

Zlsj-500CNC/5A 5-Axis Sawjet Waterjet with CNC System

Product Description

Product Parameters

Model	ZLSJ-425CNC/5A
Remarks:standard configuration	Table can flip to 85 degree. Water tank and machine chassis are hot-dip galvanized. Electric control box is sealed and equipped with an industrial air conditioner
Max. Saw blade cutting size (mm)	L3500 xW2300 xT90
Max. water jet cutting size (mm)	L3500 xW2000 xT60
Work schedule (mm)	X:3660*Y:2640* Z:370
Blade diameter (mm)	400mm
Cutting disc flange diameter (mm)	50mm
Saw blade motor power (kw)	22(Self-developed five-axis specialized permanent magnet main motor with Frequency)
Saw blade speed (r/min)	0-4000
Waterjet motor power (kw)	37
Total power (kw)	69
Dimensions (mm)	5800 x 3950 x3960
Dimension With Front Sliding Door(Optional) (mm)	6250 x 4930 x3960
Water consumption (m³/h)	3
Air pressure required (Bar)	6
Total weight (Kg)	9100
FOB Price	Negotiable
Option:4 pieces of Front sliding doors	+$2,000

Product Description
5 Axis CNC Waterjet can not only perform efficient Line cutting by Blade Saw, but also can process various curves and small angles by Water jet. It can process stones with high hardness , such as sintered stone, porcelain, ceramic, etc. Making it easy for stone chamfering, basin hole and internal angles processing. The processing method of this machine is flexible and convenient, with a high degree of automation and simple operation. It is currently the most advanced stone processing machine in the stone industry.

Product Features
1. WIth high voltage system

Power	motor 37KW
Oil pump discharge capacity	80ML/R
Flow	3.7L/min
Nozzle	0.33mm
Rated pressure	450Mpa/Psi
Working pressure	10-380Mpa/Psi
Boost ratio	20:1
Inner hole size of sand tube	1.02 mm
Max. sand qty	0-350g/min
Max. stroke	50times/min
power	220V

2. With Automatic Sand-feeding system

Capcity:100 KL Working Pressure:0.2-0.3MPa This system provides a sand storage function for waterjet cutting machine,automatically transferring abrasive to the sand pan, which is easy to operate and can improve the automation level of the equipment and reduce the labor intensity of operators. The 100-liter volume ensures the required amount of sand for cutting continuously for 200 to 300 minutes.

3. With cooling tower

Diameter: 800mm Height: 1500mm Cooling Capacity: 3 m3 In order to effectively control the oil volume, an economical and practical cooling tower is used for cooling. The cooling tower system can effectively control the temperature rise of the oil temperature during the operation of the high-pressure system, thereby extending the service life of the sealing box and high-pressure parts, and at the same time reducing the waste of water.

4. With an industrial camera

This machine is equipped with an industrial camera to catch an image of the plates on the workbench. Operators can place the drawing design on the plates and program on it.

5. With a tool setting Gauge to automatically measure the diameter of the saw blade, and

This machine is equipped with a tool setting Gauge to automatically measure the diameter of the saw blade, and a thickness measuring Probe to measure the thickness of the stone.

6. With a thickness measuring Probe

With a thickness measuring Probe to measure the thickness of the stone.

7. About Machine System

This machine is equipped with high-end RTCP five-axis CNC controller + industrial touchscreen computer + smart cutting software, and is driven by bus servo. The system has built-in convetional shape library and countertop templates library, supporting data size input. Operators can also import DXF format drawing file or design drawings by collection point coordinate drawing function. The operation of this machine is simple and easy to learn. It can access the Internet through wired network, WiFi or mobile phone wireless sharing. The system is easy to get updated, Zhongli Machinery can assist operators to solve operationa questions and troubleshoot through remote linking .

Applications

Packaging & Shipping

Company Profile








Certifications
ZL Machine was founded in 1993, and specializes in stone machine manufacture.
After more than 30 years' Development, we have become one of the most competitive enterprises in China. We have many Patents and have won the honors of "China Top Ten Enterprises (Stone Machinery)", "China AAA Grade Enterprise for Credit&Service (Stone Machinery)", "China Competitive Enterprises (Stone Machinery)", etc. And we have gained the quality certification of ISO9001, ISO2000, China Occupational Health and Safety, CE, etc.


FAQ Q: Can you make Sample production according to my requirement?
A: Of Course. You can send us the design Drawing, we'll produce a sample and take a video for you.
Q: Where is your factory located ? How can I visit it ?
A: Our factory is located in Taizhou city,Zhejiang province,China. After you reach local airport or high-way Station, we will pick you up.
Q: What is your MOQ of your machine?
A: Our MOQ is 1 set.
Q: How long is the production time?
A: It generally takes 30 days
Q: This is the first time I buy the machine, is it easy to operate?
A: This Machine is easy-operated even for new beginners, and we will provide the operation manual&video. We also provide free online service.
