Torch SMT Solder Paste Stencil Printer for PCB Printing Machine
| US$2,380.00-2,690.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
T1000
Style
Screen-process Printing Press
Structure
Flat-bed cylinder press
Color & Page
Double Faced Single Color
Application
printed Circuit
Print Interface
No
System Supported
No
Accuracy
0.03mm
Weight
20kg
Ideal Printing Speed
500PCS/Min
Max PCB Size
300*400mm
Max Stencil Size
350*450mm
Transport Package
Plywood Case
Specification
400*500mm
Trademark
TORCH
Origin
Beijing, China
HS Code
8443198000
Production Capacity
100 Sets/Year
Packaging & Delivery
Package Size
72.00cm * 67.00cm * 55.00cm
Package Gross Weight
56.000kg
Product Description

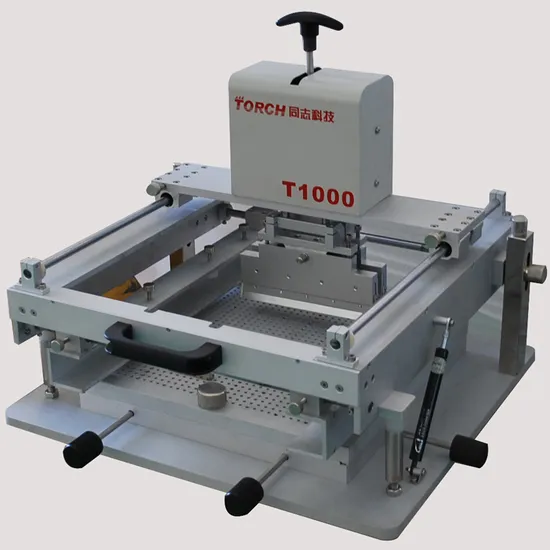

TORCH SMT Solder Paste Stencil Printer for PCB Printing MachineManual Stencil Printer T1000 provides fine X, Y, Z, and θ Adjustments for exact stencil-to-board alignment resulting in precise, fine pitch printing of solder paste.
Dual size of PCB printer, magnetism thimble support and fix PCB.
Dual squeegee runs on the double parallel guiderail, they can UPS and downs individually to realize the printing process of forward -> backward, backward->forward.
Dual squeegee for clean and convenient application of solder paste
Stencil lift just by press the button of air handspike
High precision linear guide assures smooth manual squeegee stroke with its unique adjustable angle-of-attack for precise single or dual direction printing
Fine X, Y, Z, and θ Adjustments for exact stencil-to-board alignment
Double switch button operation to complete the two-time printing process, east to operate.
| Maximum print area | (300*400mm) |
| Adjusts to various size frames: | Frame holder accepts any size stencil frame up to (400*500m) |
| Adjustable dual squeegee pressure/speed: | Manual |
| Linear squeegee guide: | Yes |
| Squeegee material | stainless steel (other material can be ordered) |
| Adjusting accuracy | < 0.01mm |
| Repeat accuracy | < 0.03mm. |
| Ideal printing speed | 500pcs/min |
| Accessories: | Thimbles 8 Support shelves 6 Inner hexangular spanners 1 Nuts and bolts 6 |
