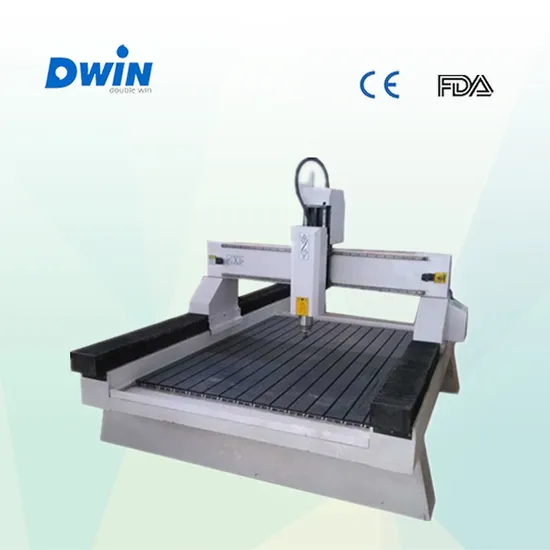

Dw1325 3kw/4.5kw/5.5kw Marble Cutting Engraving CNC Router

Product Description

DW1325 3KW/4.5KW/5.5KW marble cutting
engraving cnc router
Machine Features :
1.Three axises adopt import linear orbit, two line sliding track,heavy loading, stable working, high precision, long lifetime .
2.Whole seamless weld steel structure, not easy to distort , the table back lining is armor plate, good rigidity, the machine can bear 1MT weight at least.
3.Constant power spindle and motor,hightly cutting capability ,high efficiency.
4.Well compatibility, compatible sofetware CAD/CAM, such as Type 3, Artcam,Castmate,Wentai,Coredraw.
5.Double direction cutters cooling system can prolong the lifetime of using.
6.High flexility, uneasy distorted cable and imported electronic components guarantee the stablitity of operating the machines.
Applicable materials :
This series of models mainly used for heavy weight of the tile, bluestone,marble, granite, white marble, sandstone,such as a stone sculpture processing, category carved glass-cutting and engraving melting material.
Machine Details :

X,Y Working area :	1300mmx2500mm
Z Working area:	200mm
Processing precision :	0.05mm
Reposition precision:	0.02mm
Table structure :	aluminium
X,Y,Z structure :	X,Y,Z ball screw
Command:	G CODE
Machine power:	2KW
Max processing speed :	6000mm/min
Max speed :	8000mm/min
Working voltage:	AC380V/50Hz
Spindle power:	5.5KW
Spindle rotating speed :	0-24000rpm/min
Drive motor :	leadshine stepper motor
Operation system :	PCI CARD

Samples :
Factory :
Warranty :
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English verson manual and operation video CD disc.
Dear customer, this just a normal model ,if you have any special application or materials,
please don't hesitate to tell us ,we can manufacture as your request and give you a
satisfying result .Besides,we have many kinds of the machine fittings ,if you need help,
please contact us ,we are willing to help you!
